Th2827A Precision Lcr Tester with Frequency Range 20Hz-300kHz Capacitance Meter
Changzhou Chuangkai Electronic Co., Ltd.- Function：Measurement of Lcr
- Display：800xrgbx480 7-Inch TFT LCD Display
Base Info
- Model NO.：TH2827A
- Usage：Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
- Type：Lcr Meter
- Environment：Room Temperature
- Warranty：With Warranty
- Power Source：DC 100V-300V
- Weight：0-10Kg
- Installation：Direct Connected
- Customized：Customized
- Equivalent Circuit：Auto, Hold
- Equivalent Mode：Serial, Parallel
- Power Supply：Voltage: 99V AC-121VAC,198V-242VAC
- Calibration Function：Open,Short Calibration with Full Frequency or DOT
- Frequency：20Hz-300kHz
- Trigger Mode：Internal, Manual, External, Bus
- Product Name：Th2827A Precision Lcr Tester with Frequency Range
- Transport Package：Carton
- Specification：50x46x26cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：2000 Sets Per Month
- Package size per unit product：50.00cm * 46.00cm * 26.00cm
- Gross weight per unit product：10.000kg
- Lead Time：10 days (1 - 1 set)
Description

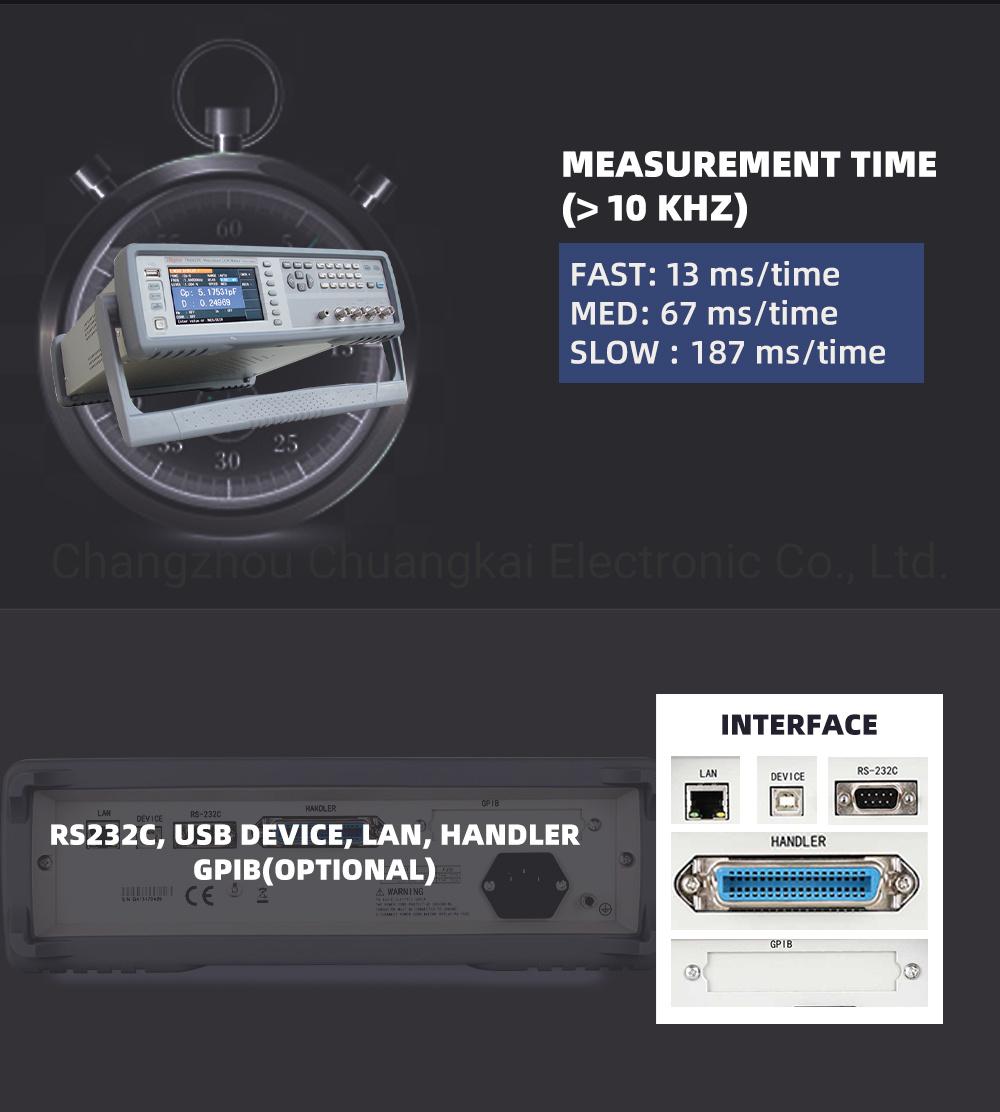

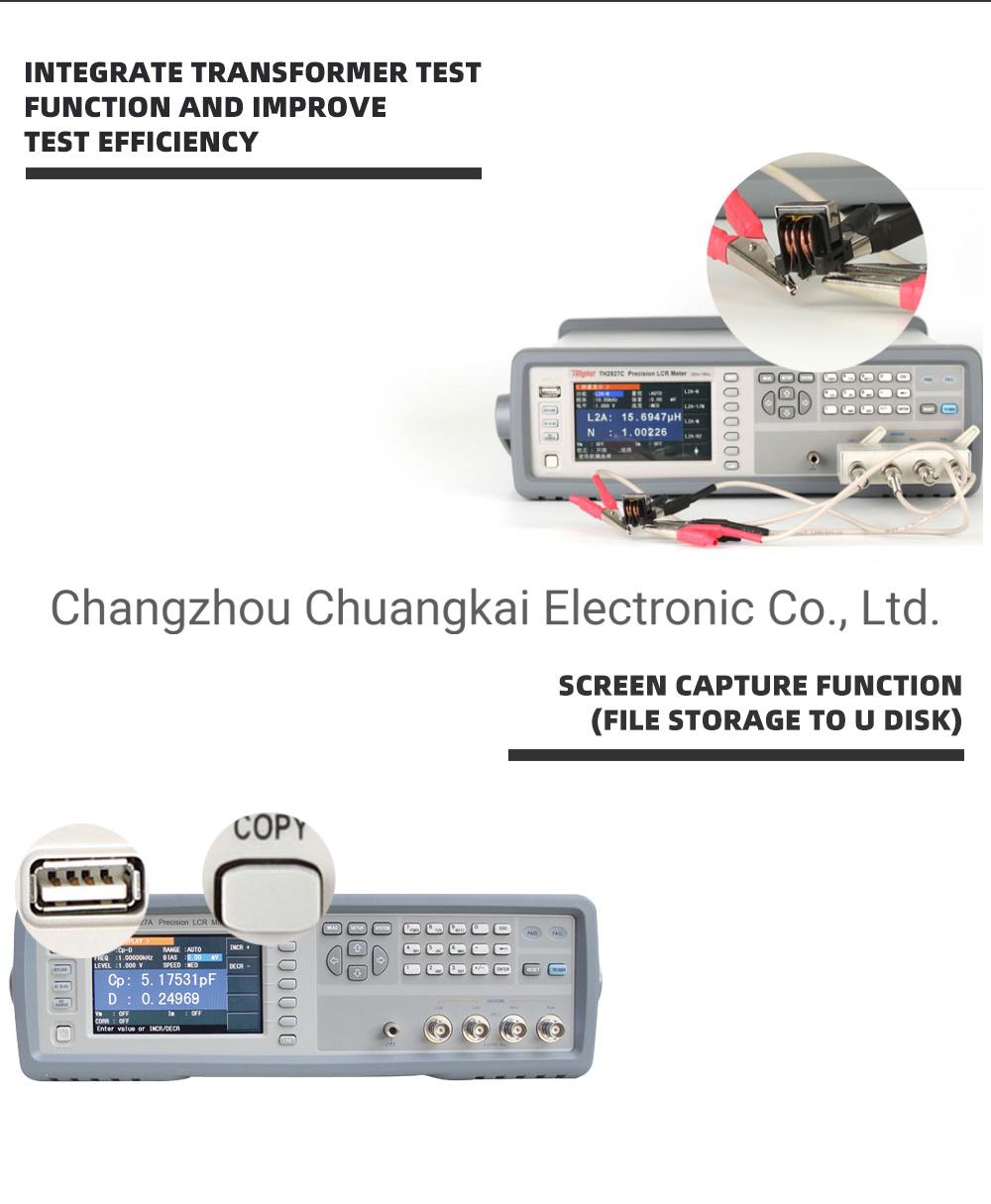

Overview

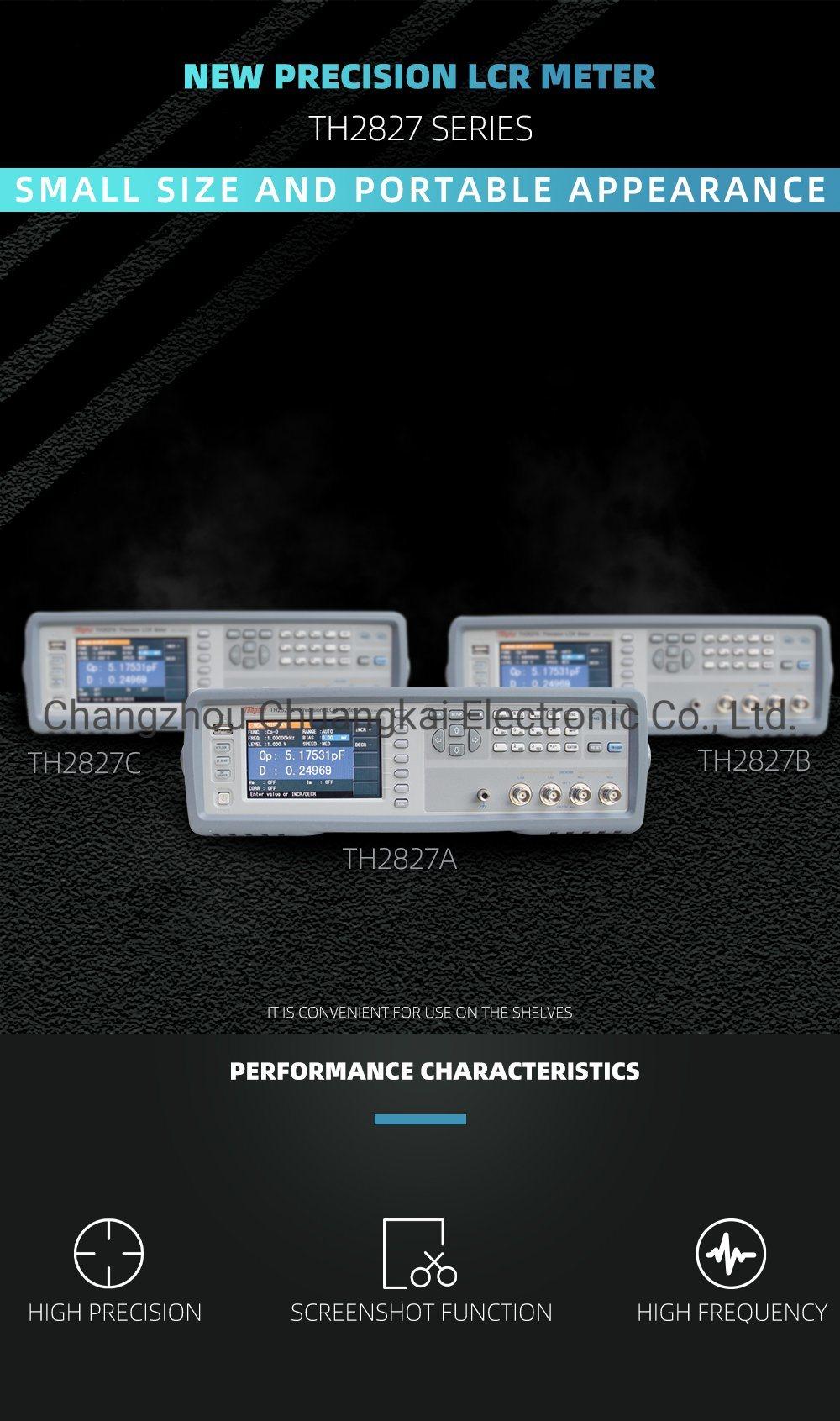

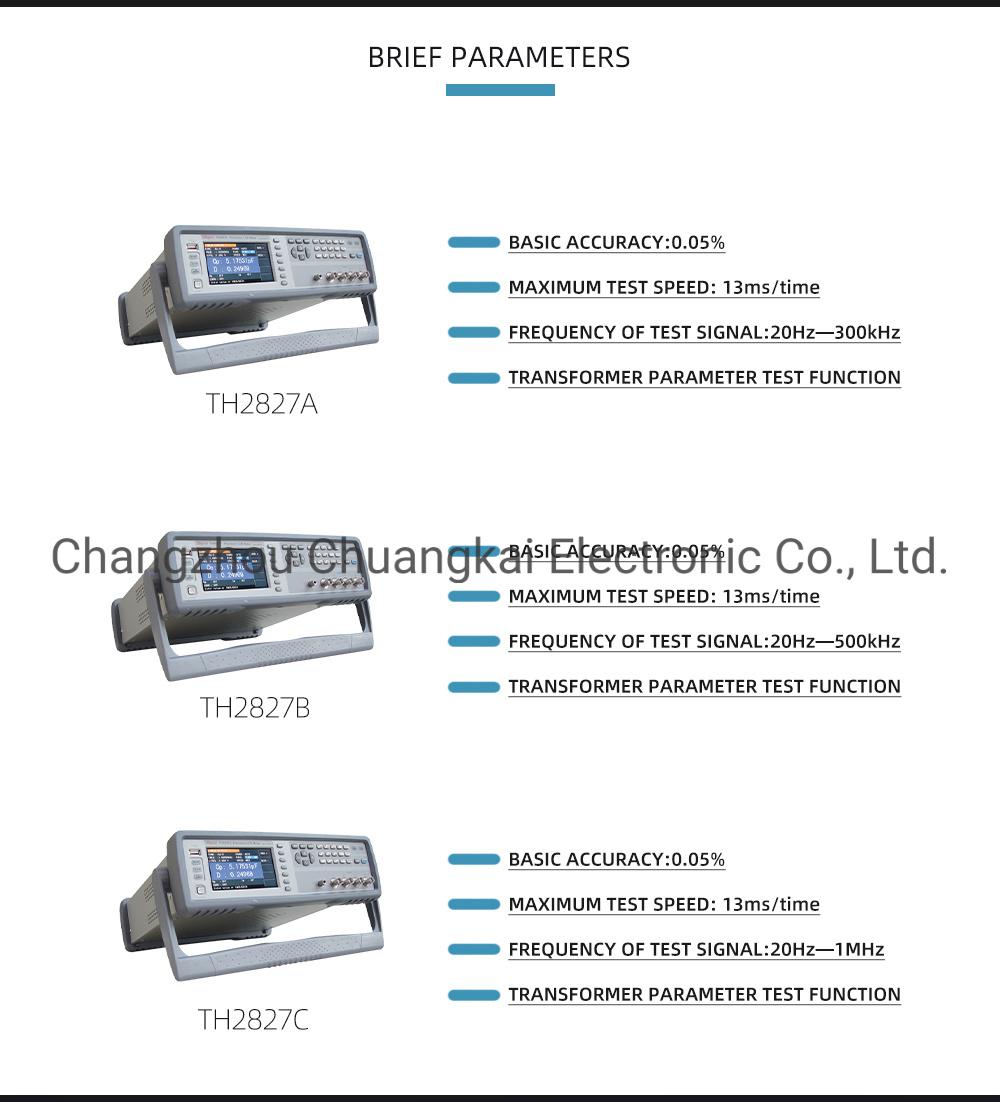

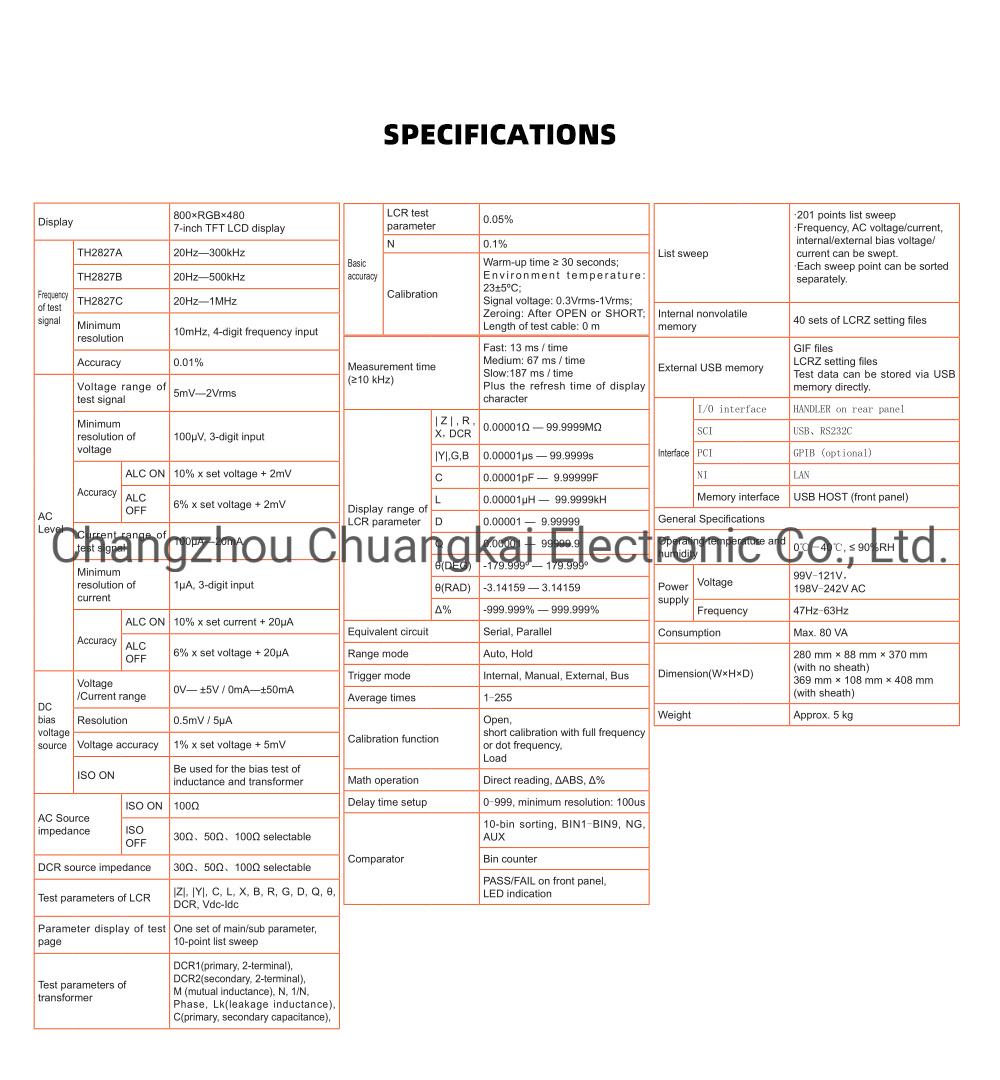

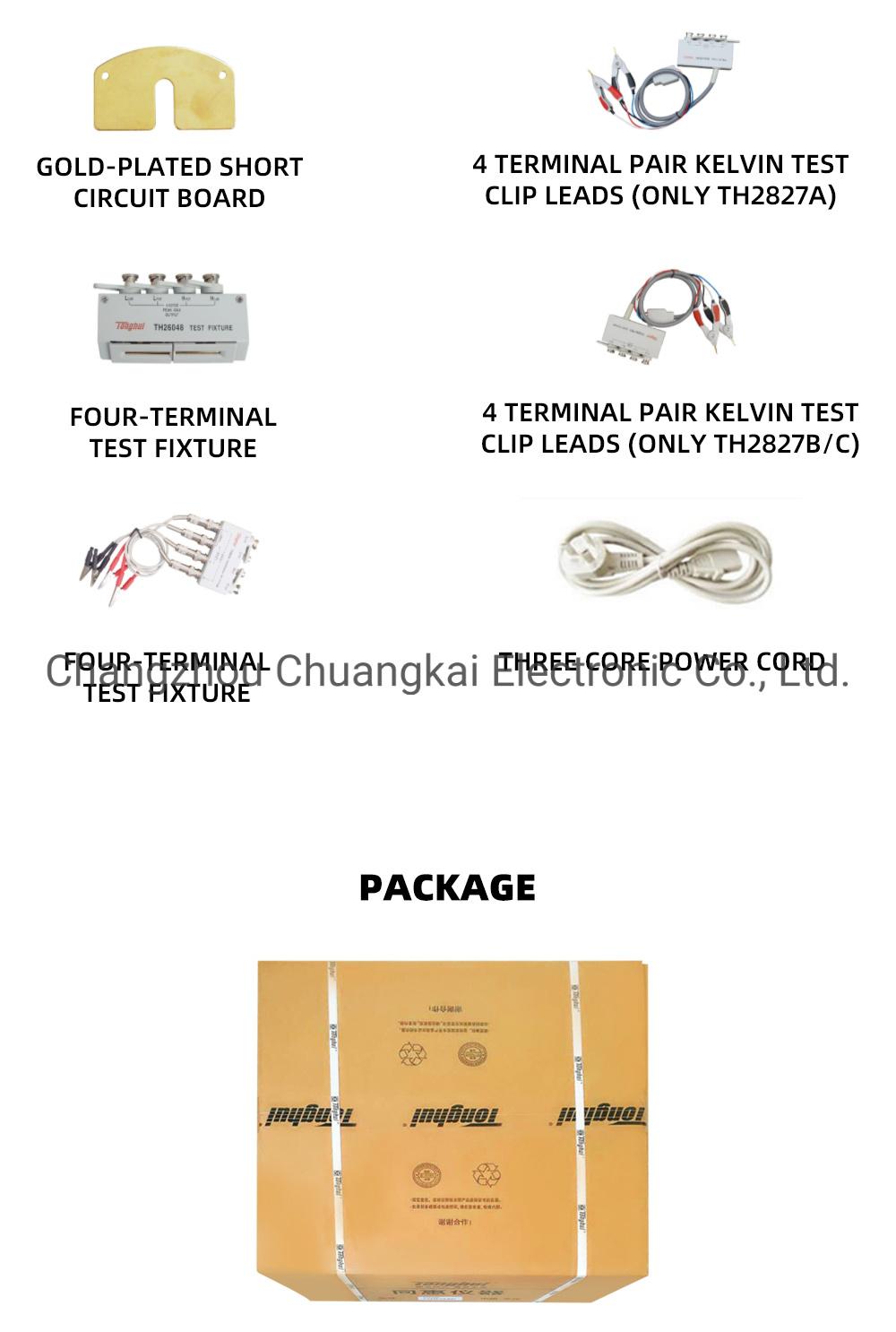

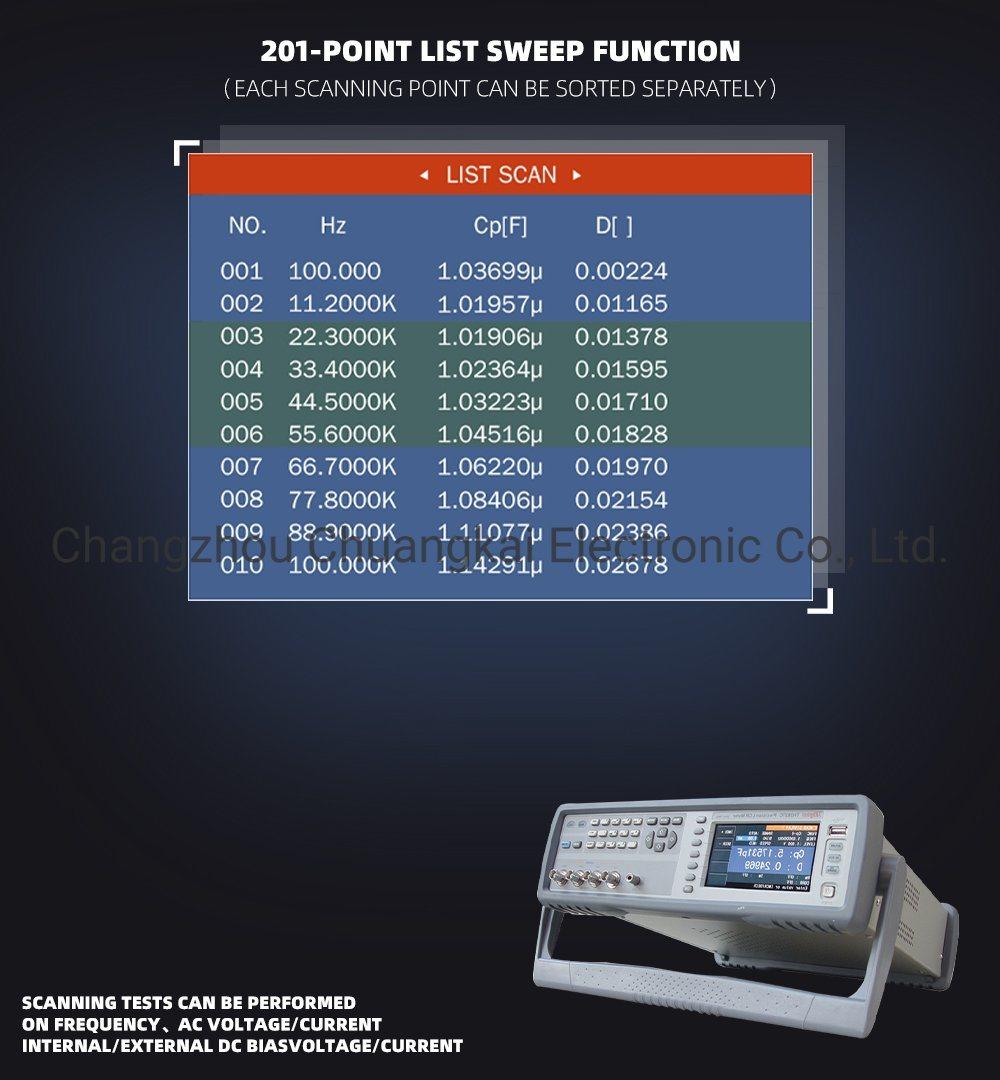

Product DescriptionTH2827A Frequency of test signal Frequency 20Hz-300kHz Minimum resolution 10mHz, 4-digit frequency input Accuracy 0.01% Display 800×RGB×480 7-inch TFT LCD display ACLevel Voltage range of test signal 5mV-2Vrms Minimumresolution of voltage 100μV, 3-digit input Accuracy ALC ON 10% x set voltage + 2mV ALCOFF 6% x set voltage + 2mV Current range of test signal 100μA-20mA Minimumresolution of current 1μA, 3-digit input Accuracy ALC ON 10% x set current + 20μA ALCOFF 6% x set voltage + 20μA DCbias voltage source Voltage/Current range 0V- ±5V / 0mA-±50mA Resolution 0.5mV / 5μA Voltage accuracy 1% x set voltage + 5mV ISO ON Be used for the bias test of inductance and transformer AC Source impedance ISO ON 100Ω ISOOFF 30Ω,50Ω,100Ω selectable DCR source impedance 30Ω,50Ω,100Ω selectable Test parameters of LCR |Z|,Y|, C, L, X, B, R, G, D, Q, θ,DCR, Vdc-Idc Parameter display of test page One set of main/sub parameter,10-point list sweep Test parameters of transformer DCR1(primary, 2-terminal),DCR2(secondary, 2-terminal),M (mutual inductance), N, 1/N,Phase, Lk (leakage inductance),C(primary, secondary capacitance), Basic accuracy LCR test parameter 0.05% N 0.1% Calibration Warm-up time ≥ 30 seconds; Environment temperature:23±5ºC; Signal voltage: 0.3Vrms-1Vrms;Zeroing: After OPEN or SHORT;Length of test cable: 0 m Measurement time(≥10 kHz) Fast: 13 ms / timeMedium: 67 ms / timeSlow:187 ms / timePlus the refresh time of display character Display range ofLCR parameter Z, R , X,DCR 0.00001Ω - 99.9999MΩ |Y|,G,B 0.00001μs - 99.9999s C 0.00001pF - 9.99999F L 0.00001μH - 99.9999kH D 0.00001 - 9.99999 Q 0.00001 - 99999.9 θ(DEG) -179.999º - 179.999º θ(RAD) -3.14159 - 3.14159 Δ% -999.999% - 999.999% Equivalent circuit Serial, Parallel Range mode Auto, Hold Trigger mode Internal, Manual, External, Bus Average times 1-255 Calibration function Open,short calibration with full frequency or dot frequency,Load Math operation Direct reading, ΔABS, Δ% Delay time setup 0-999, minimum resolution: 100us Comparator 10-bin sorting, BIN1-BIN9, NG,AUX Bin counter PASS/FAIL on front panel,LED indication List sweep ·201 points list sweep·Frequency, AC voltage/current, internal/external bias voltage/ current can be swept.·Each sweep point can be sorted separately. Internal nonvolatilememory 40 sets of LCRZ setting files External USB memory GIF filesLCRZ setting filesTest data can be stored via USB memory directly. Interface I/O interface HANDLER on rear panel SCI USB,RS232C PCI GPIB (optional) NI LAN Memory interface USB HOST (front panel) General Specifications Operating temperature and humidity 0ºC-40ºC, ≤ 90%RH Power supply Voltage 99V-121V,198V-242V AC Frequency 47Hz-63Hz Consumption Max. 80 VA Dimension(W×H×D) 280 mm × 88 mm × 370 mm(with no sheath)369 mm × 108 mm × 408 mm(with sheath) Weight Approx. 5 kg
