• Model NO.：HD-A502-1200
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Motor：AC Frequency Conversion Motor ( Taiwan);
• Capacity (Optional)：2t
• Speed of Compression：10 ± 3 Mm,Min
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Deposit
• Load Resolution：1,10, 000
• Test Space (L*W*H)：1000*1200*1200 Mm
• Dimension (L*W*H)：1795*1000*1820 Mm
• Power：220V, 50Hz
• Standards：ISO2872, ISO2874 and GB4857.4.
• Transport Package：Strong Wooden Case
• Specification：Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets Per Month

Basic Info.

Model NO. HD-A502-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Motor AC Frequency Conversion Motor ( Taiwan); Capacity (Optional) 2t Speed of Compression 10 ± 3 Mm/Min Warranty Period One Year Delivery Time 15 Days After Receive The Deposit Load Resolution 1/10, 000 Test Space (L*W*H) 1000*1200*1200 Mm Dimension (L*W*H) 1795*1000*1820 Mm Power 220V/ 50Hz Standards ISO2872, ISO2874 and GB4857.4. Transport Package Strong Wooden Case Specification Tappi-T804, JIS-20212, GB4857.3.4, ASTM-D642 Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets Per Month

Product Description

Electronic Corrugated Carton Compression Testing Machine


The usage:
Corrugated Carton Compression Testing Machine is used for measuring the pressure strength of boxes,cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.


The Main Parameters of Corrugated Carton Compression Testing Machine:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Item	Description
Max. Force	2000 kg (20KN)
Load cell	1 load cell for highest accuracy
Control system	Windows 7, RS-232 interface
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Load cell Resolution	1/250,000
Load Precision	within ±0.25%
Parallelism of Platens	Parallel within ±2.5mm
Effective test area	1000×1200×1000mm
Test speed	10 ±3mm/min (0.01~200mm/min adjustable)
Software	TM 2101
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Standards:
ISO2872, ISO2874 and GB4857.4.

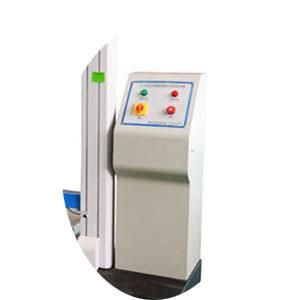

Corrugated Carton Compression Testing Machine view:





Thanks Letter from one of Our Customer:


The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    24 Hours online service for your consult.
    Help choose right model,and a series  of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
