Vacuum Glove Box with Airlock and Vacuum Flange & Gauge
Zhengzhou CY Scientific Instrument Co., Ltd.- Power Source:AC220V
- Shipping Weight:240 Kg (520 Lbs)
- Transport Package:Wooden Case
- Specification:50" x 40" x 37"
- Trademark:CYKY
- Origin:Zhengzhou, China
Base Info
- Model NO.:CY-VGB-3
- Production Capacity:500 Pieces,Month
Description
Basic Info.
Model NO. CY-VGB-3 Production Capacity 500 Pieces/MonthProduct Description
Descriptions of vacuum glove box:

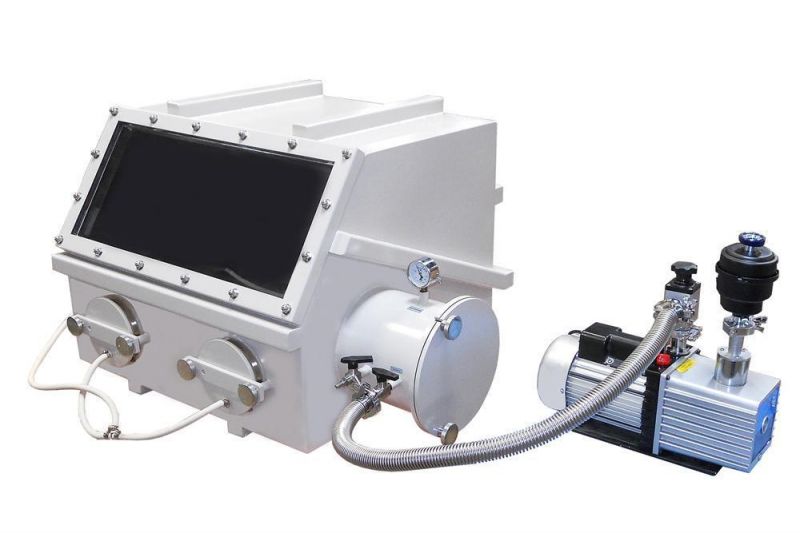

CY-VGB-3 is a middle size heavy duty stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.
Technical Parameters:
Glove Box Chamber |
|
Airlock Chamber |
|
Vacuum gauge and valves |
|
Leakage Rate in Glove Box Chamber | < 6 Torr/hour |
Gloves |
|
Power Extension |
|
Vacuum pump and fittings (Optional) |
|
Warranty |
|
Shipping Dimensions | 50" x 40" x 37" |
Shipping Weight | 240 kg (520 lbs) |
Application Notes:
- Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box.
- Otherwise, liquid vapor may condense and corrode the steel chamber and purification pipeline.
- The H2O & O2 removing rate is largely dependent on the type of purging gas used. For faster chamber purging process,
- Nitrogen is preferred over Argon due to its lighter mass.
- By closing the vacuum flange, the glove box can be vacuumed by mechanical pump up to 0.5 torrs before filling inert gas,
- (moisture can be below 180 ppm and oxygen below 200 ppm). Then you can save at least 1-2 tank of inert gas from purging at each operation
- Please call or email us to get the price and lead time for multi-pins feed through on the glove box if you need to measure the sample inside the chamber,
- CY's technician can provide a solution with no impact on sealing (leaking rate less than 6 torrs/hour) in an affordable price. Please click the picture below to see our perfect customization:
- You may choose humidity and oxygen analyzer below at extra cost to monitor gas humidity and oxygen content inside the glove box
- The humidity inside the glove box can be controlled by using either manual purging system or Gas Purification System. Please see our experimental results below:
- Humidity Range 4~5% Rh: Can be achieved after manually purging the system for 6 cycles by using N2 gas supply tank
- Humidity Range < 2% Rh: Please use either gas supply with 99.9999% gas purity with moisture filter or a Recirculating Gas Purification System for purging
Note: For Li-ion battery research, please order CY-VGB-5, CY-VGB-6, or CY- VGB-7 to achieve humidity < 10ppm

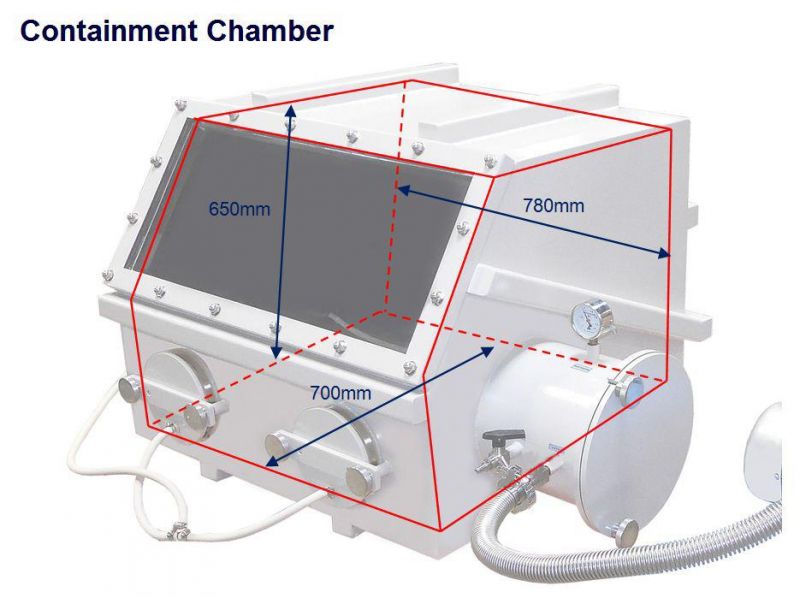

Glove box chamber size:

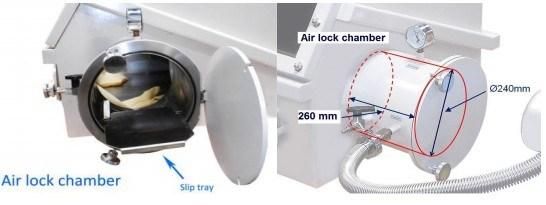

Air lock and chamber tray:

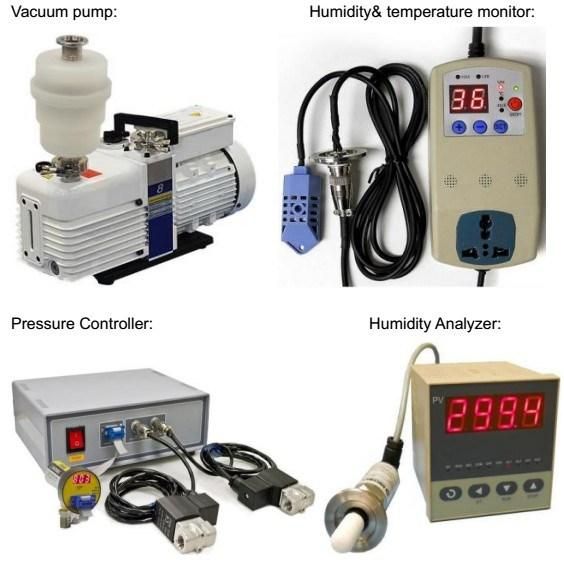

Optional equipment for your choice:
CE certification of laboratory Vacuum Glove Box:
Contact Information:
