• Model NO.：DH-DIN
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-DIN Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

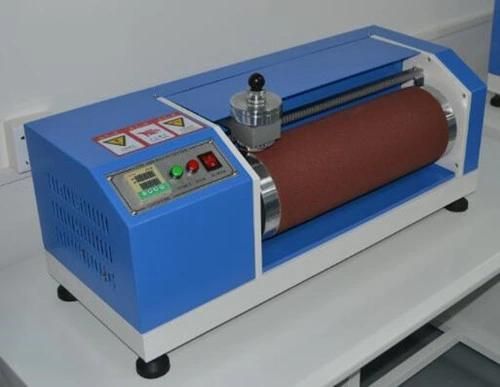

DH-DIN Electronic ISO4649 Shoe Soles DIN Abrasion Tester, DIN Abrasion Testing Method, Abrasimeter Por Plastic



Summary

The main function of Din Abrasion Tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.



Main Functions


Din Abrasion Tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.



Standards

DIN-53516,ISO-4649,GB/T9867-88



Applicable Industry

Din Abrasion Tester applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.



Specifications


Roller diameter:φ150mm

Roller length:460mm

Rotate speed:40rpm

Abrasion stroke:40mm(20mm)

Abrasion speed:0.32m/sec

Dip angle:3°

Specimen diameter:φ16 mm

Thickness:6~15 mm

Testing load:5N,10N

Clamp horizontal displacement:4.2mm/roll each lap

Standard accessories:one set of sampler,two pieces of abrasive

paper(VSM60#,41*47.6CM),three pieces of standard gel(φ16*8mm),one piece of power cord.




Packaging & Shipping





Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.


Certification
