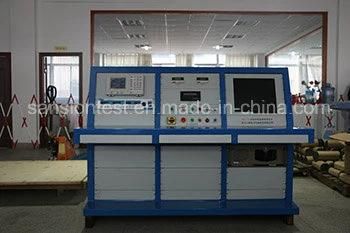

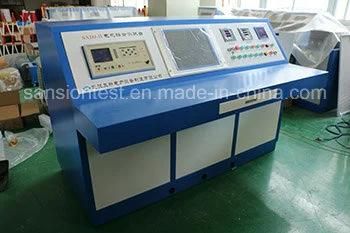

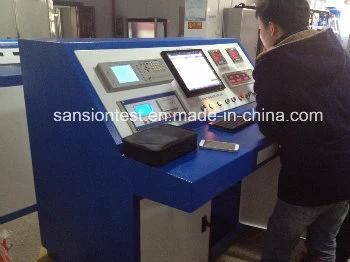

Variable Frequency AC Motor Test Bench for Electrical Workshop
Sansion Power Electric Co., Ltd.- Max Diameter of Workpiece:900mm
- Mass Scope of Workpiece:<900kg
- Type:Universal Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Mechanical Load
Base Info
- Model NO.:SXDJ
- Loading Method:Static Load
- Display:Digital
- Control:Manual,Auto at Customized
- Weight:0-100Kg
- Power Source:at Customized
- Control Mode:Manual,Computer
- Transport Package:Plywood Case
- Specification:ISO9001 SGS
- Trademark:Sansion
- Origin:Wuhan, China
- HS Code:9030339000
- Production Capacity:100 Units
Description
Basic Info.
Model NO. SXDJ Loading Method Static Load Display Digital Control Manual/Auto at Customized Weight 0-100Kg Power Source at Customized Control Mode Manual/Computer Transport Package Plywood Case Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030339000 Production Capacity 100 UnitsProduct Description
General Information:The SXDJ is applied for ex-work and after maintaining testing on AC motor, DC motor and variable frequency motor with which capacity of 0-10000KW and voltage degree 0-10KV.
The system is integrated with industry PC, power source system, controlling system, sensor, signal adjusting module, data sampling hardware & software, numerical computing software, graphical display & operation software, test report generating, waveform & measuring results storage and printing software.Features:
√ Fully English interface, auto printing, easy to operate.
√ Motor AC hipot testing part is portably designed, easy to move.
√ For HV motor of capacity 630KW-9000KW, voltage 6KV-10000V, it is needed to be equipped with 10KV booster, 10KV HV CT/PT and etc.
Specification:
Main Testing Items:
√ Electric Strength
√ Measuring condition
√ Insulation Resistance
√ Cold Resistance
√ Low Starting Current
√ Locked-rotor Current
√ No-Load Power
√ No-Load Current
√ Leakage Current
√ Turn-To-Turn Insulation
Please contact us Sansion Power for further information. Thank you!
