• Model NO.：GD-265E
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. GD-265E Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Transport Package Wooden Case Specification 620mm*460mm*355mm Trademark GOLD Origin China Production Capacity 200units/Month

Product Description

ASTM D445 Digital Petroleum Products Oil Kinematic Viscosity Meter



 Introduction:


The instrument is designed and made as per the national standard of People's Republic of China GB/T1841 Standard Test Method for Viscosity

of Polyolefin Resin Solution. It is used to determine the viscosity of decahydronaphthalene solution of polythene and polypropylene at the stipulated temperature.

The instrument can also be used to determine the viscosity of asphalt at the stipulated temperature as per the industrial standard of People's Republic

of China T0619 Asphalt Kinematic Viscosity Test (Capillary Viscometer Method).

I. Main technical features


1. High precision digital temperature controller. Electric stirring motor.

2. High temperature resistant glass bath. Double layer structure.

3. Desktop structure. All-in-one design.

4. The maximum heating temperature is 135ºC.


II. Main technical specifications

1. Power supply: AC 220 V±10%, 50 Hz

2. Heating power: Two grades; 1000 W (Auxiliary heating) + 600 W (Temperature control)

3. Temperature range: Ambient to 180.0ºC

4. Temperature control accuracy: ±0.1ºC

5. Mercury thermometer: Rod type; scale division is 0.1 ºC; Temperature range is 100ºC~150ºC;

6. Bath capacity: about 23 L

7. Sample quantity: You can make determination using 3 capillary viscometers at a time.

8. Stirring motor

(1) Power: 6W

(2) Speed: 1200 RPM

9. Ambient temperature: -10ºC~+35ºC

10. Relative humidity: <85%

11. Temperature sensor: Platinum resistance; Pt100

12. Maximum power consumption: 1800 W

13. Capillary viscometer: One group of Cannon-Fenske Reverse Flow capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600

 (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively).

14. Overall dimension:    530mm×400mm×670mm(Bath is included)

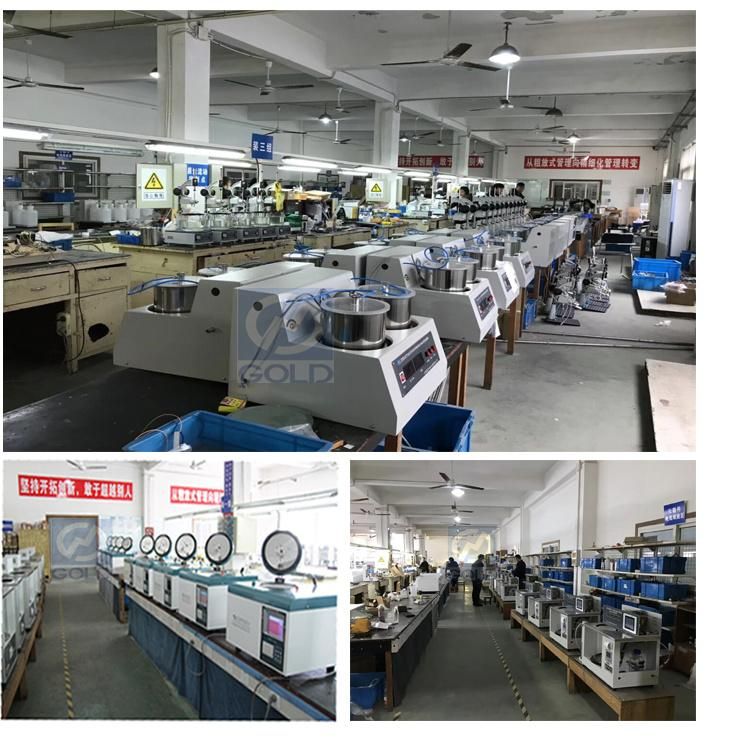

Workshop
