TYJJ-2 Laser Height and Stagger Gauge

TYJJ-2 model Laser height and stagger gauge is a newly developed intelligent OHL (Over Head Line) measuring instrument developed by our company. The system consists of laser ranging, grating angular, track gauge, and horizontal measuring modules. Integrate the laser non-cooperative target ranging technology, grating angular technology two-dimensional coordinate measuring system and sensor information fusion technology. It provides a perfect solution for the railway department to establish a digital management platform for OHL parameters, erection of the OHL and "Maintenance" in the field of electrified railway.

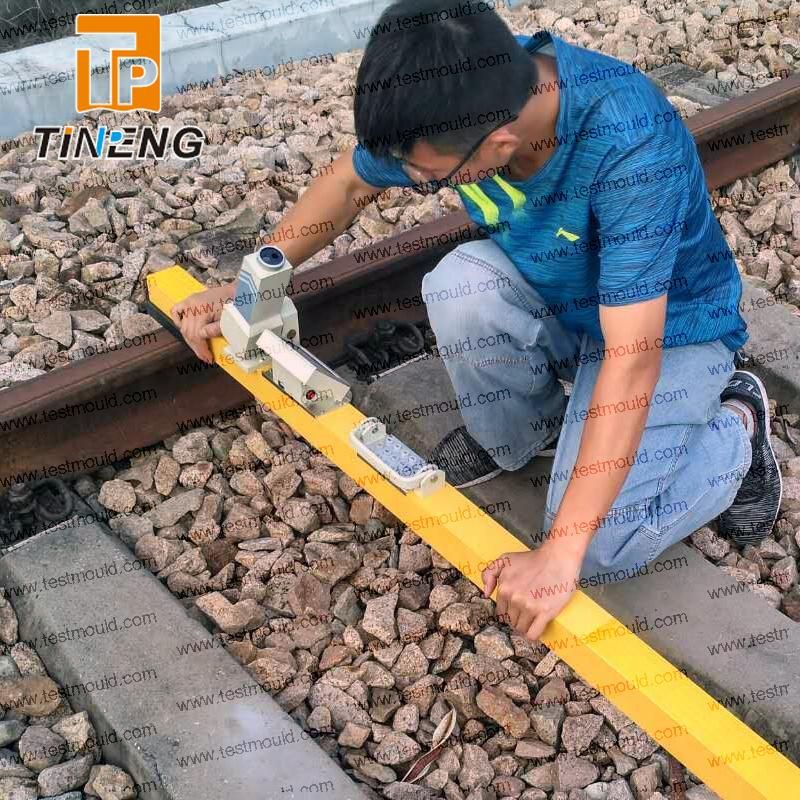

The TYJJ-2 Laser height and stagger gauge is an all-in-one machine, and the measuring host part is connected with the measuring frame. The host functions include: laser measurement, vertical angle measurement; the measurement frame is a horizontal bar placed horizontally between the rails, mainly supporting the measurement host, measuring the gauge, measuring the horizontal tilt angle and so on.

You can observe all measurement data from the touch screen and also input values. The test result can be exported to .txt format via USB.

(1) Working condition
Working temperature: -20~+50ºC
Related humidity: ≤90%RH
Altitude: ≤2500m
(2) Technical specification


1	Cable Height	Range 3000~15000mm Accuracy ±3mm
2	Cable stagger	Range ±3000mm Accuracy ±4mm
3	Cross center	Accuracy ±3mm
4	Elevation difference at 500mm	Accuracy ±4mm
5	Track gauge	Range 1410~1470mm Accuracy ±0.5mm
6	Super-Elevation (horizontal)	Range ±200mm Accuracy ±0.5mm
7	Red line	Accuracy ±4mm
8	Mast gauge	Accuracy ±4mm
9	Elevation difference between catenary and contact wire	Accuracy ±4mm
10	Distance between railway transmission lines and contact wire	Accuracy ±4mm
11	Overlap section	Accuracy ±4mm
12	Registration arm slope	1:n (n accurate to 0.1)
13	Free measurement	Horizontal accuracy ±4mm Vertical accuracy ±3mm
14	Mast span on both sides of the track	Range 35000mm Accuracy ±5mm

(3) Electrical parameters
Voltage: 8.4V
Electric current: 430mA
Continuous working time: no less than 12 hours
Laser wavelength: 650nm, safety grade class 2.
(4) Mechanical parameters
Weight: 4.7kg
Dimension: 1620(L) x 160(W) x 175(H)mm
GPS, WIFI functions are optional, should be ordered separately.
