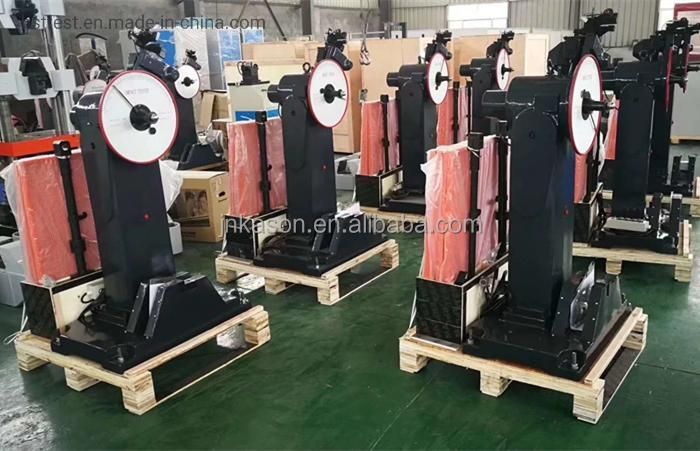

Charpy V-Notch Pendulum Impact Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Standard
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Impact Testing Machine
- Maxcapacity：300j,500j,800j
Base Info
- Model NO.：JBS-300,500,800
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC220V
- Impact Speed：5.2m,S
- Pre-Rising Angle of The Pendulum：150
- Angle Accuracy：0.1
- Specimen Bearer Span：40+0.2mm
- Power Supply：3phs, 380V, 50Hz or 220V, 60Hz
- Transport Package：Standard Export Packing
- Specification：2124 x 600 x 1340mm
- Trademark：HST
- Origin：China
- HS Code：9024101000
- Production Capacity：800 Sets Per Month
Description
Overview
Product Description
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007Product ParametersJBS-500 JBS-800 impact energy 150/300J 250/500J 500/800J The distance between the
pendulum shaft and impact point 750mm 850mm 800mm Impact speed 5.2m/s 5.4 m/s 5.9m/s Pre-rising angle of the pendulum 150° Specimen bearer span 40+0.2mm Round angle of the jaw R1-1.5mm Round angle of impact edge R2-2.5mm,R8±0.05mm Angle accuracy 0.1° Standard specimen dimension 10mm×10(7.5/5)mm×55mm Power supply 3phs, 380V, 50Hz Or 220V,60Hz Dimensions (mm) 2124 x 600 x 1340 2200 ×650 ×1960 2450 x 1200 x 2455
Net Weight (kg) 450 650 2300
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.
5. Configurations:
5.1 Main unit----------1 set
5.2 PendulumCompany Profile
Application
JBS series LCD touching screen display Pendulum impact tester is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007Product Parameters
3. Main Technical Specifications:JBS-300
pendulum shaft and impact point
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.
5. Configurations:
5.1 Main unit----------1 set
5.2 PendulumCompany Profile
