• Model NO.：WDW-200
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Delivery Time：3 Days After Get Payment
• Certiification：Ce ISO
• Extend Configuration：Large Deformation Extensometer
• Load Cell Configuration：One(Max Load), More Load Cells Can Be Added Accord
• Transport Package：Standard Export Packing
• Specification：1000*650*2150mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDW-200 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Computer Control Computer Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position No Delivery Time 3 Days After Get Payment Certiification Ce ISO Extend Configuration Large Deformation Extensometer Load Cell Configuration One(Max Load), More Load Cells Can Be Added Accord Transport Package Standard Export Packing Specification 1000*650*2150mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

200kn High Capacity Electromechanical Universal Testing Machines



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDW-200
Max. Load	200 KN
Structure	Four-column Floor Model (Upper Is Compression And Lower Is Tensile)
Control Method	Computer Automatic Control
Load Accuracy	1 Class
Load Range	2%~100% FS
Resolution	1/300000
Measuring Range Of Deformation	0.2%~100%
Accuracy Indication Of Deformation	≤±0.5%
Disp. Indicating Relative Error	≤±1%
Displacement Resolution	0.04um
Adjusting Range Of Control Rate Of Load	0.005~5%FS/S
Control Precision Of Control Rate Of Load	When rate < 0.05% FS/s, the precision is within ± 2% of setting value; When rate ≥ 0.005%FS/s, the precision is within ± 1% of setting value.
Adjustment Scope Of Deformation Rate	0.005~5%FN/S
Accuracy Of Deformation Rate	Test Speed<0.05%FN/s, within the ±2% of the preset value, Test Speed≥0.05%FN/s, within the ±0.5% of the preset value.
Adjusting Range Of  Displacement Rate	0.05~200mm/min (Can be customized)
Tensile Space	550mm (Can be customized)
Compression Space	550mm (Can be customized)
Effective Spacing	600mm (Can be customized)
Load Cell Configuration	One(Max Load), more load cells can be added according to customer requirement.
Extend Configuration	Large deformation extensometer, high or low temperature test chamber, high temperature oven.
Power Supply	AC220V±10%,50Hz (Can be customized)
Grips	Manual Grip / (Optional: Hydraulic Automatic Grip)
Dimension	1000*650*2150mm
Weight	980 KG

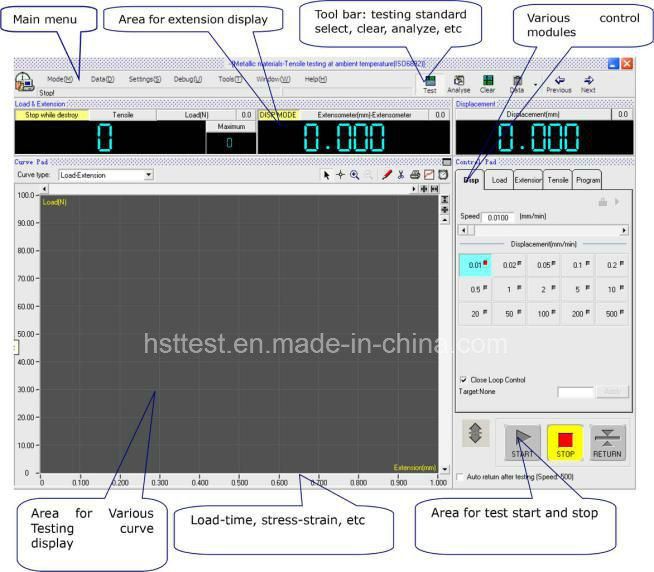

Software Interface:
