• Model NO.：MMW-1
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Friction Torque：2.5nm
• Spindle Speed：1 to 2000 R,Min
• Temperature：More Than 75 Degree Celsius
• Time：10 to 9999s
• Power：220V 50Hz
• Transport Package：Standard Sea Shipping Case
• Trademark：Hensgrand or OEM
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. MMW-1 Control Computer Control Weight 100-500Kg Power Source AC220V Friction Torque 2.5nm Spindle Speed 1 to 2000 R/Min Temperature More Than 75 Degree Celsius Time 10 to 9999s Power 220V 50Hz Transport Package Standard Sea Shipping Case Trademark Hensgrand or OEM Origin Jinan, Shandong HS Code 9031809090 Production Capacity 500 Sets/Month

Product Description

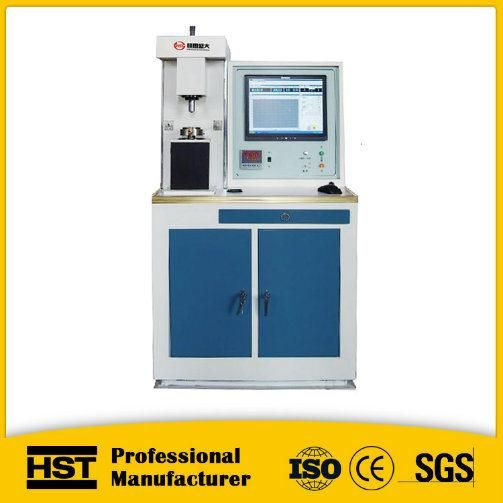

Hot sales Friction Wear Resistance Universal Testing Machine 1KN

1.  Brife Introduction
The tile abrasion testing machine can simulate rolling, sliding and rolling & sliding combined movement under the certain contact pressure to complete point, line and plane simulating tests. It can be used to evaluate the friction and wear performance of lubricant, metal, plastics, coating, rubber, ceramics etc. It can not only content with the needs of traditional petrochemical industry to research, develop and inspect the various kinds of intermediate & high grade hydraulic oil, combustion engine oil and gear oil.  Also it can be tested under dry condition, but also the needs of simulating evaluation to new material development and new technology research.
2. Features
2.1 The tile abrasion testing machine adopts process control principle, and combines industrial control computer with the configuration software technology and internet technology;
2.2 Apply incorporate structure design, integrate embedded industry computer, configuration software,  acquisition module and executor as a whole to control the test process, all test operation can be completed at the main interface of the computer;
2.3 It features flexible configuration control mode, multiple friction couplings, wide speed adjusting range, simulating high temperature circumstances, high automation and easy to use.
3. Parameters

NO.	Item	Specification
1	Load range	10~1000N(stepless)
2	Relative error of load indicating value	±1%
3	Friction torque measuring range	2.5N.m
4	Relative error of friction torque indicating value	±2%
5	Rotate speed range of spindle	1~2000r/min,  linear velocity up to over 4 m/s.
6	Test medium	oil,water,slurry,abrasive etc.
7	Temperature control range	Room temperature~200°C
8	Max. Distance between spindle of the machine and lower friction coupling pate	>75mm
9	Time control range	10s~9999min
10	Computer & data processing range	Apply industrial control computer and configuration software to control the machine and test process, display different parameters in real time, record friction-time curve and temperature-time curve automatically. Control: load, time, temperature, test duration. Curves: Temperature-Time, Friction- torque and Time etc. Data can be printed by Excel.
11	Power	220V, 50Hz.
12	Dimension	900x760x1600mm
13	Weight	800kg
