• Model NO.：YAW-300C
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V,380V
• Oil Cylinder Position：Under
• Power：Hydraulic
• Accuracy：1 Class
• Resolution：0.01kn
• Plate Diameter：Dia 120mm
• Dimension：1200*600*1300mm
• Transport Package：Standard Shipping Case
• Specification：630*457*1410mm
• Trademark：Hensgrand or OEM
• Origin：Shandong, China
• HS Code：9024800000
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. YAW-300C Control Computer Control Weight 100-500Kg Power Source AC220V/380V Oil Cylinder Position Under Power Hydraulic Accuracy 1 Class Resolution 0.01kn Plate Diameter Dia 120mm Dimension 1200*600*1300mm Transport Package Standard Shipping Case Specification 630*457*1410mm Trademark Hensgrand or OEM Origin Shandong, China HS Code 9024800000 Production Capacity 5000 Sets/Month

Product Description

Concrete Compression and Flexural Testing Machine 10KN-300KN

1. Application
Mainly used for compressive and flexural strength tests of brick, stone, cement, concrete and other building materials, can also be used to test mechanical properties of other materials, in line with GB / T2611, GB / T17671, GB / T16826, GB / T50081 standards
2.Features:

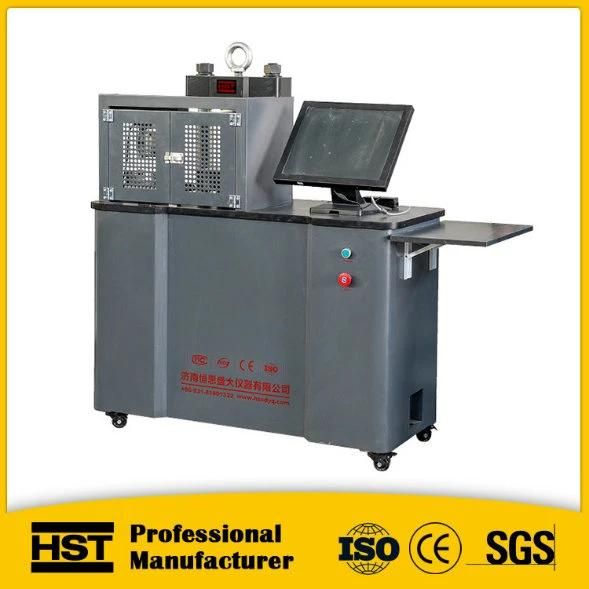

Structure: equipment (see photo) from the cylinder (bending, compression), the piston (bending, compression), force sensors, pressure plate, light bars, upper beam, bending devices, compression clamps, tanks, pumps and motors, valve plate group, controllers and other components.
Control system: hydraulically loaded, using electro-hydraulic servo technology for cement, concrete and other materials compression test under nominal test force, in accordance with relevant standards to set loading rate and meet the standards set, loading rate control index, with dynamic display load, time and test curve and timely control functions and maximum test force keep function.
3. Main Specifications

Model	YAW-300C
Max. Load	300kN
Max anti flexural load	10kN
Control way	Computer automatic control loading process
Accuracy	1 class
Test force measuring range	4%-100%FS
Test force value error	Better than ±1%
Test force resolution	0.01kN
Loading rate	0.3KN/S~10KN/S(compression)   50N/s(flexural)
Hydraulic pump rated pressure	25MPa
Anti Compression piston stroke	80mm
Anti flexural piston stroke	60 mm
Piston diameter	φ130mm
Anti compression space	180mm
Anti flextural space	180mm
Max distance between 2 columns	180mm
Pressure plate size	Ф120mm
Dimension	1200×600×1300 mm
Power supply	1.5Kw/AC380V
Weight	540kg
