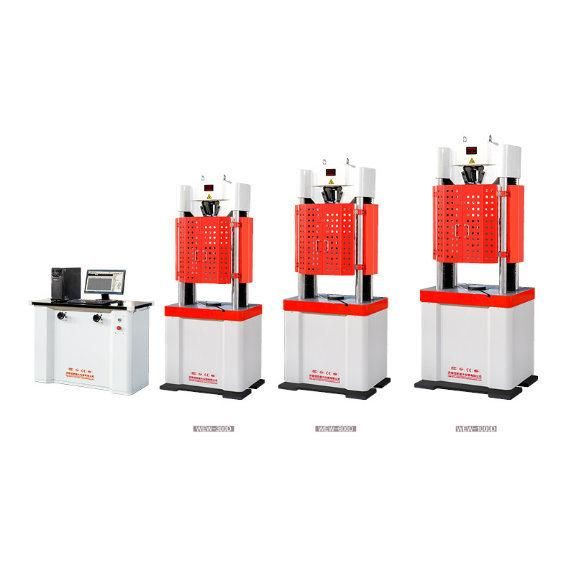

100kn Hydraulic Universal Steel Pipe Tensile Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Computer

Base Info

  • Model NO.：WAW-100D
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Sample Clamp：Hydraulic Grips
  • Tension Space：650mm
  • Compression Space：500mm
  • Sampel Grips：Customized
  • Safe：Protection Net
  • Color：Blue or White
  • Transport Package：Standard Sea Shipping Case
  • Specification：740x580x2035mm
  • Trademark：Hensgrand or OEM
  • Origin：Jinan, Shandong
  • Production Capacity：500 Sets,Month

Description

WAW-300DWAW-600DMax load 100KN300KN600KNStructure6 columnControl wayconstant stress uniform deformation constant
 displacement three closed loop control and program controlLoad accuracy≤±1%   or  ≤± 0.5% Load range2%-100%FS  or  0.4%-100%FS Load resolution1/300000Deformation Measurement Range 2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution 0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax. tension test space 650mm (can customize) 500mm (can customize)Oil cylinder moving speed 1409050Crosshead moving speed200150120Effective space between columns 430mm475mm525mmRound specimen clamping rangeΦ10-Φ32mmΦ13-Φ40mmΦ13-Φ40mmFlat specimen clamping range0-15mmClamping methodHydraulic clampClamp height70mm90mm90mmClamping width75mm80mm80mmCompression plate size φ160mmBending roller distance450mmWidth of bending rollers 120mmPower supply3-phase,  AC380V,   50Hz  (can be customized)100kn Hydraulic Universal Steel Pipe Tensile Testing Machine

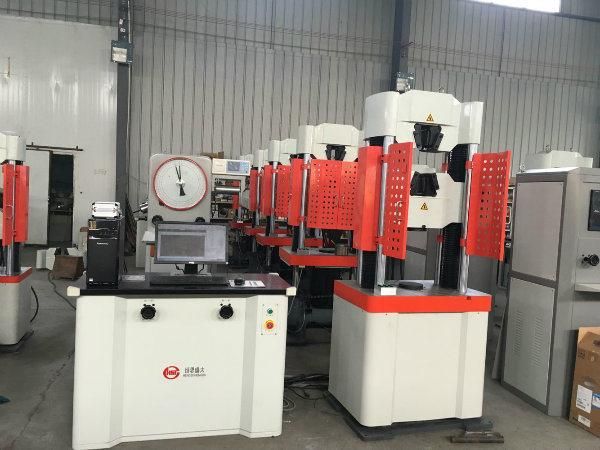

100kn Hydraulic Universal Steel Pipe Tensile Testing Machine

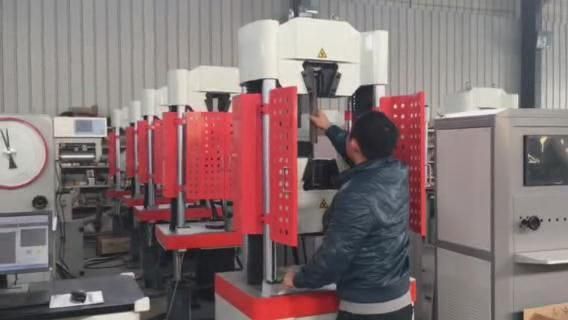

100kn Hydraulic Universal Steel Pipe Tensile Testing Machine
