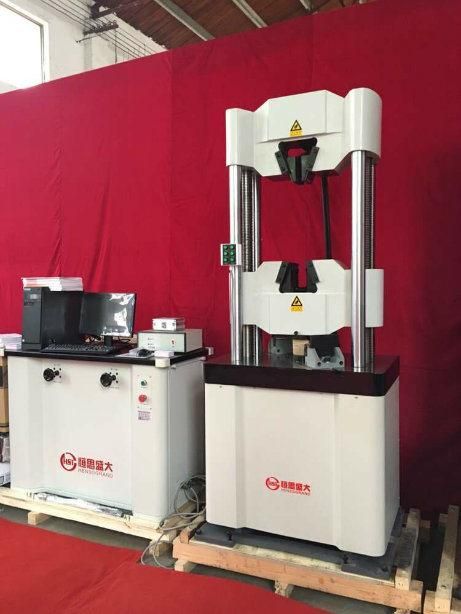

Hydraulic Universal 1000kn Tensile Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Computer

Base Info

  • Model NO.：WEW-1000H
  • Control：Manual Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Sample Clamp：Hydraulic Grips
  • Tension Space：650mm
  • Compression Space：500mm
  • Sampel Grips：Customized
  • Safe：Protection Net
  • Color：Blue or White
  • Transport Package：Standard Sea Shipping Case
  • Specification：740x580x2035mm
  • Trademark：Hensgrand or OEM
  • Origin：Jinan, Shandong
  • HS Code：9031809090
  • Production Capacity：500 Sets,Month

Description

WEW-
300HWEW-
600HWEW-
1000HWEW-
1500HWAW-
2000HMax Test Force300kn600kn1000kn1500kn2000knStructure6 columnControl wayLoading process manual control,computer automatic data dealingMax.Load2000kNMiddle cross beam adjust methodNut rotateLoad accuracy≤±1% /≤± 0.5%Load range2%-100%FS /0.4%-100%FSLoad resolution1/300000Deformation Measurement Range2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution0.01mmDisplacement error≤±0.5%Max.Piston stroke250mmMax piston moving speed0-50mm/min stepless speed adjustingCrosshead lifting speed200mm/minMax.Tension test space8008008008501000Max.Compression Test Space650650600650750Distance between columns460530650650780Clamping methodHydraulic clampRound specimen clamping range10-3213-4013-6013-60Φ12-Φ70Flat specimen clamping range0-150-150-200-200-35Flat specimen clamping width115mmCompression plate sizeΦ240mmBending roller distance450mmWidth of bending rollers160mmPower supply3-phase,AC380V, 50Hz(can be customized)Contact information:
If you need more details about this machine, please be free contact us.

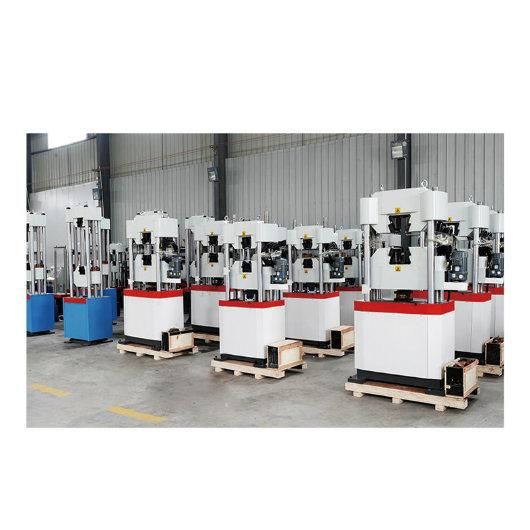

Universal testing Machines in stock:
