• Model NO.：waw-1000d
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Application：100ton Steel Tensile Test Equipment
• Color：Gray, White , Blue,Green or Customized
• Certificate：Ce ISO
• Proetctiion：Overload Protection, Protection Net
• Test Range：2% ~100% Fs
• Max Tensile Space：500mm
• Test Width：525mm
• Delivery Time：7 Days After Get Tt Payment
• Warranty：12 Months
• Structure：6 Columns
• Transport Package：Standard Exporting Plywood Case
• Specification：1020*2420*910MM
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. waw-1000d Loading Method Static Load Display Computer Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Application 100ton Steel Tensile Test Equipment Color Gray/ White / Blue/Green or Customized Certificate Ce ISO Proetctiion Overload Protection, Protection Net Test Range 2% ~100% Fs Max Tensile Space 500mm Test Width 525mm Delivery Time 7 Days After Get Tt Payment Warranty 12 Months Structure 6 Columns Transport Package Standard Exporting Plywood Case Specification 1020*2420*910MM Trademark HST Origin China HS Code 9031809090 Production Capacity 100 Sets Per Month

Product Description

100TON Steel Tensile Test Equipment
1. Application
The machine adopts hydraulic loading, Computer control, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

3. Host Features
3.1 Adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
3.2 The structure is designed with solid four column and two screw, the whole machine has strong stability.
3.3 The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
3.4 Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.

4. Overload protection
4.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
4.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.

5. Main specifications

Model	WAW-100D
Structure	6 column
Control way	constant stress uniform deformation constant displacement three closed loop control and program control
Max.load	100kN
Load accuracy	≤±1% /   ≤± 0.5% optional
Load range	2%-100%FS   /0.4%-100%FS optional
Load resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation accuracy	≤±1%  /± 0.5% optional
Displacement resolution	0.01mm
Displacement error	≤±0.5%
Max.piston stroke	250mm
Max piston moving speed	0-140mm/min Manual adjustment
Crosshead lifting speed	200 mm/min
Max. tension test space	650mm (can customize)
Max.Compression Test Space	500mm (can customize)
Column clearance	430mm
Clamping method	Hydraulic clamp
Round specimen clamping range	Φ10-20mm , Φ20-Φ32mm (Φ4-Φ10 Optional)
Flat specimen clamping range	0-15mm (15-30 Optional)
Flat specimen clamping width	75mm
Compression plate size	φ160mm
Bending roller distance	450mm
Width of bending rollers	120mma
Power supply	3-phase,AC380V, 50Hz(can be customized)
Weight (kg)	900

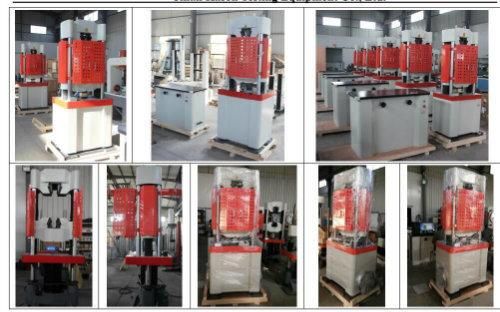

Real Pictures:

Software:

Package & Transportation :

CE Certificate:

Company information
