• Model NO.：XNR-400B
• Precision of Timer：0.1s
• Displacement Precision：0.01mm
• Cutting Mode：Manual, by Time,Automatic Control
• Power Supply：AC220V, 50Hz
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：XNR-400B
• Trademark：HST or OEM
• Origin：China
• HS Code：90248000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. XNR-400B Precision of Timer 0.1s Displacement Precision 0.01mm Cutting Mode Manual, by Time,Automatic Control Power Supply AC220V, 50Hz Transport Package Standard Exporting Plywood Case with Free Fumigati Specification XNR-400B Trademark HST or OEM Origin China HS Code 90248000 Production Capacity 500 Sets/Month

Product Description

XNR-400B Econimical Model Plastic Melt Flow Index Tester

Application:
Melt Flow Index tester suitable for determining the melt flow rate (MFR) of thermoplastic plastic such as polyethylene, polypropylene, POM, ABS resin, Polycarbonate, Polycarbonate .

Characteristics:
1.Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2.Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3.Has the temperature calibration function

Technical parameters:

Model	XNR-400B
Measuring range	0.1-800.00g/10min(MFR) 0.1-800.00 cm3/10min(MVR)
Precision of temperature control	room temperature - 450°c
Precision of temperature	±0.2°C
Precision of timer	0.1s
Displacement precision	0.01mm
Load	full load
Cutting mode	manual, by time,automatic control
Screw barrel internal diameter	9.550mm ± 0.025mm
Screw barrel length	160mm
Cavity die	Tungsten carbide, L 8.000mm±0.025mm,   internal diameter2.095mm ±0.005mm
Power	0.45 KW
Power supply	AC220V, 50Hz
Dimension	400mm ×500mm ×600mm
Net Weight	65kg

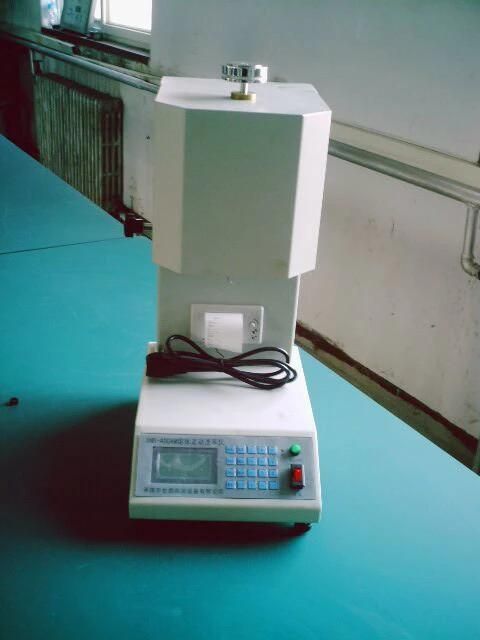

Real picture of the melt flow index tester


Test result:

Exporting plywood case with free fumigation:

CE and ISO approval:
