• Model NO.：WE-1000D
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V,220V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：100,300,600,1000,1500,2000kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Safe：Protection Net, Overloading Protection
• Application Name：Digital Hydraulic Tensile Test Machine
• Certificate：Ce ISO
• Standard：Astmd ISO
• Accuracy：1 Class
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1060*890*2260mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

WE-1000DStructure6 Column (Four Columns Two Ball Screws)Control WayLoading Process Manual ControlMax. Load1000 KN (100 TONS)Load Accuracy≤± 1%Load Range2%~100%FS
(20KN~1000KN)Load Resolution0.01 KNPiston Speed0-50mm/min
Manual AdjustmentCrossbeam Lifting Speed150mm/minMax. Effective Tension Test Space650mm  (Can Be Customized)Max.Effective Compression Test Space500mm  (Can Be Customized)Center Spacing Between Columns600mmColumn Effective Spacing525mmMax. Piston Stroke250mmClamping MethodManual Clamping  /  (Optional: Hydraulic Clamping)Round Specimen Clamping RangeΦ13-Φ26mm,Φ26-Φ40mm
(Optional: Φ6-Φ13mm, Φ40-Φ50mm)Flat Specimen Clamping Range0-15mm  (Optional: 15-30mm)Flat Specimen Clamping Width80mmCompression Platen SizeΦ 160mmSpan Of Bending Rollers450mmWidth Of Bending Rollers120mmPower Supply3-Phase 4-Wires, AC 380V, 50Hz  (Can Be Customized)

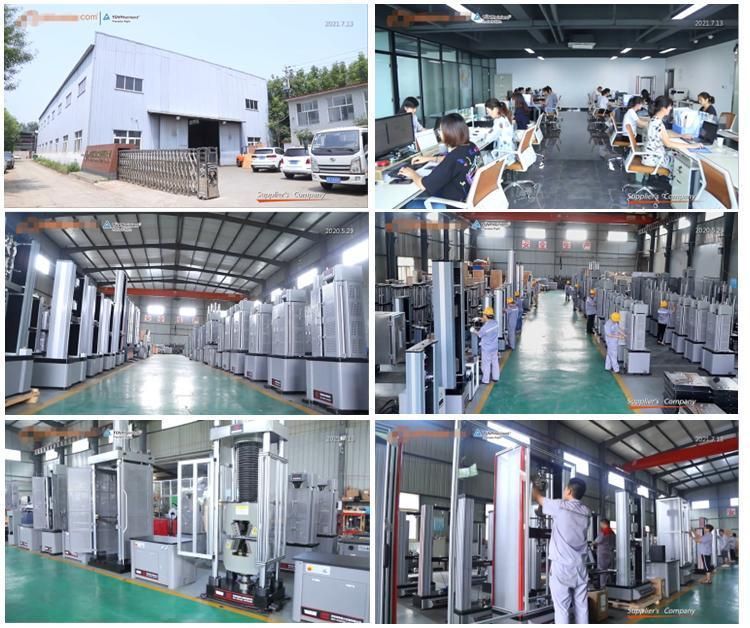

WORK SHOP EXHIBITON OUR Customers all over the world  CERTIFICATE Packaging&Shipping
