• Model NO.：PHAS-16
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Length：1780 mm
• Width：800 mm
• Height：1150 mm
• Number of Package：1 Pieces
• Colour：Jp Standard or Custom
• Delivery：Within 25 Days

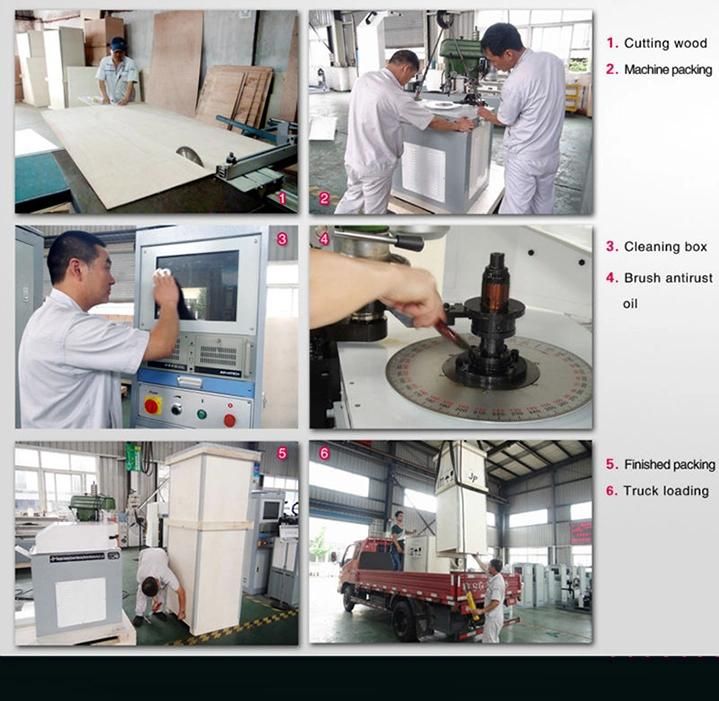

• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHAS-16 Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Length 1780 mm Width 800 mm Height 1150 mm Number of Package 1 Pieces Colour Jp Standard or Custom Delivery Within 25 Days Transport Package Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

Universally applicable
High balancing accuracy
Easy upgrading through modular structure and a wide range of accessories
Hard-bearing principle ensures fast change-over
JP-580 measuring instrument, with extensive operator prompting
Full range of safety equipment for all protection classes



Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application




Range of Application

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency




Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments




Production Parameters

Technical data at a glance	PHAS-16
Max Mass of Workpiece (kg)	16
Max Diameter of Workpiece (mm)	700
Max Length of Workpieces	200
Spindle speed	~900
Motor Power (kw)	1.5 AC Frequency conversion
Min Achievable Residual Unbalance Amount(emar)	<=4g. mm/kg(single/double plane)
