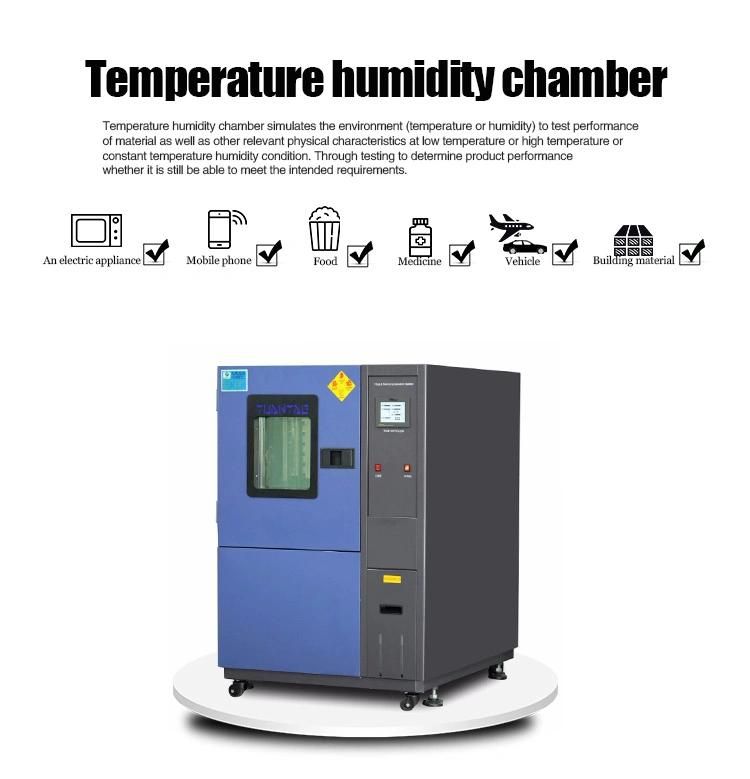

Multi-Layer Temperature Humidity Test Cabinet Machine for PCB/LED Material Test

Guangdong Yuanyao Test Equipment Co., Ltd.

Type：Material Testing Machine
Display：Digital
Control：Manual Control
Weight：100-500Kg
Power Source：AC220V
Oil Cylinder Position：Under

Base Info

Model NO.：YTHS-162-(+10)-2P
Transport Package：Good Package
Specification：225L
Trademark：Yuanyao
Origin：China
HS Code：8419899090
Production Capacity：100000

Description

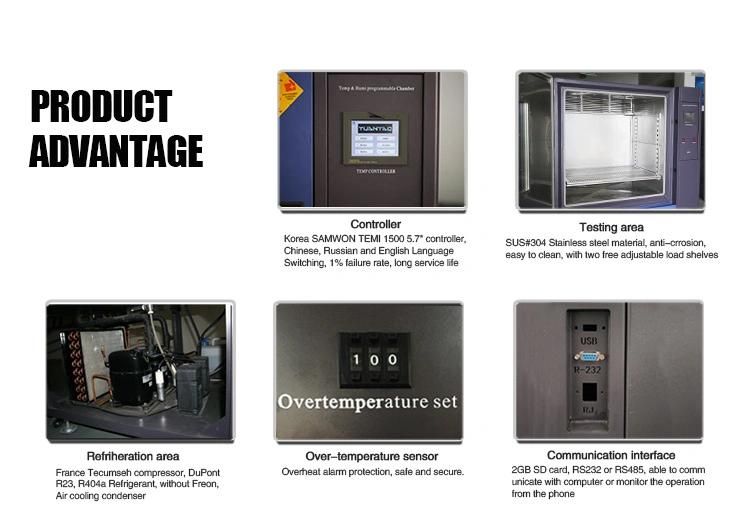

ModelYTHS-072-(+10)-2PYTHS-162-(+10)-2PInternal Dim.W×H×D(mm)400×400×450600×450×600External Dim.W×H×D(mm)1060×1760×7801260×1910×830Temperature Range +10ºC----+100ºCHumidity Range30%HR----95%HRFerformanceTemp.&Humi,Constancy±0.3ºC; ±1.0%RHTemp.&Humi,Constancy±1.5ºC; ±3.0%RHIndication Resolution0.1ºC; 0.1%RHHeat-up Time( min.)30Pull-down Time( min.)40MaterialExteriorStainless steel piate+Powder CoatedInteriorSUS#304 stainless steel piate InsulationPU & Fiberglass woolSystemsCirulationSiroco fanHeatingSUS#304 stainless steel high-speed heaterHumidifyingSurface evaporating systemCoolingAirtight compressor+vaporator fins+air-cooling condenserehumidifyingADP Critical dewpoint cooling/dehumidifying methodControllerDigital electronic indicators+S.S.R.With PID automatic calculation capabiltyOther Components *Control status indicator lights *Vacuum glass inspection window & chamber lamp
*Experiment separation shelvs(freely adjustable 6pcs)Sevey DevicesOverheating prevention circuit-breaker,compressor overload protectin,control system overload protection,humidifying system overheading drying out prevention,breakdown indicator lightPower Source[K.W.]AC 1Ψ 220V 60/50Hz7.59
