• Model NO.：STYE-2000
• Power Source：AC220V
• Oil Cylinder Position：Under
• Noise：≤80dB
• Transport Package：Export Wooden Case
• Trademark：YUFENG
• Origin：Made in China

Basic Info.

Model NO. STYE-2000 Power Source AC220V Oil Cylinder Position Under Noise ≤80dB Transport Package Export Wooden Case Trademark YUFENG Origin Made in China

Product Description

STYE-2000/1000 Digital Display Hydraulic Compression Testing Machine(Equip Safety Door)


Use:
    STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes,cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:
Efficient hydraulic power packs
Economic machines ideal for site use
Designed to meet the need for a simple, economic and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines inthe range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.

Specification:
STYE-1000
Max. testing power: 1000kN
Measuring range: 0-1000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 300×250mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 900×400×1090mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 650KGS
Noise: ≤80Db

STYE-2000
Max. testing power: 2000kN
Measuring range: 0-2000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 320×260mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 950×400×1160mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise: ≤80Db
Why Choose us?
1. Superior Quality & Reasonable Price
2. Professional Project Design Team & Complete Project Management System

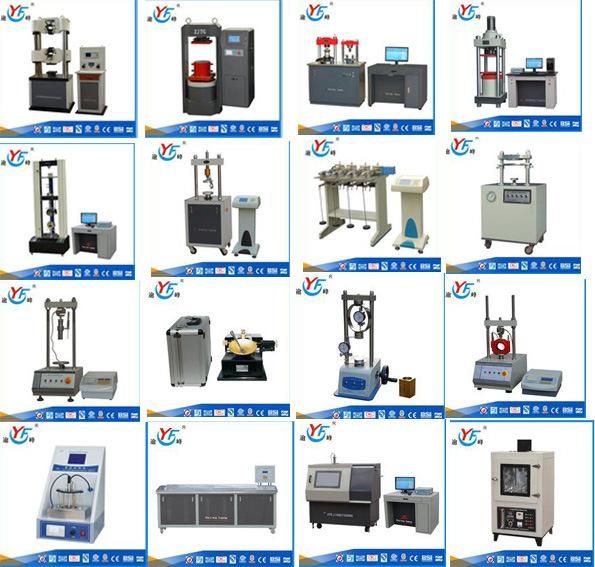

3. Full range of Products, including soil, asphalt, concrete, cement, motor and rock
 offer you one-stop purchase, save your money and delivery time.

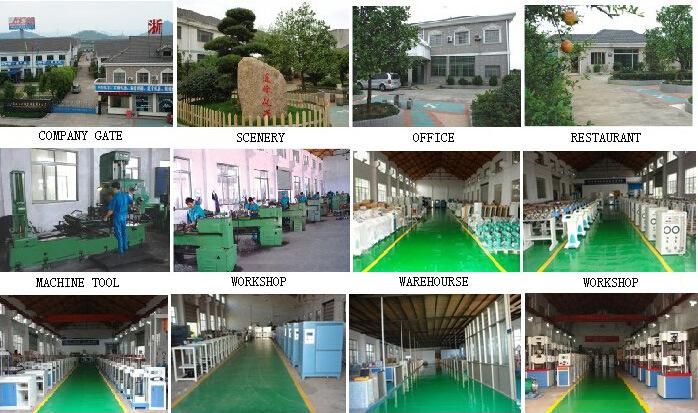

4. Great Production Capacity, 14 modernized standard workshops
5. Experienced  Engineer & Satisfactory After-sales Service
6.MOQ:1 set is avaliable
7.Cover an area of 26,680 square meter



FAQ
What's the delivery time?
Delivery time from 7 days-15 days according to the products.

What's your payment terms?
We accept T/T, L/C or Western Union.

What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.

What's your services?
For our products, we will give your professional guidance ( Product introduction  and operation  manual )

Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No..
