• Model NO.：HJ-66
• Dimensions：1300mm*500mm*1460mm
• Temperature Resolution：0.1ºC
• Standard Specimen Size：75*150mm,48PCS
• Center Distance of Lamp：70mm
• Blackboard Thermometer Measuring Range：30~80ºC,Tolerance Is ±1ºC
• Radiation Intensity：1.5W,M2,340nm
• Condensing Temperature Range：40~60celsius
• Studio Size：1140mm*400mm*380mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-66 Dimensions 1300mm*500mm*1460mm Temperature Resolution 0.1ºC Standard Specimen Size 75*150mm,48PCS Center Distance of Lamp 70mm Blackboard Thermometer Measuring Range 30~80ºC/Tolerance Is ±1ºC Radiation Intensity 1.5W/M2/340nm Condensing Temperature Range 40~60celsius Studio Size 1140mm*400mm*380mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

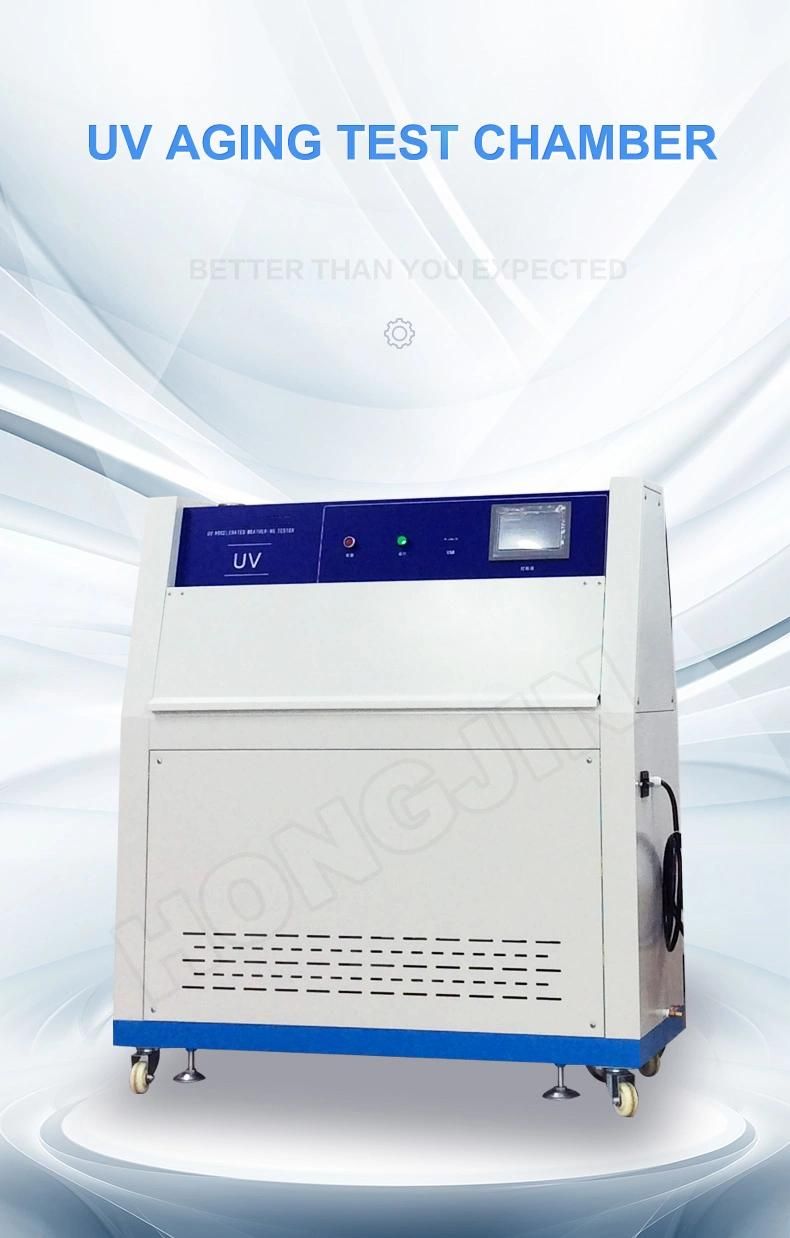

UV aging test chamber application
1.  Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.  To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.   Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

UV accelerated aging test machine features
This product uses a fluorescent ultraviolet lamp that can best simulate the UV spectrum of the sun, and combines temperature control, humidity supply and other devices to simulate the sun that causes discoloration, brightness, and intensity reduction; cracking, peeling, chalking, oxidation, etc. (UV section) Factors such as high temperature, high humidity, condensation, dark period, etc. At the same time, the single light resistance or single moisture resistance of the material is weakened or invalid through the synergy between ultraviolet light and moisture, which is widely used for weather resistance of the material For performance evaluation, the equipment has the characteristics of providing excellent sunlight UV simulation, low maintenance cost, easy to use, automatic operation cycle of the lighting controller of the equipment, high degree of automation, good lighting stability, and high reproducibility of test results.

Standard of UV test machine
ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards


Studio size	1140mm×400mm×380mm
Dimensions	1300mm×500mm×1460mm
Center distance of lamp	70mm
The distance between the specimen and the nearest  parallel surface of the lamp surface	About 50mm
Wavelength range	*UV-A wavelength range is 315~400nm     *UV-B wavelength range is 290~313nm    *UV-C wavelength range is 230~290nm
Radiation intensity	1.5W/m2/340nm
Temperature resolution	0.1ºC
Illumination temperature range	50ºC~70ºC/Temperature tolerance is ±3ºC
Condensing temperature range	40ºC~60ºC/Temperature tolerance is ±3ºC
Blackboard thermometer measuring range	30~80ºC/Tolerance is ±1ºC
Temperature control method	PID self-tuning temperature control method
Humidity range	About 45%~70%R.H (light state)/98% or more (condensation state)
Sink requirements	The water depth is not more than 25mm, and there is an  automatic water supply controller
Standard specimen size	75×150mm 48pcs
Recommended use environment of the instrument	5~35ºC, 40%~85%R·H, 300mm from the wall
