• Model NO.：HD-A504-B
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Product Name：Automatic Bursting Tester
• Control Mode：LCD Display, Touch Screen
• Resolution：0.2 Kgf,Cm2
• Material：SUS # 304 Clamp Ring
• Indicating Method：Digital Display
• Hydraulic Oil：100% Silicone Oil
• Motor：90W Governor Motor
• Transport Package：Strong Wooden Case
• Specification：GB,T 2679-1995, GB,T 6546-1998, GB,T 1679.6-1996
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-A504-B Control Manual Control Weight 0-100Kg Power Source AC220V Product Name Automatic Bursting Tester Control Mode LCD Display, Touch Screen Resolution 0.2 Kgf/Cm2 Material SUS # 304 Clamp Ring Indicating Method Digital Display Hydraulic Oil 100% Silicone Oil Motor 90W Governor Motor Transport Package Strong Wooden Case Specification GB/T 2679-1995, GB/T 6546-1998, GB/T 1679.6-1996 Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets/Month

Product Description

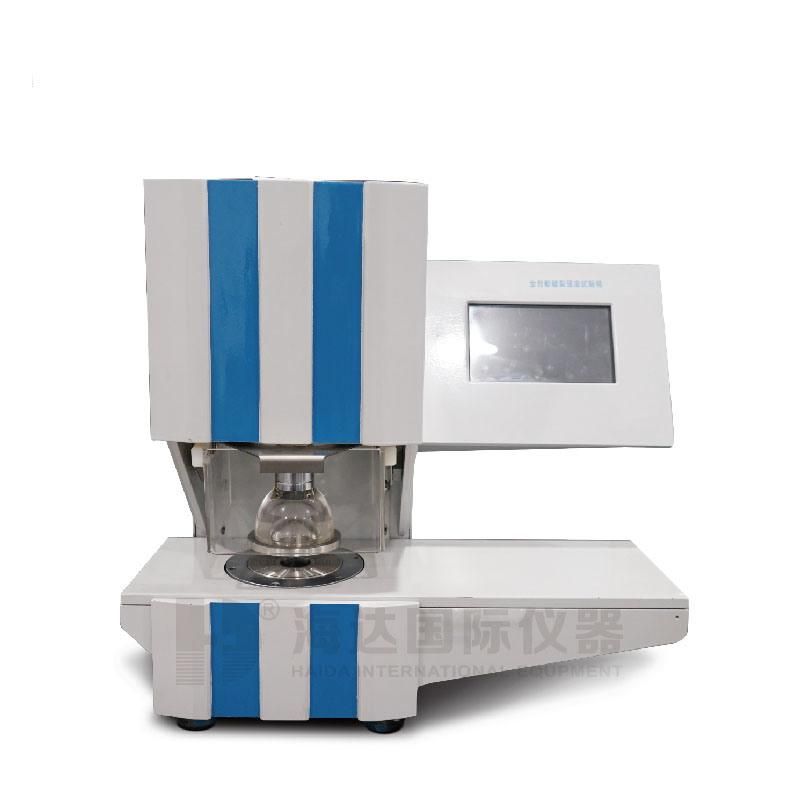

Laboratory Equipment Automatic Paperboard Bursting Test/Testing Machine

Product Description:
Bursting Strength Tester measures (according to Mullen) bursting strength of paper, paper board, and corrugated board. Bursting strength is a traditional measure of paper strength and it is also a test requirement for corrugated board.

This series of products adopts digital display pressure, when the test material is broken, the maximum rupture strength value is automatically reserved, the indication mode is digital, the capacity is 0~56kgf/cm^2(0.1kgf/cm^2)

Application:
It is widely used in packaging materials, including general paper, corrugated, toilet paper, wrapping paper, etc., for leather, cloth, packaging film, can effectively monitor the quality of products.

This series of bursting strength tester canboth test burst strength of paper or paperboard by replacing the rubber membrane and platen.

The Parameters:

Item	Description
Induction mode	Pressure converter
Indication	Digital explicit, expandable computer operation
Operation mode	Automatic oil pressure, automatic return and automatic calculation, storage of test data and printing
Sample clamping force	50~1200kpa(adjustable),automatic clamping and loosening device
Power units	kpa, Lbs/in^2, KGF /cm^2, with unit switching function
Capacity selection	0~56kgf/cm^2(0.1 KGF /cm^2)
Device	Acrylic protection device, test indicator light, visible rupture process
Resolution	0.2kgf /cm2
Clip ring material	stainless steel SUS#304
Clamp ring diameter	clip on Φ 30.5 + / - 0.1 mm, inner diameter ring diameter Φ under 30.5 + / - 0.1 mm
Hydraulic oil	100% silicone oil
Pressure speed	170±15ml/min
Dimension (L×W×H)	(L×W×H)445×425×525mm
Electrical source	Single phase,AC220V
Weight	Approx. 50kg

Characters:
1. It is applicable to test bursting strength for paperboard.
2. LCD display, touch screen.
3. Automatic operation method.
4.The indicating mode of digital display .
5. User-friendly menu interface.
6. Power protection ensure automatic record when power cut off.

Design standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112,ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539


Characters :
1. It is applicable to test bursting strength for paperboard.
2. LCD display, touch screen.
3. Automatic operation method,with automatic test grip instead manual hold the sample.
4.The indicating mode of digital display .
5. User-friendly menu interface.
6. Power protection ensure automatic record when power cut off.
7. Very fast testing cycle gives fast feedback to the production
8.. Improvement of the operational safety regulations >> equipped a cover between plants to protect the operator's hand during testing
9. Built-in LED light on the cover   >>It is helpful to observe sample's condition during bursting process
