Computer Control 30/50/100kn Plastic Pipe Ring Stiffness Tester

Chengde Jinjian Testing Instrument Co., Ltd.
  • Max Diameter of Workpiece：All
  • Mass Scope of Workpiece：All
  • Type：All
  • Maxcapacity：All
  • Accuracy Grade：All
  • Load Way：All

Base Info

  • Model NO.：RST
  • Loading Method：All
  • Display：All
  • Control：All
  • Weight：All
  • Power Source：All
  • Oil Cylinder Position：All
  • Logo：Jj-Test
  • Transport Package：Wood
  • Specification：ISO9967
  • Trademark：JInjian
  • Origin：China
  • HS Code：90248000
  • Production Capacity：8 Per,Mouth

Description

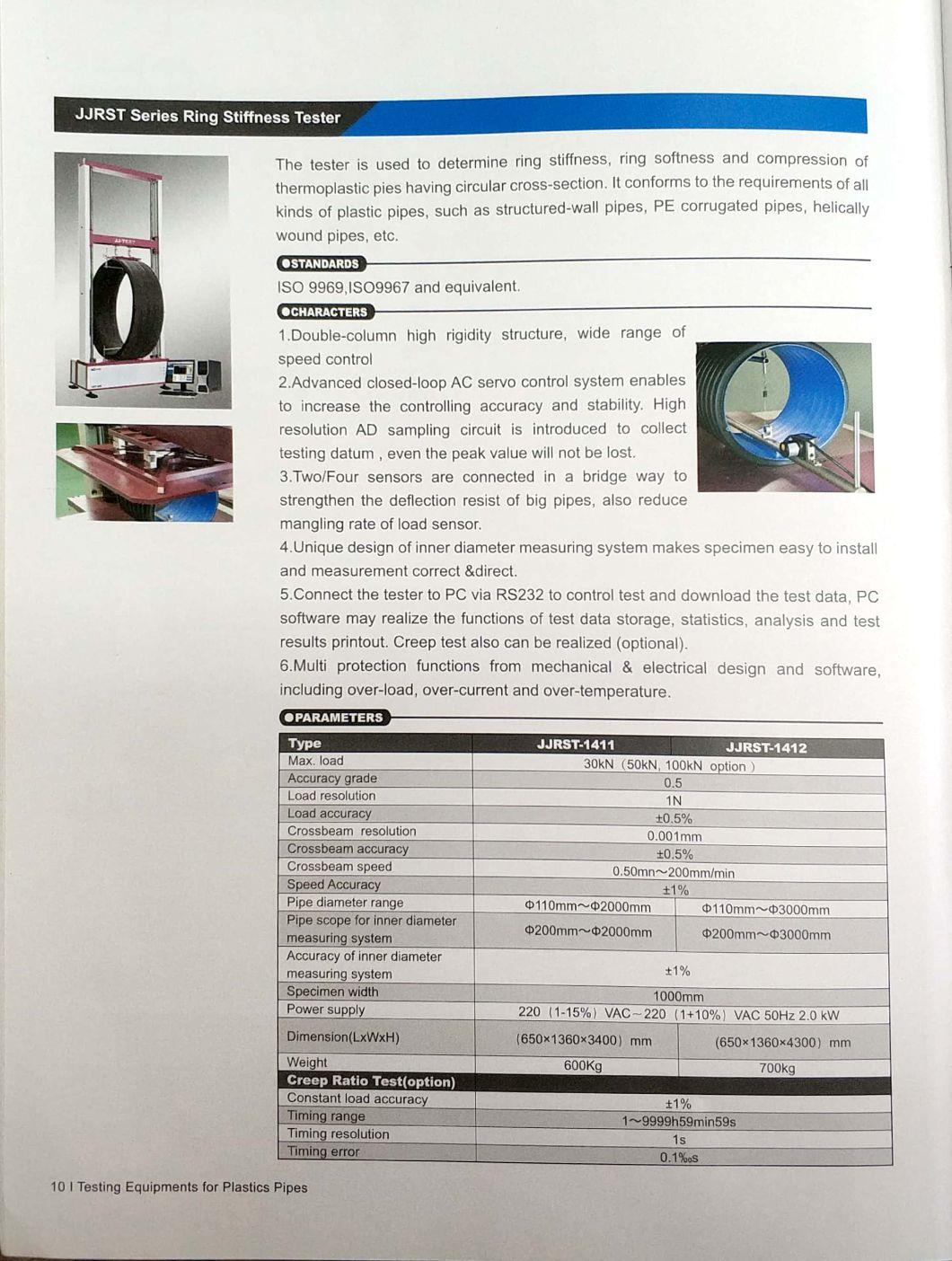

TypeJJRST-1411JJRST-1412Max.load30kN(50kN,100kN option)Accuracy grade0.5Load resolution1NLoad accuracy±0.5%Crossbeam resolution0.001mmCrossbeam accuracy±0.5%Crossbeam speed0.5mn-200mm/minSpeed Accuracy±1%Pipe diameter range110mm-2000mm110mm-3000mPipe scope for inner diameter measuring system200mm-2000mm200mm-2000mmAccuracy of inner diameter measuring system±1%Specimen width1000mmPower supply220(1-15%)VAC-220(1+10%)VAC50Hz 2.0KwDimension(L*W*H)(650*1360*3400)mm(650*1360*4300)mmWeight600kg700kgCreep Ratio Test(option)Constant load accuracy±1%Timing range1-9999h59min59sTiming resolution1sTiming eror0.1‰sComputer Control 30/50/100kn Plastic Pipe Ring Stiffness Tester
