• Model NO.：STLA-0316
• Weight：10kg
• Transport Package：Export Standard Package
• Specification：dia. 370x370x500mm
• Trademark：YF
• Origin：China

Basic Info.

Model NO. STLA-0316 Weight 10kg Transport Package Export Standard Package Specification dia. 370x370x500mm Trademark YF Origin China

Product Description

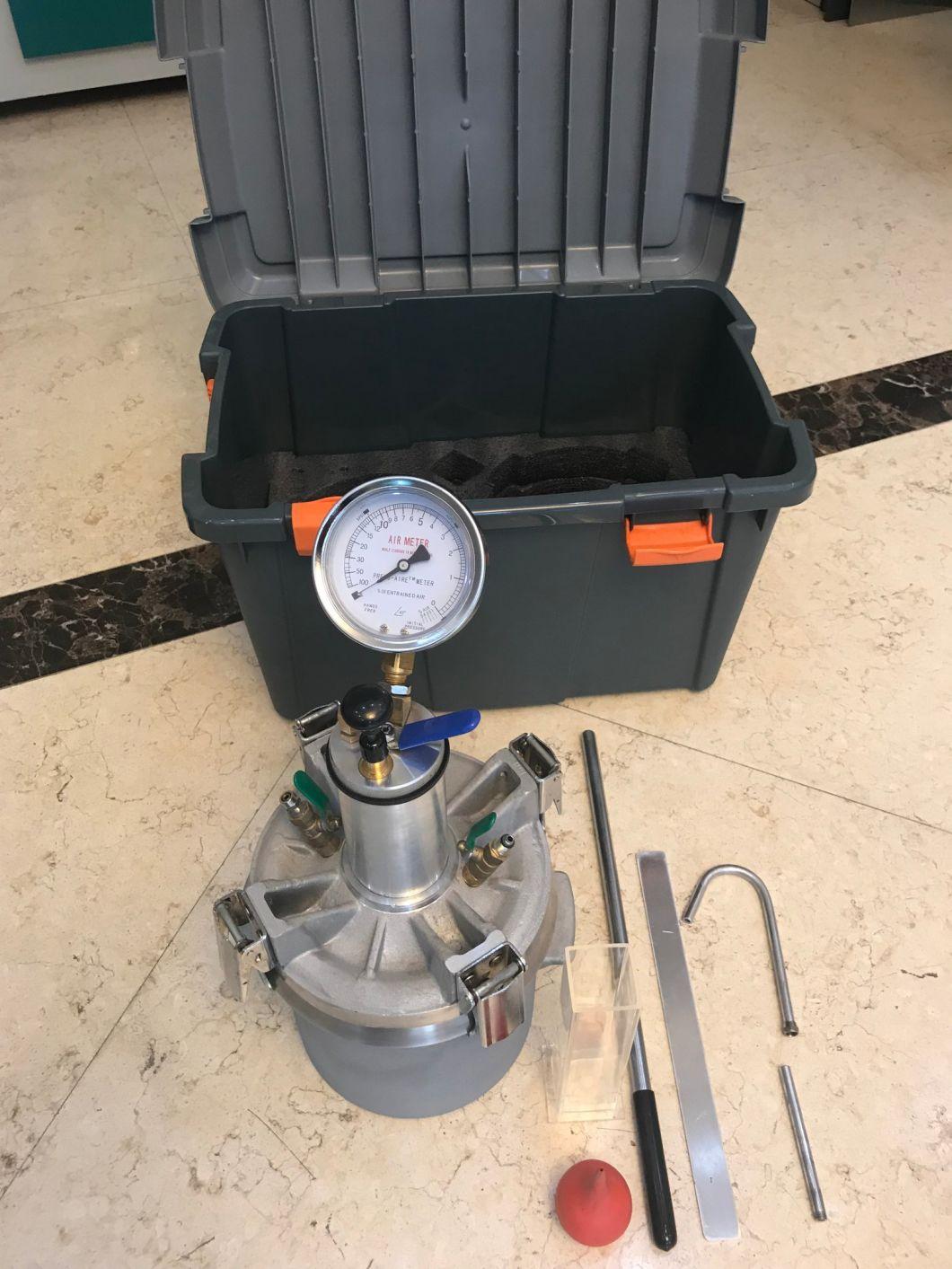

concrete air entrainment meter

STANDARD: EN 1350-7,BS 1881-106,ASTM C231

Application: used to determine air content in concrete mixtureThe proper control of entrained air in concrete is recognized as one of the most important functions in modern concrete manufacture.

The air meter unit consists of 2 main parts: the base(measuring chamber) and the cover assembly. The cast aluminum base has machine-flanged rim. The interior surfaces of the base and surfaces of rims, flanges and other component parts are machined to facilitate frequent water clean-up. The unit is designed for easy disassembly in order to replace worn or damaged parts in the field.



Capacity	7 liter
Aggregate size	40mm maximum
Readings	Up to 10% entrained air
accuracy	+/-0.1/0.2% accuracy(6%-10% of air content)
Pressure gauge range	0.1MPa
Packing	ABS plastic box
Feature	Pressure gauge in shock-proof mounting                                   Pressure chamber is hermetically sealed by means fo four quick-release clamps
dimension	dia.370x370x500mm   10kg Packing Weight: 25kg
