High Frequency Lab Electrodynamic Vibrator Shaker Table / Vibration Table Price
Ai Si Li (China) Test Equipment Co., Limited- Type:Vibration Testing Machine
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
- Weight:1000-2000Kg
Base Info
- Model NO.:ES-6
- Power Source:AC380V
- Frequency Range:5Hz to 3500Hz
- Acceleration:1000m,S2
- Speed:1.6m,S
- Impact Displacement:25mm
- Moving Coil:6.5kg
- Vibration Direction:Vertical & Horizontal
- Vibration Wave:Sine, Random, Shock
- Moving Coil Distance:Dia. 230 mm
- Transport Package:Standard Export Plywood Case
- Specification:CE, ISO
- Trademark:ASLi
- Origin:China
- HS Code:9031809090
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. ES-6 Power Source AC380V Frequency Range 5Hz to 3500Hz Acceleration 1000m/S2 Speed 1.6m/S Impact Displacement 25mm Moving Coil 6.5kg Vibration Direction Vertical & Horizontal Vibration Wave Sine, Random, Shock Moving Coil Distance Dia. 230 mm Transport Package Standard Export Plywood Case Specification CE, ISO Trademark ASLi Origin China HS Code 9031809090 Production Capacity 50 Sets/MonthProduct Description
High Frequency Lab Electrodynamic Vibrator Shaker table / vibration table PriceProduct Description
high frequency air cooling laboratory electrodynamic vibration shaker good price can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test.The comprehensive test of mechanics and environment conditions can be carried out with a climate chamber.
The high frequency vibration test system is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.
According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed (m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
For Vertical Expander
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.
For Horizontal Expander
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

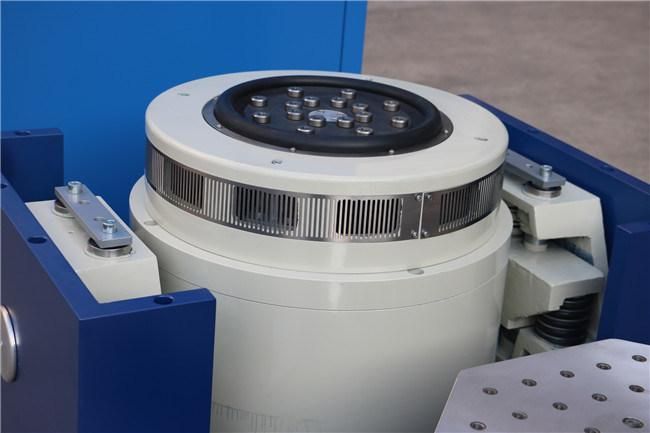

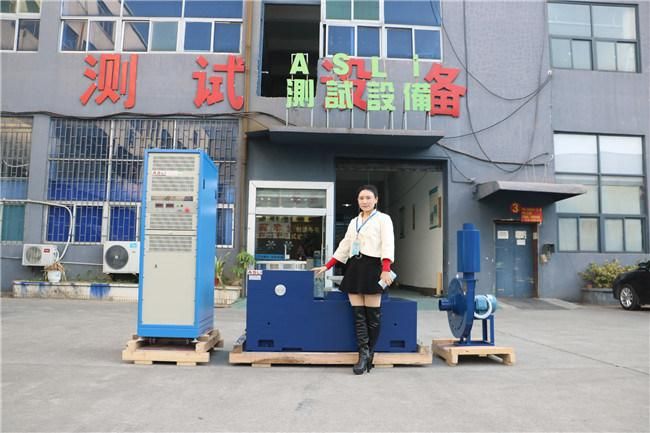

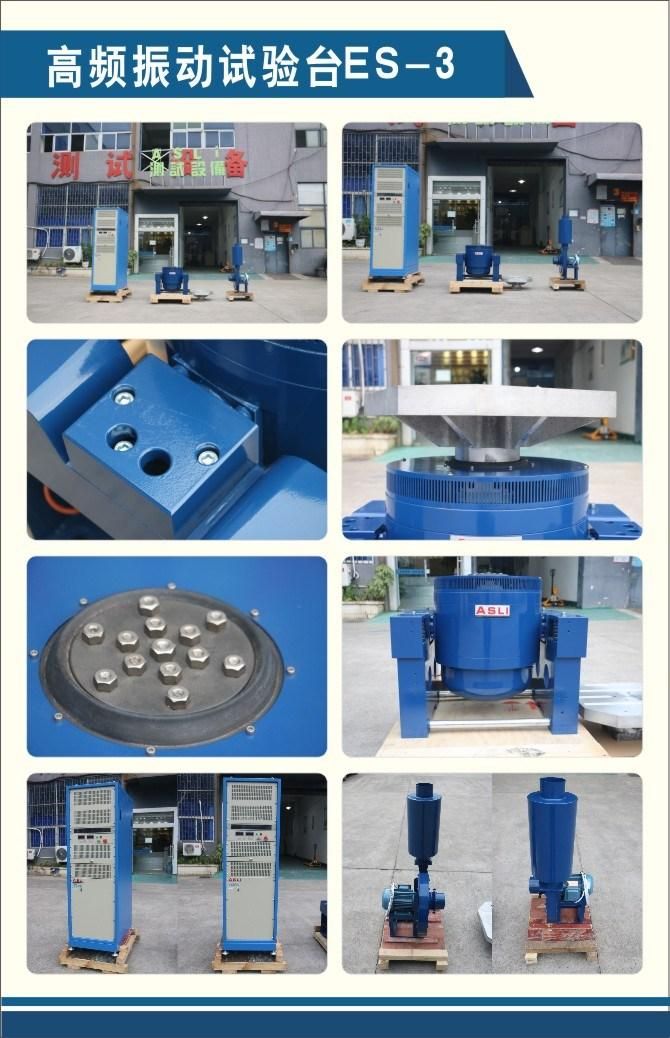

Pictures for reference:
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about Sine and Random Vibrating Electrodynamics High Frequency Type Vibration Tester, please don't hesitate to send your inquiry.
