• Model NO.：ZH-HS-150A(B ~ F)
• Heating Rate：2.0~4.0c,Min, or Fast Rate (up to 30c,Min) Customi
• Cooling Rate：0.7~1.0c,Min, or Fast Rate (up to 30c,Min) Customi
• Cabling Port：Diameter 50mm,100mm Optional
• Cooling Mode：Air Cooled (or Water-Cooled Optional)
• Inner Material：SUS304#
• External Material：Blue Color Painted (or SUS304#)
• Compressor Brand：Tecumseh (France)
• Service：OEM , ODM , Non-Standard Available
• Power Supply：220V, 1 Phase, 50,60Hz
• Controller：Independent R&D Software Programmable 7 Inch Scree
• Controller Display：Programmable 7′′ Colorful
• Transport Package：Fumigation-Free Wooden Box Packaging
• Specification：Customization available
• Trademark：Sailham
• Origin：Guangdong, China
• HS Code：8479899990
• Production Capacity：5000sets,Year

ModelZH-HS-80
(A~F)ZH-HS-150
(A~F)ZH-HS-225
(A~F)ZH-HS-408
(A~F)ZH-HS-800
(A~F)ZH-HS-1000
(A~F)Inner size: WHD(cm)40*50*4050*60*5060*75*5060*85*80100*100*80100*100*100External size: WHD(cm)105*165*98105*175*108115*190*108135*200*115155*215*135155*215*155Temperature range(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)Humidity range20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)Temp analytic accuracy/uniformity0.1ºC/±2.0ºCTemperature Fluctuation±0.5ºCHumidity analytic accuracy/ Humidity  control accuracy±0.1%;±2.5%Heat; cooling timeHeat up about 4.0°C/min ;  Cooling about 1.0°C/minInner and outer materialsSUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outerInsulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materialsCooling systemAir cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)Protection devicesFuse switch, compressor overload switch, refrigerant high and low pressure protection
switch,
super humidity over-temperature protection switch, fuse, failure warning systemPartsWatching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4CompressorOriginal France"Tecumseh"brandControllerTEMI South KoreaPowerAC220V 50/60Hz & 1, AC380V 50/60Hz 3weight (kg)150220270320450580

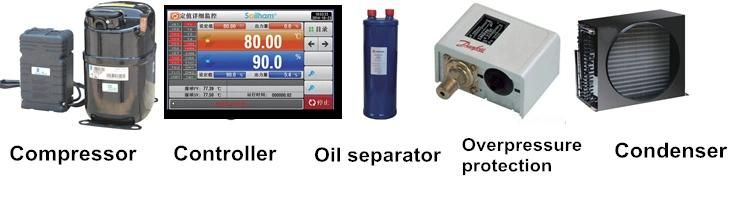

Core accessories.

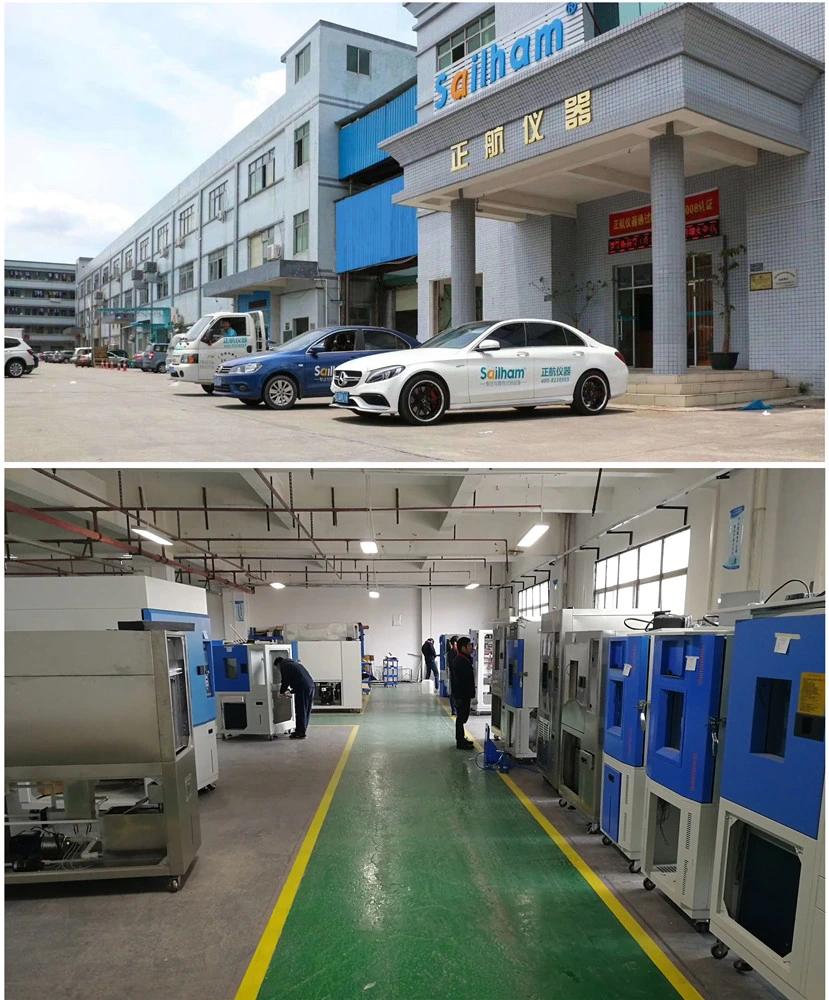

Our company.

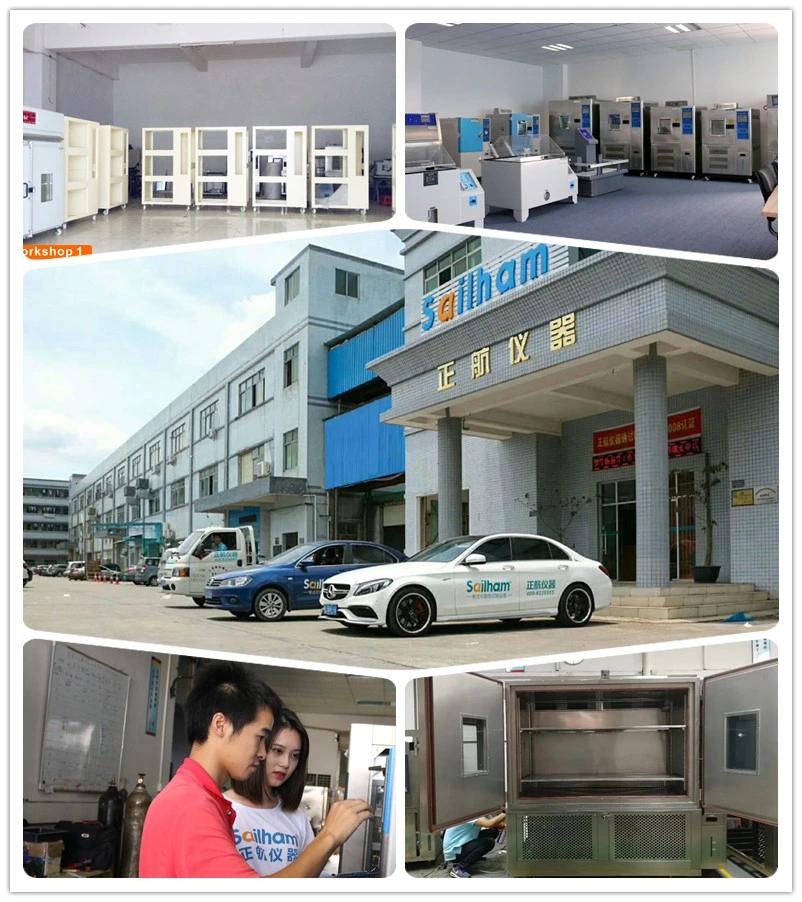

Workshop.

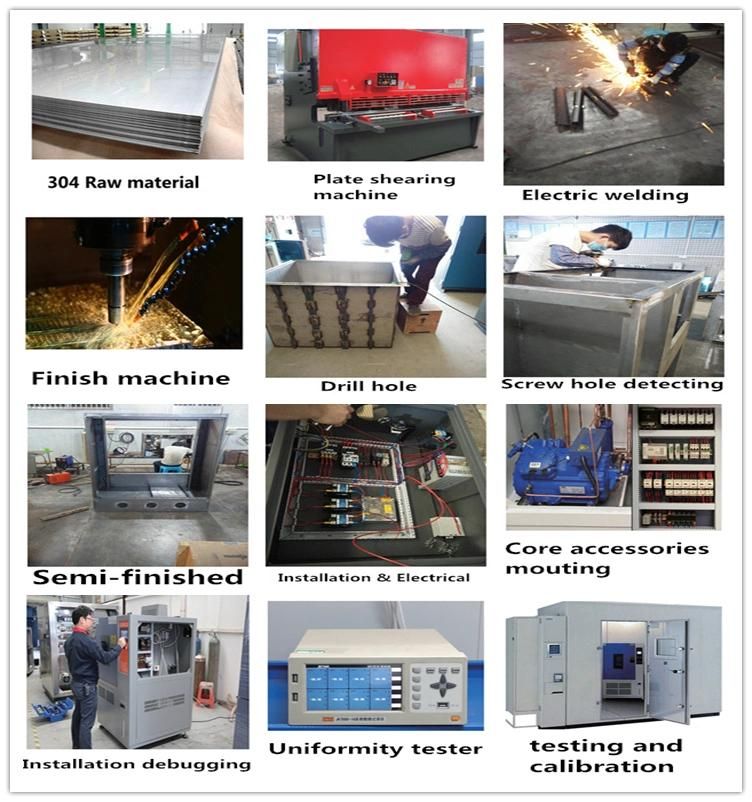

Manufacture process.




Features.
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A

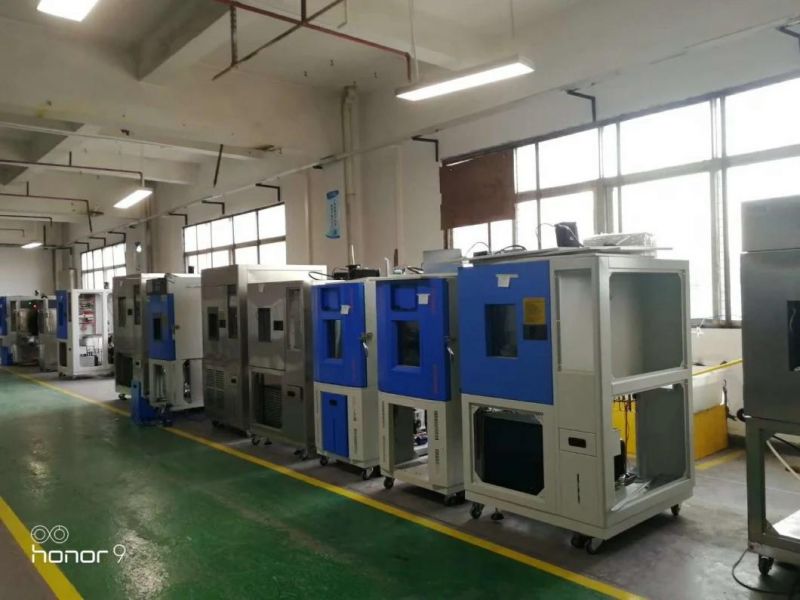

Our Factory.

Certifications.

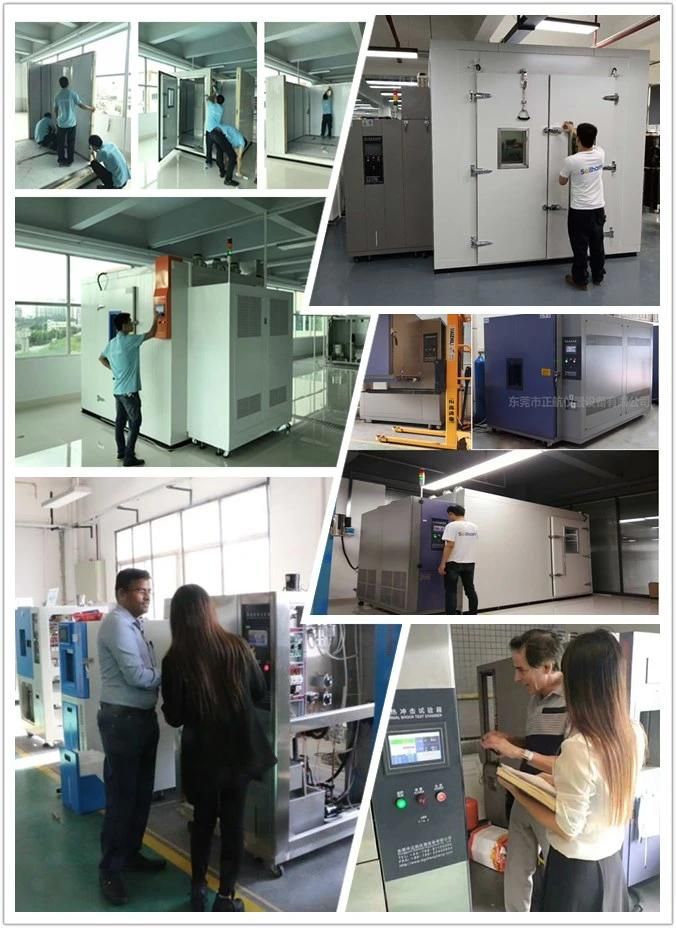

Exhibitions and customers visit our factory.




FAQ.

Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.

Q: How to Choose a proper chamber?
A: Please let us know the product to be tested, include the max. size, the quantity per test, lowest shock temperature required and power-on test (mainly for electronic products or device) needed or not. We will provide several models to you for reference, the specification sheet in detail will be provided ASAP.

Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard Environmental Chambers, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: What's the delivery term?
A: If we don't have any units in stock. normally, the delivery time is 25 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box (fumigation-free wooden case) for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.

Q: Do you have any certificates for this chamber or for your company?
Yes, we got CE, RoHS and FCC certificates for the normal models. Sailham have also got the SGS and BV certificated, have passed ISO 9001: 2015.
