Test Instrument

High Quality Hydraulic Pressure Test Device for Gas Cylinder

Hangzhou ChengYingYi Energy Technology Co., Ltd.
  • Max Diameter of Workpiece:<500mm
  • Mass Scope of Workpiece:<900kg
  • Type:Pressure Test
  • Maxcapacity:<1000KN
  • Accuracy Grade:0.5
  • Load Way:Electronic Load

Base Info

  • Model NO.:CYY-2
  • Loading Method:Static Load
  • Display:Digital
  • Control:Computer Control
  • Weight:11.3kg
  • Power Source:AC380V
  • Test Pressure:30~45MPa
  • Test Product:Gas Cylinder
  • Transport Package:Wooden Box
  • Specification:CYY-2
  • Trademark:CYY ENERGY
  • Origin:Zhejiang, China
  • Production Capacity:2000sets,Year

Description

Basic Info.

Model NO. CYY-2 Loading Method Static Load Display Digital Control Computer Control Weight 11.3kg Power Source AC380V Test Pressure 30~45MPa Test Product Gas Cylinder Transport Package Wooden Box Specification CYY-2 Trademark CYY ENERGY Origin Zhejiang, China Production Capacity 2000sets/Year

Product Description

High Quality Hydraulic Pressure Test Device for Gas Cylinder




Test Machine Technical Parameters:

Gas Bottle Elevating Stroke30mm
Stroke of the main shaft of driving~530mm
Angle of inclination of gas bottle150°
Motor Speed1400r/min
Size of gas bottle to testedDiameter:180~260mm; Height:1100~1600mm
Power supplyAC380V/50HZ
Rated test pressure22.5mpa
Bottle gripping stroke120mm
Motor power150kw
Working pressure0.5~0.6mpa
Air requirement per hour0.4m3
Speed of the vertically rotating main shaft19r/min

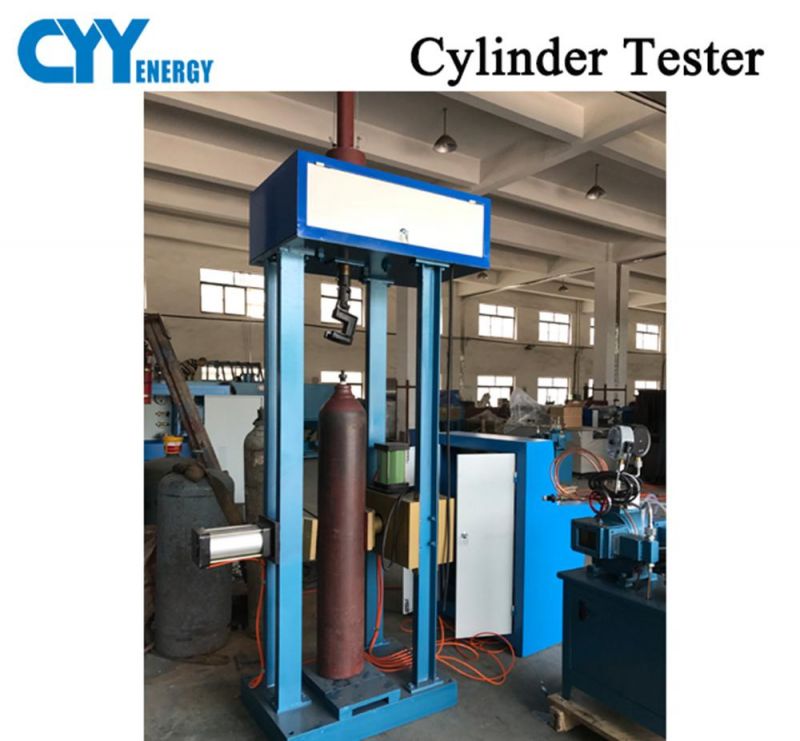

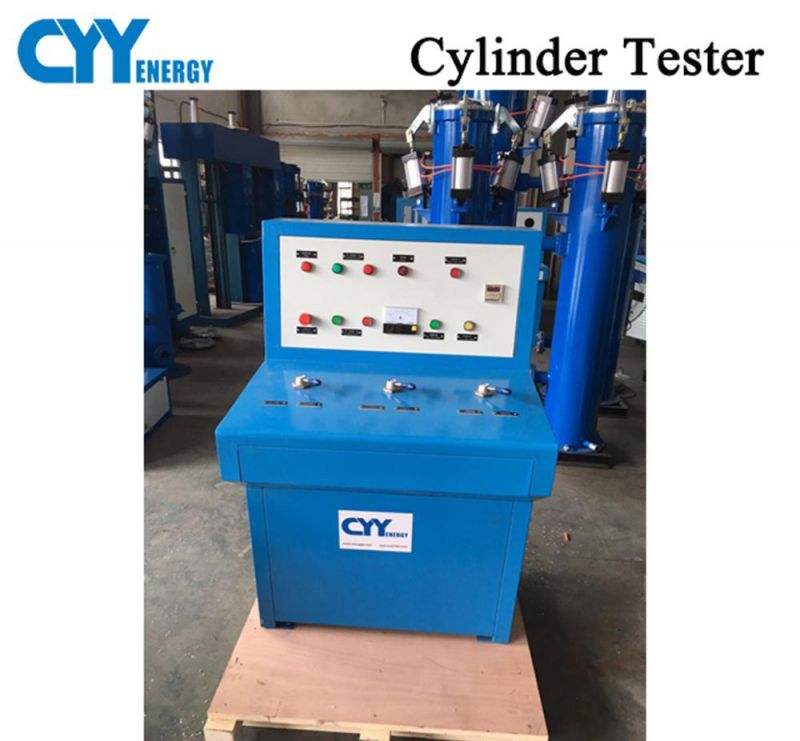

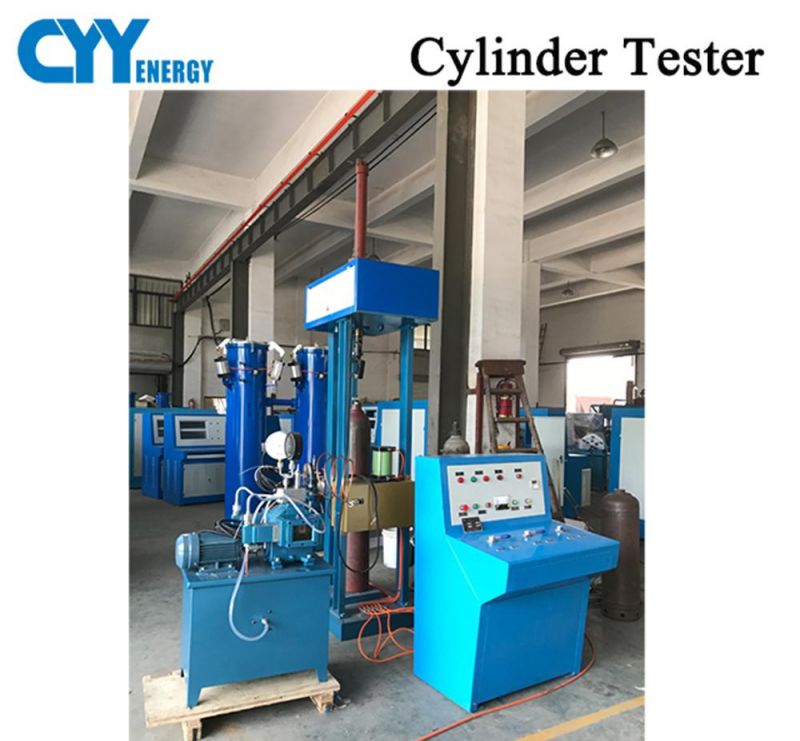

Test Machine Pictures:

High Quality Hydraulic Pressure Test Device for Gas Cylinder
High Quality Hydraulic Pressure Test Device for Gas Cylinder
High Quality Hydraulic Pressure Test Device for Gas Cylinder

Test Machine Packag and Loading:

High Quality Hydraulic Pressure Test Device for Gas Cylinder
