Calibration Device of Spring Hammer
Guangzhou Zhilitong Electromechanical Co., Ltd.- Type:Impact Testing Machine
- Maxcapacity:2j
- Accuracy Grade:0.5
- Load Way:Pendulum
- Loading Method:Dynamic Load
- Display:Scale Plate and Electrical Indicator
Base Info
- Model NO.:ZLT-CD1
- Control:Manual Control
- Weight:0-100Kg
- Power Source:AC220V
- Oil Cylinder Position:0
- IEC68-2-75:2j
- Transport Package:Wooden Case
- Specification:IEC60068-2-75
- Trademark:ZLTJC
- Origin:Guangzhou, Guangdong, China
- HS Code:9031809090
- Production Capacity:Preapre Every Time!
Description
Basic Info.
Model NO. ZLT-CD1 Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position 0 IEC68-2-75 2j Transport Package Wooden Case Specification IEC60068-2-75 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Preapre Every Time!Product Description

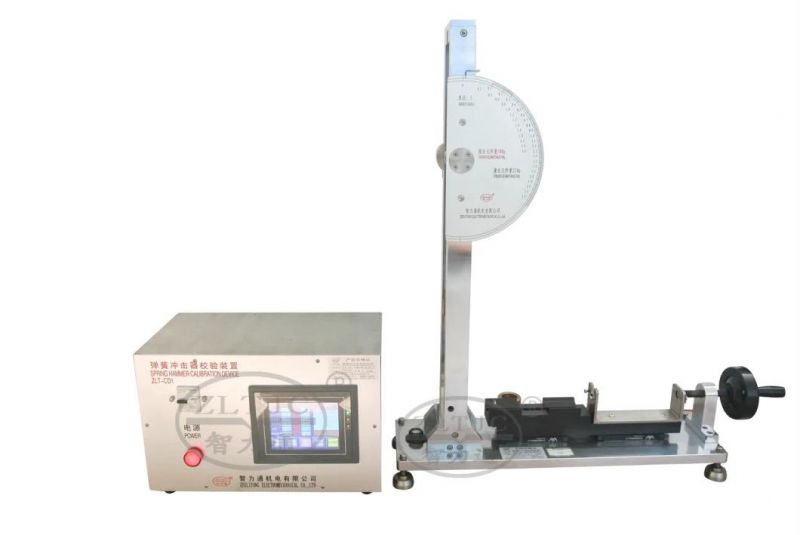

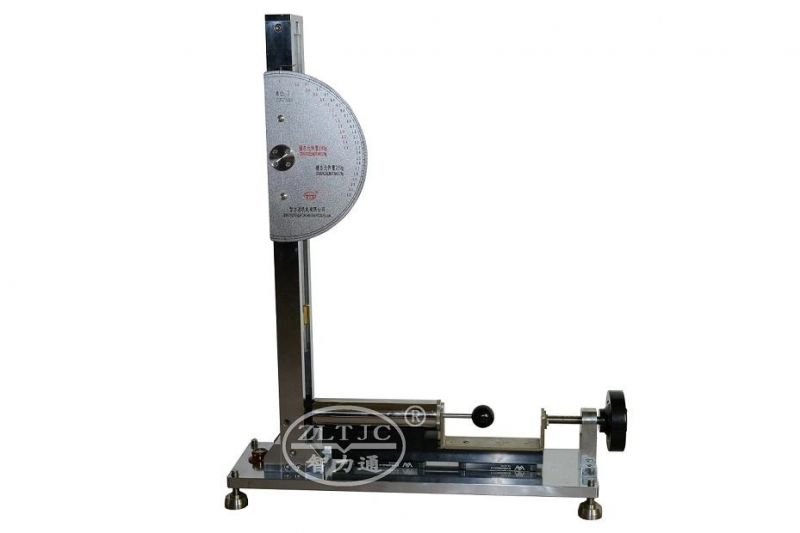

1. Spring Hammer Calibration Device:Model ZLT-CD:
For testing and calibrating spring-operated impact hammer, in accordance with IEC60068-2-75/1997-08 Annex B, Figure B. 1 to B. 4 with scale for impact energies from 0, 2J to 1J, 2J.
The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall.
Standard Outfit:
1 Pendulum with rigidly clamped spring at the lower end,
1 frame with bearing for the pendulum,
1 scale plate with drag pointer, scale of anodized alumininum,
2 release bases at the frame,
1 base plate with removable release device.
· Impact energy: Max. 2J.
· Pendulum: Steel.
· Diameter pendulum: 20mm.
· Length pendulum 635mm ± 2, 5mm.
· Pendulum H: 120mm ± 2mm.
· Pendulum D: 20mm ± 0, 5mm.
· Pendulum W: 4mm ± 0, 01mm.
· Release device: AC. Mechanic.
