• Model NO.：STYE-1000,2000
• Measuring Range：0-1000kn,0-2000kn
• Relative Indication Error：±1%
• Max. Distance Between The up and Down Be：310mm
• Max. Piston Stroke：90mm
• Rated Pressure of The Hydraulic Pump：40MPa
• Max. Piston Lift Speed：50mm,Min
• Piston Free Back Speed：20mm,Min.
• Noise：≤80dB
• Transport Package：Export Wooden Case
• Trademark：YUFENG
• Origin：Made in China
• Production Capacity：200PCS,Month

Basic Info.

Model NO. STYE-1000/2000 Measuring Range 0-1000kn/0-2000kn Relative Indication Error ±1% Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Rated Pressure of The Hydraulic Pump 40MPa Max. Piston Lift Speed 50mm/Min Piston Free Back Speed 20mm/Min. Noise ≤80dB Transport Package Export Wooden Case Trademark YUFENG Origin Made in China Production Capacity 200PCS/Month

Product Description

STYE-2000/1000 Digital Display Hydraulic Compression Testing Machine
Use:
  STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes, cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:
Efficient hydraulic power packs

Economic machines ideal for site use

Designed to meet the need for a simple, economic and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes
200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any
arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.
Specification:

STYE-1000
Max. testing power: 1000kN
Measuring range: 0-1000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 300×250mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10%  or AC380±10%
Outside size: 900×400×1090mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 650KGS
Noise: ≤80Db

STYE-2000
Max. testing power: 2000kN
Measuring range: 0-2000kN
Relative indication error: ±1%
Testing power Precision:grade1
Size of the bearing plate: 320×260mm
Max. distance between the up and down bearing
plates: 310mm
Max. piston stroke: 90mm
Rated pressure of the hydraulic pump: 40MPa
Power: AC220V±10% or AC380±10%
Outside size: 950×400×1160mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise: ≤80Db

Why Choose us?
1. Superior Quality & Reasonable Price
2. Professional Project Design Team & Complete Project Management System
3. Wide Selection for Products, including soil, asphalt, concrete, cement, motor and rock
4. Great Production Capacity, 14 modernized standard workshops
5. Experienced  Engineer & Satisfactory After-sales Service
6.MOQ:1 set is avaliable

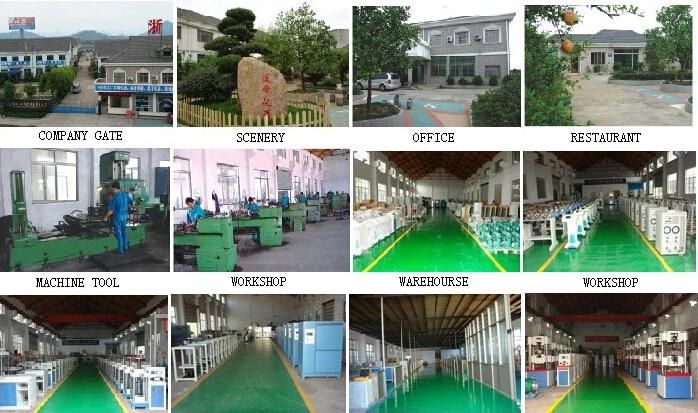

7.Cover an area of 26,680 square meter


Packaging and shipping

Packing Material: Plywood Case meeting export long transport requirement.

Packing Method: Horizontal Packing to saving more shipping cost.

Shipping : within 5-10 days after receive 100% payment .

Shipping way: shipped by sea or Air is available.


Our SERVICE

Your   inquiries   will be  replied in  24 hours,   24  hours  technical  support by email

Honesty to working for you, after or before  sale with our patient and sincerity.
