• Model NO.：YIT-1000
• Materia：Stainless Steel
• Heating System：High Speed Heater
• Cooling：Air Cooling Condenser
• Customization：Inner Chamber Size, Temperature&Humidity
• Temp.Range：-70oc-150oc
• Type：Material Testing Machine
• Maxcapacity：<1000kn
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：100-500kg
• Transport Package：Wooden Cases
• Specification：1000litres
• Trademark：Yuan Yao
• Origin：Guangdong, China
• HS Code：9032100000
• Production Capacity：100 Sets,Month

 ModelYICT-225YICT-306YICT-408YICT-800YICT-1000 Inner chamber size
 W×H×D (cm)60×75×5060×85×6080×85×50100×100×80100×100×100 Exterior chamber size
 W×H×D (cm) Depends on chamber designTesting temperature   range '-70ºC~150ºC(KS);-40ºC~150ºC(KL);-20ºC~150ºC(KR) Rapid-rate   temperature range -55ºC~+85ºC;-40~+80ºC;-20~+80ºC; 0~+80ºC Temperature gradient 3ºC/min, 5ºC/min, 8ºC/min, 10ºC/min, 15ºC/min (linear or non-linear,empty   loading),customization is available Temp. fluctuation ±0.3ºC  Temp. uniformity ±1.5ºC(empty loading after stablize for 30 mins) Temp. resolution 0.01ºC  Exterior chamber   material Cold rolled plate + Powder coating Interior chamber   material SUS#304 Stainless steel Insulation material PU+ fiberglass wool Circulation system Centrifugal fan air circulation system Heating system SUS# Stainless steel high-speed heater Refrigeration system Compressor + Finned evaporator + Air(Water) cooled condenser Controlling system Touch screen controller+SSR+PID Other components Test hole (50mm), Control status indicator, Interior light
 Compartment shelf (2 freely adjustable)Safety protection device Overheat protection circuit breaker,Compressor overload protection
 Control system overload protection, Overload indicator
 Phase sequence protection, High voltage and low voltage protection
 Over temperature protection, Fan overcurrent protectionPower supply AC 3Ψ380V 60/50Hz Customization service Non-standard or special requirements are all welcome
5.Customization service is available, we can set & design equipments according to your own specific requirements!

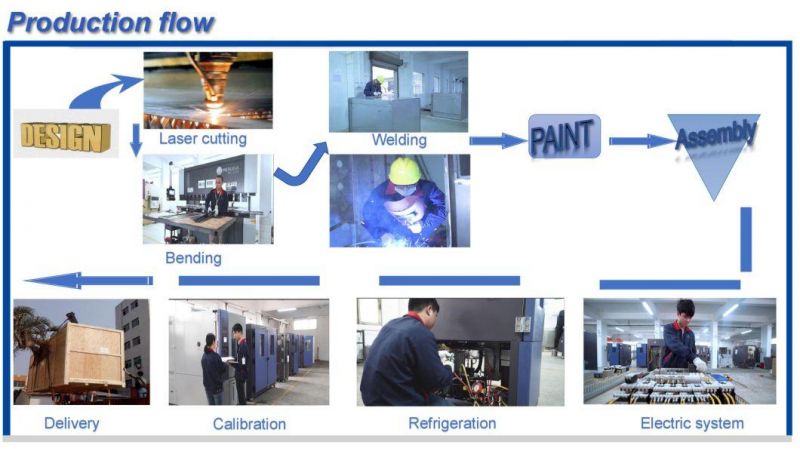

6.Production Line:
We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.

We produce in strict accordance with international safety standard.

Many stock spare parts in warehouse ensure customer can get soon when they need.

7.In the past years, Yuanyao has exported more than 2,000 chambers to more than 70 countries all over the world.

1. Pre-sale service : Confirm customer's requirement to send suitable proposal.

2. Make final confirmation before production(machine outlook design and technical parameters).

3. Update the latest production status to our customer and prepare full sets of machine operation documents and operation video(if customer need). We also welcome our customer to our factory for check before delivery.

4. After-sale service: Provide 1 years warranty for spare parts.

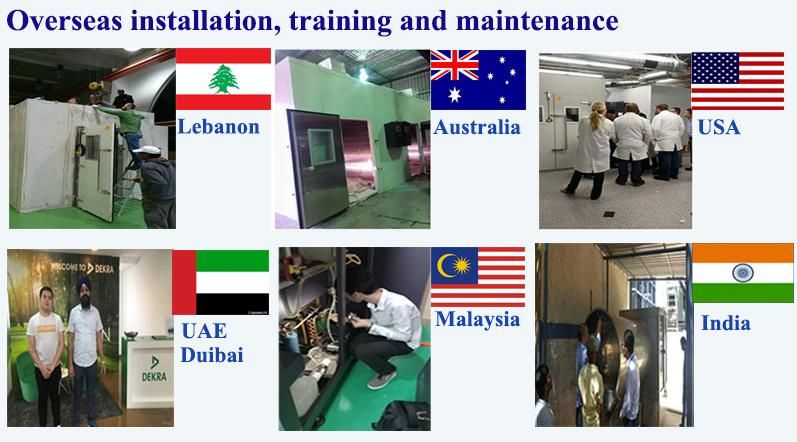

   Overseas technical support and onsite installation is available.

   24 hours standby on skype, wechat, phone,etc.

8.CE, SGS, ISO 9001:2015 certified manufacturer.

If you want to know more about the fast change temperature chamber,feel free to contact me any time.

Welcome to inquiry, and thanks for your reading !
