• Model NO.：HJ-68
• Flow Control Method：Manual Adjustment (Rotor Flowmeter)
• Spray Distance：2.5*3 Meters (Control by Test Personnel)
• Maximum Load-Bearing Capacity of Turntab：50kg
• Lifting Range of Turntable：Not Liftable (Fixed)
• Water Spray Method：Recyclable
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Flow Control Method Manual Adjustment (Rotor Flowmeter) Spray Distance 2.5*3 Meters (Control by Test Personnel) Maximum Load-Bearing Capacity of Turntab 50kg Lifting Range of Turntable Not Liftable (Fixed) Water Spray Method Recyclable Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

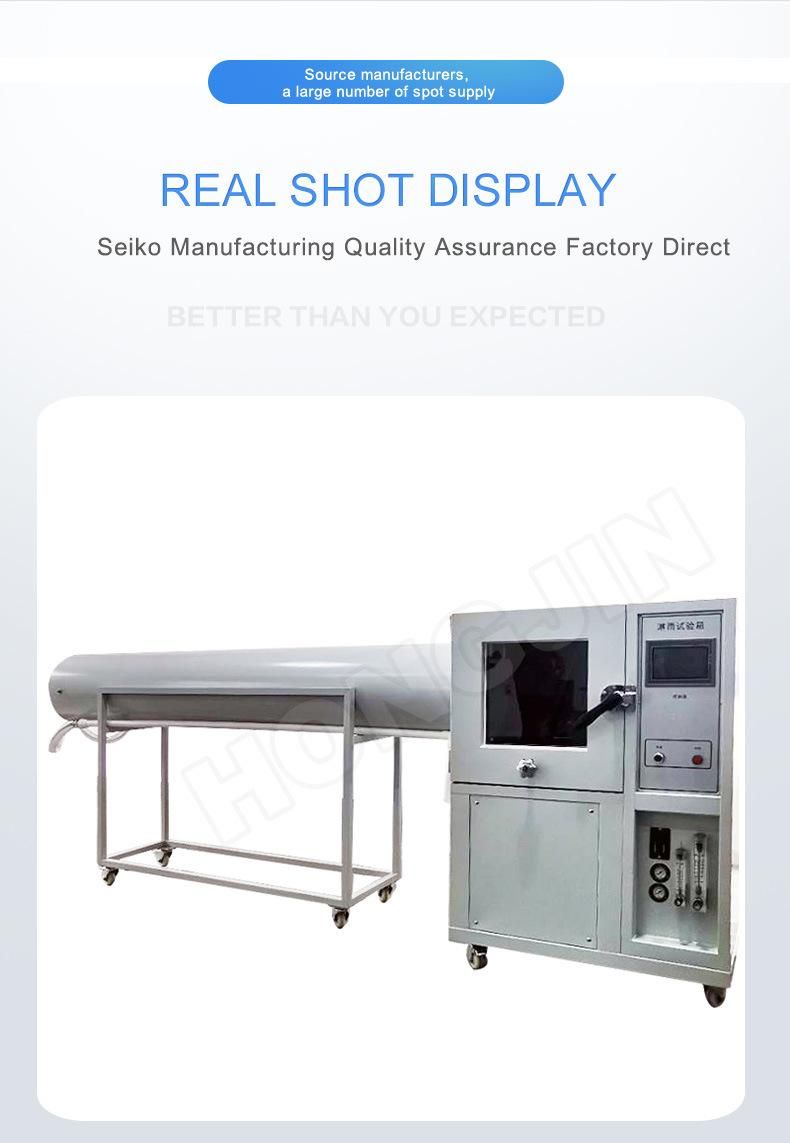

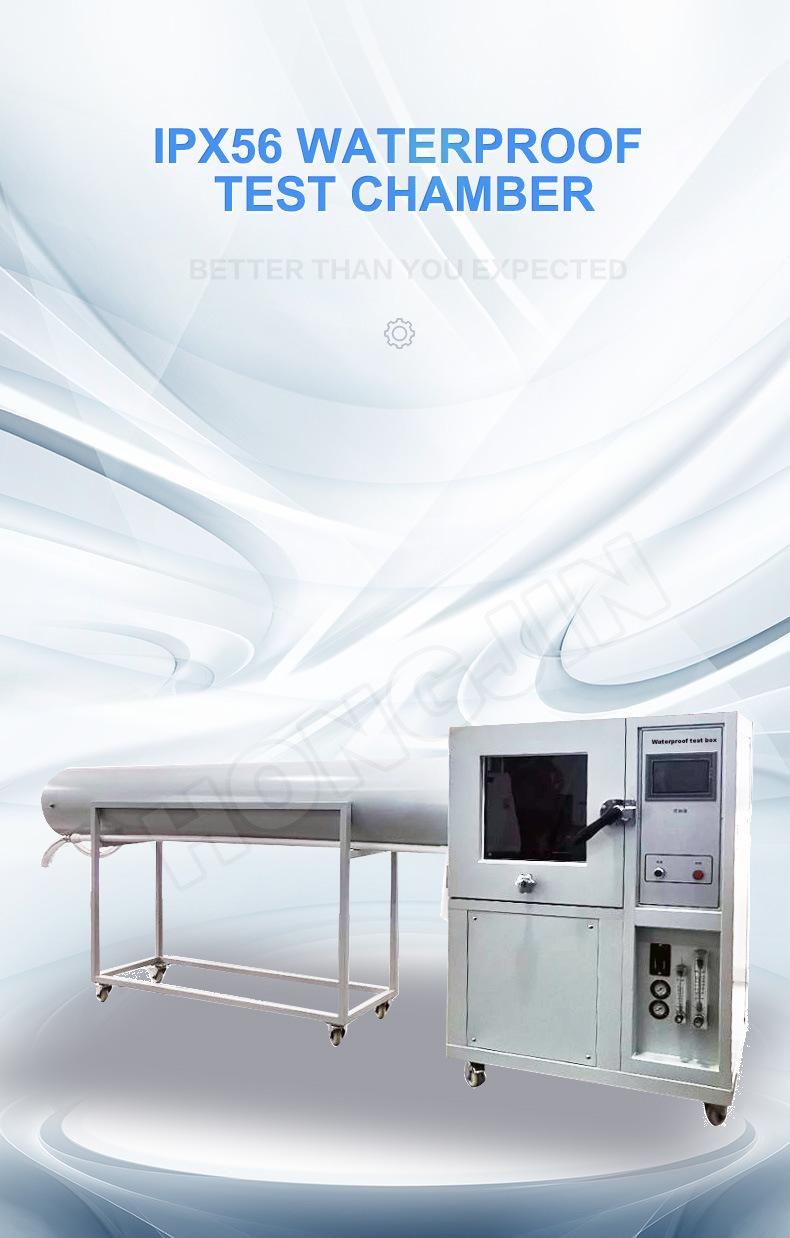

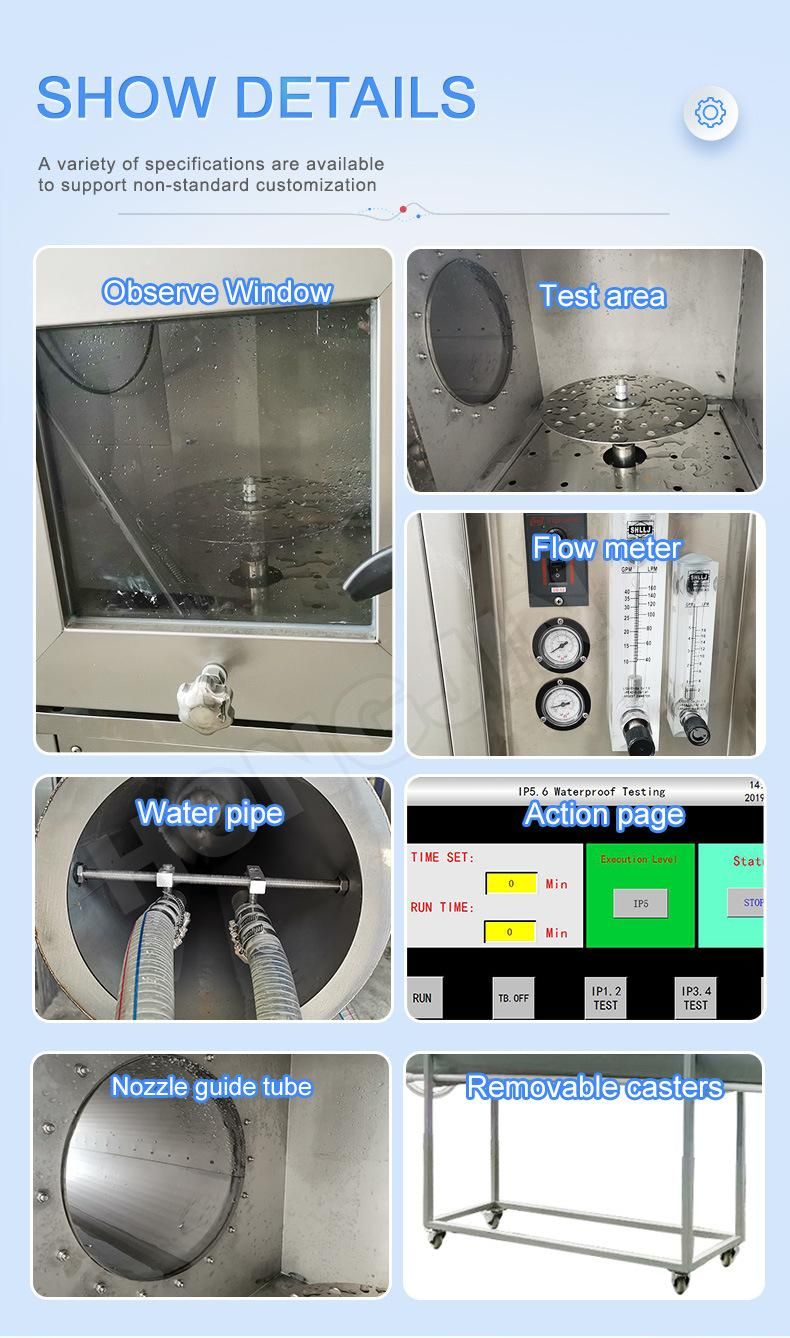

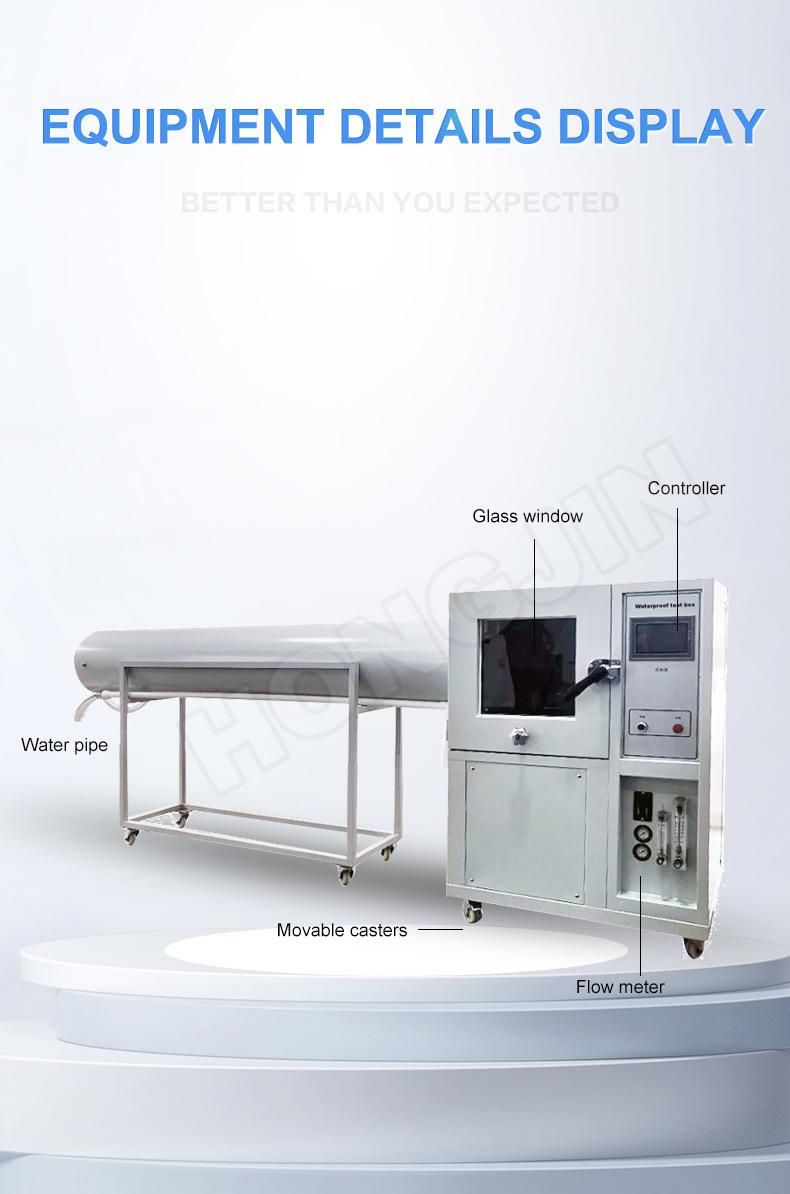

Application background of ipx56 chamber
Natural water (rain water, sea water, river water, etc.) destroys products and materials, causing incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength reduction, expansion, mold, etc., especially It is an electrical product that is very easy to cause a fire due to a short circuit caused by rain. Therefore, it is an indispensable key procedure to conduct a shell protection water test for a specific product or material.
General application areas: outdoor lamps, household appliances, auto parts and other electronic and electrical products.

Application background:
Natural water (rain water, sea water, river water, etc.) destroys products and materials, causing incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength reduction, expansion, mold, etc., especially It is an electrical product that is very easy to cause a fire due to a short circuit caused by rain. Therefore, it is an indispensable key procedure to conduct a shell protection water test for a specific product or material.
General application areas: outdoor lamps, household appliances, auto parts and other electronic and electrical products


HJ-IPX5.6-600	Inner box size: W600xD600xH600
HJ-IPX5.6-800	Inner box size: W800xD800xH800
HJ-IPX5.6-1000	Inner box size: W1000xD1000xH1000
IPX5 spray water flow	12.5±0.625 (L/min)
IPX6 spray water flow	100±5 (L/min)
Flow control method	Manual adjustment (rotor flowmeter)
Spray distance	2.5*3 meters (control by test personnel)
How to fix the spray gun	Mechanical fixation (the angle of spray gun can be adjusted manually)
Maximum load-bearing capacity of turntable	50KG
Lifting range of turntable	Not liftable (fixed)
Water spray method	Recyclable

Equipment function:
The main function of the equipment is to use electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components, etc., to the physical and other related properties of the products under climatic conditions that simulate rain. carry out testing. After the test, judge whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification and factory inspection of the product.

Executive standard:
Comply with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)", GB4208-2008 "Enclosure Protection Level (IP Code)" 14.2.5, 14.2.6 clauses and diagrams 6 and GB7000.1 "Lamps Part One: General Requirements and Tests" 9.2.6, 9.2.7 and Figure 9.5 requirements.
