• Model NO.：YT-SCT500
• Dimension：350(L)×300(W)×510(H)mm
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou
• HS Code：9024800000

Basic Info.

Model NO. YT-SCT500 Dimension 350(L)×300(W)×510(H)mm Transport Package Wooden Box Trademark YANTE Origin Hangzhou HS Code 9024800000

Product Description

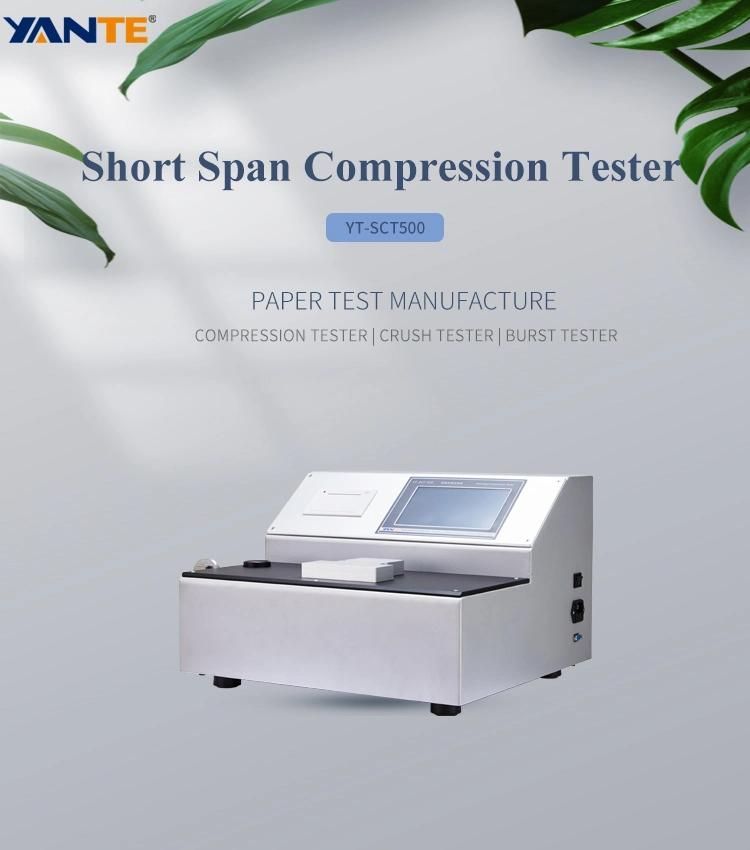

The Short Span Compression Tester is used for paper and cardboard which make cartons and boxes, and it is also suitable for paper sheets prepared by the laboratory in the pulp test.

Double cylinders, pneumatic clamping of the sample, reliably guarantee the parameters specified by the standard.24-bit precision analog-to-digital converter, ARM processor, fast and accurate samplingIt can store 5000 sets of batch data, which is convenient for users to check historical measurement data.Driven by a stepping motor, the speed is accurate and stable, and it can return quickly to improve the test efficiency.The vertical and horizontal tests can be carried out in the same batch, and the vertical and horizontal average values can be printed.Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.The real-time force value-displacement curve is displayed during the test, which is convenient for users to observe the test process.

Paper,cardboard,paper core,base paper

ISO 9895,GB/T 2679·10

No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 50W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	(10~500) N
5	Specimen holding force	(2300 ± 500 )N(Gauge pressure 0.3-0.45Mpa)
6	Resolution	0.1N
7	Indication error	±1%(Range 5%~100%)
8	Indication variability	≤1%
9	Free spacing of specimen clamps	0.70 ± 0.05 mm
10	Test speed	(3±1 )mm/min (Relative moving speed of two fixtures)
11	Specimen holding surface size	30×15 mm
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Print	Built-in thermal printer
14	Gas source	≥0.5MPa
15	Dimension	530×425×305 mm
16	Net Weight	34kg around
