• Model NO.：PCLC-901D prelocator
• Cable Type：Power
• Power：Electricity
• Certification：CE, RoHS
• Customized：Non-Customized
• Color：Orange
• Sampling Frequency：200MHz
• Gain Range：0-70dB
• Low Voltage Impulse Voltage：32V
• Max.Resolution：0.4m
• Locating Range：100km
• Dead Zone：2m
• Battery：L-Ion Battery Rechargeable Batteries
• Communication Interface：USB, Bluetooth
• Power Supply：Input AC220V, 50Hz, Current 1A, Charge for 6 Hours
• Dim.：274×218×81mm
• Weight：3.5kgs
• Operating Temperature：-10ºC-40ºC
• Humidity：5-90%Rh
• Elevation：<4500m
• Transport Package：Export Standard Cartons with Strong Pallets
• Specification：CE ROHS
• Trademark：grewin
• Origin：China
• HS Code：8543201000
• Production Capacity：5 PCS ,Week

Basic Info.

Model NO. PCLC-901D prelocator Cable Type Power Power Electricity Certification CE, RoHS Customized Non-Customized Color Orange Sampling Frequency 200MHz Gain Range 0-70dB Low Voltage Impulse Voltage 32V Max.Resolution 0.4m Locating Range 100km Dead Zone 2m Battery L-Ion Battery Rechargeable Batteries Communication Interface USB, Bluetooth Power Supply Input AC220V, 50Hz, Current 1A, Charge for 6 Hours Dim. 274×218×81mm Weight 3.5kgs Operating Temperature -10ºC-40ºC Humidity 5-90%Rh Elevation <4500m Transport Package Export Standard Cartons with Strong Pallets Specification CE ROHS Trademark grewin Origin China HS Code 8543201000 Production Capacity 5 PCS /Week

Product Description

Product Description: li-ion batteries built-in storage download atas I Cable Fault pre Locator

1. GENERAL DESCRIPTION

   1. GENERAL :

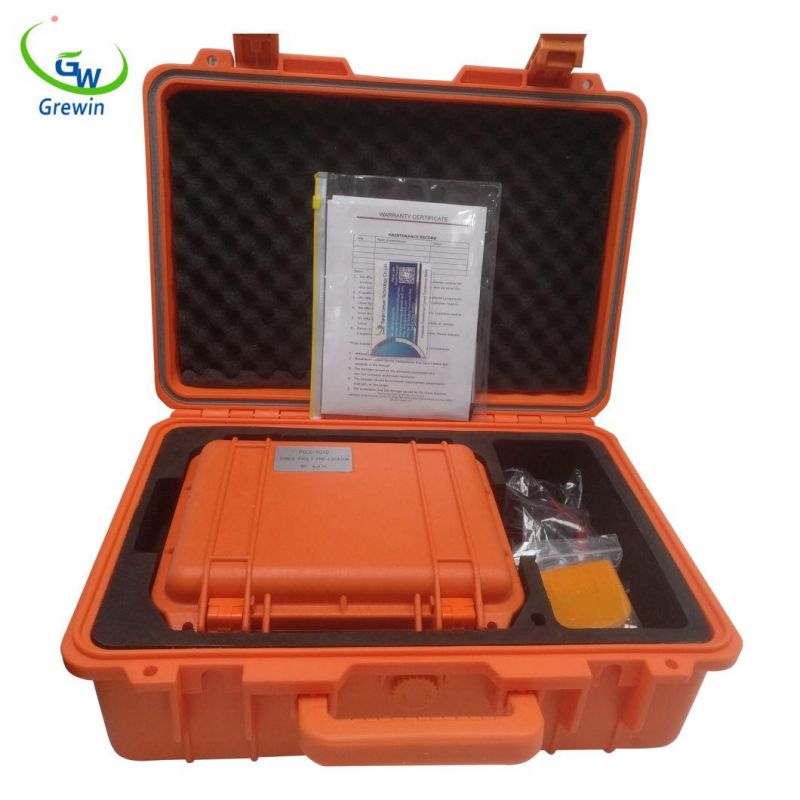

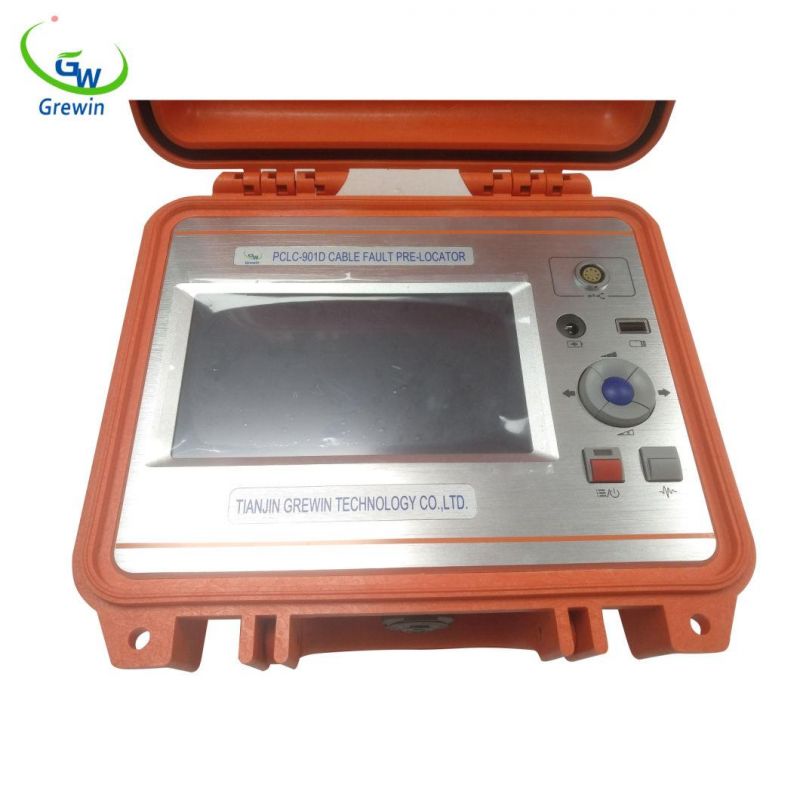

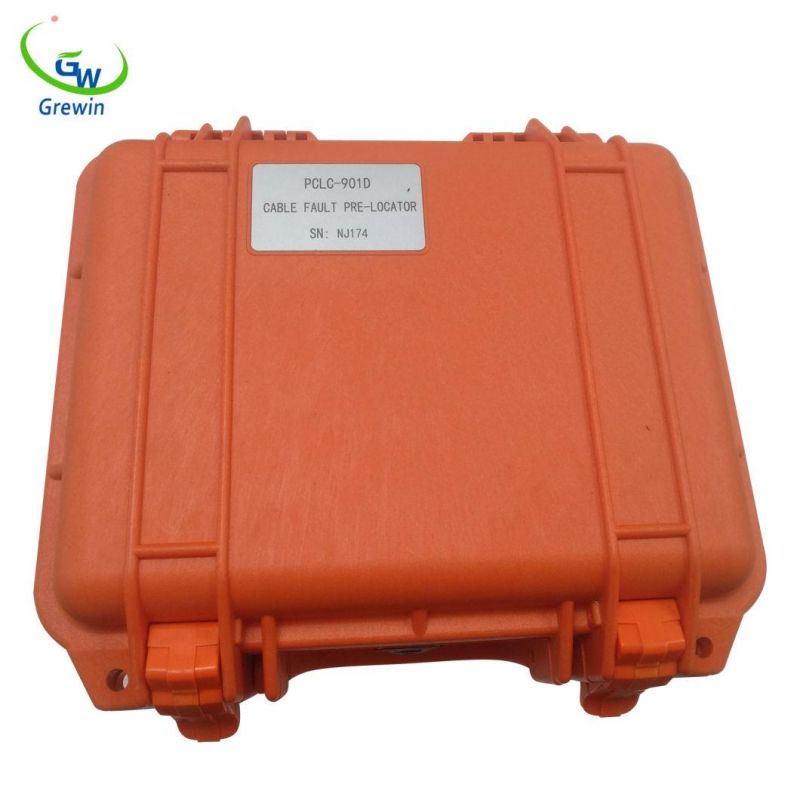

      The PCLC-901D Power Cable Fault Pre-locator is an easy operation device used for distance locating . It's easy to operate,support both touch screen/button operation and with friendly interface.

      PCLC-901D can be used alone under the low voltage impulse mode.
      Under the mode of impulse current,PCLC-901D needs to work with HVSG-500GX high voltage generator items.Under the multiple impulse mode,PCLC-901D also need PCLC-900C coupler.After distance locating,user could use PCLD-901P items for fault pinpointing. And these products can be combined into a set of high performance and innovative cable fault testing syste.
   2. .SPECIFICATION:

• Locating methods:	Low voltage impulse method Impulse current method Multiple impulse method
  Sampling frequency:	200MHz
  Gain range:	0-70dB
  Low voltage impulse voltage:	32V
  Max.resolution:	0.4m
  Locating range:	100km
  Dead zone:	2m
  Battery:	L-ion battery rechargeable batteries,7.4 V endurance time over 7 hours
  Communication interface:	USB,bluetooth (optional)
  Power supply:	Input AC220V,50Hz,current 1A,charge for 6 hours
  Dim.:	274×218×81mm
  Weight:	3.5kgs
  Operating Temperature:	-10ºC-40ºC
  Humidity:	5-90%RH
  Elevation:	<4500m

           3.FUNCTION FEATHER:

• Multiple distance locating method:
  -Low current impulse method: apply to the locating of the low resistance fault. Short circuit fault, open circuit fault. It also can be used in the measurement of the cable length, the intermediate joints, T joints, and cable termination joint. This method also can be used to correct the wave velocity.
  -Impulse current method: apply to the high resistance fault, breakdown fault. Use the current coupler to gather signal from the earth wire
  -Multiple impulse method: improvement of the SIM method
• 200MHz real-time sampling
  -Advance tech.Upgrading for SIM method
  -Max. 0.4m measurement resolution,PCLC-901D has small blind zone and is special for the short cable and nearly-terminal fault cable
• Touch screen and press key operation
  -Touch operating screen with smart gesture operation
  -Support cursor drag-drop function and double-click function,easy to locate
  -Simple function menus with high performance.
• Big color LED screen, friendly interface
  -Simple function menus with high performance
• 7" LED screen,160°viewing angle,bright with 750cd/m2 to view under sunshine
  -PIP copy(pic. temporary storage). There'll be a main window and three temporary storage windows could check three waveform together.
• Waveform storage and PC communication
  -Special software management for software upgrade, backup and restore in device.
  -Waveform storage and communication with computer.
  -Internal storage of waveform.
  -Optional mini printer for waveform printing
  -Support connection with PC or laptop
• Power management
  -Back light weakens if no operation in 2 min and power off in 10 min. if no operation.
  -Built-in Polymer Lithium-ion battery.
  -Working time could reach 7 hours for each use.


Company introduction:

1.certification

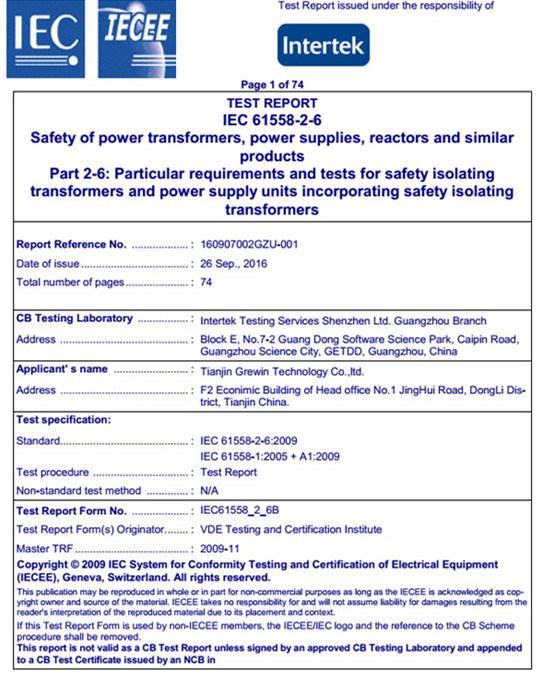

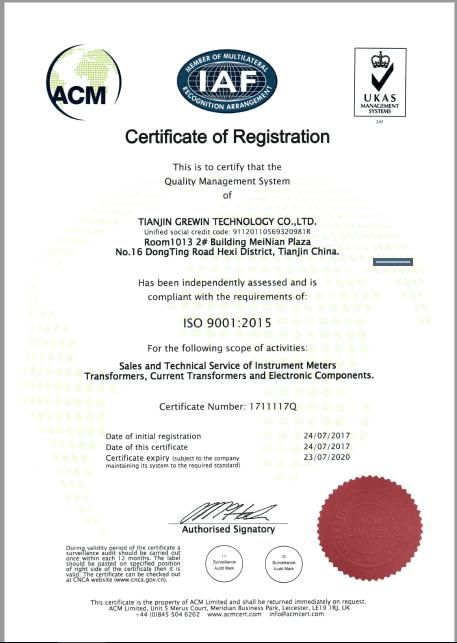

We have passed ISO9001:2015,CE,SGS approval and IEC report
