• Model NO.：UP-6300
• Rain Pressure：80~400kpa Adjustable
• Speed of Spray Swing Pipe：IP3 15 ,Min;IP4 10,Min

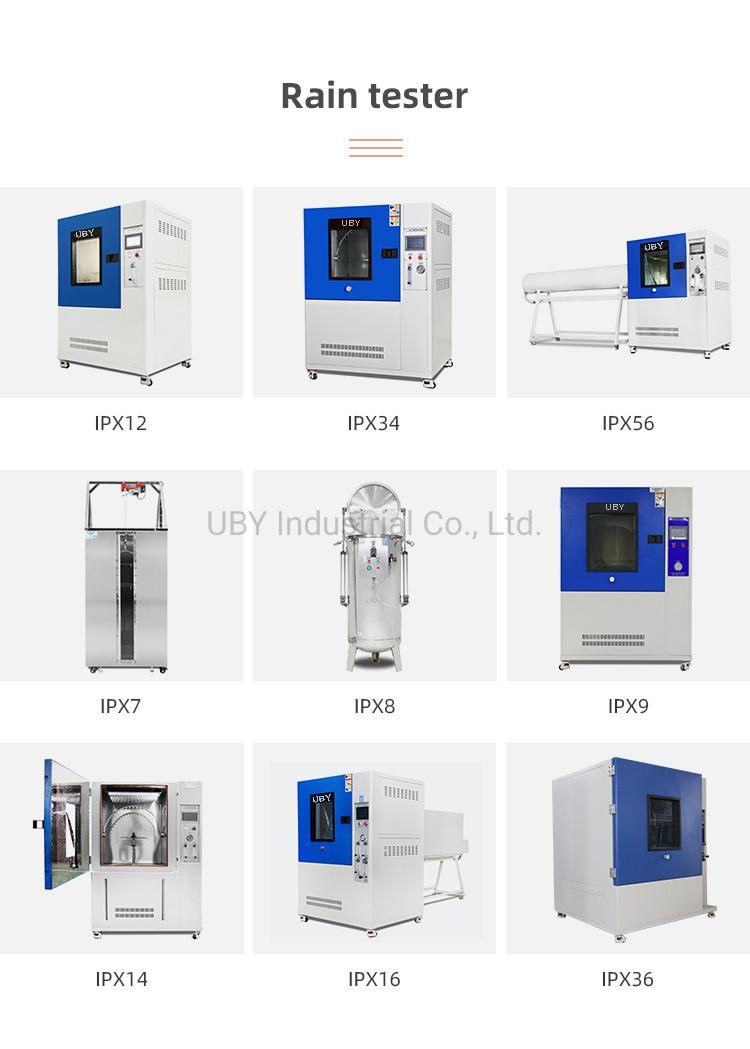

• IP Degree：Ipx12,Ipx34,Ipx56,Ipx7,Ipx8,IP9K
• Service Type：OEM , ODM , Non-Standard Available
• Machine Style：Box Type and Open Type
• Application：School, Hospital, Lab, Factory,Industry
• Accuracy Grade：0.5
• Compressor：France Imported Tecumseh
• Transport Package：Professional Export Packaging
• Specification：40L,80L,150L,225L,408L,800L,1000L or Customized
• Origin：China
• HS Code：8514300090
• Production Capacity：1000,Year

Basic Info.

Model NO. UP-6300 Rain Pressure 80~400kpa Adjustable Speed of Spray Swing Pipe IP3 15 /Min;IP4 10/Min IP Degree Ipx12,Ipx34,Ipx56,Ipx7,Ipx8,IP9K Service Type OEM / ODM / Non-Standard Available Machine Style Box Type and Open Type Application School, Hospital, Lab, Factory,Industry Accuracy Grade 0.5 Compressor France Imported Tecumseh Transport Package Professional Export Packaging Specification 40L,80L,150L,225L,408L,800L,1000L or Customized Origin China HS Code 8514300090 Production Capacity 1000/Year

Product Description

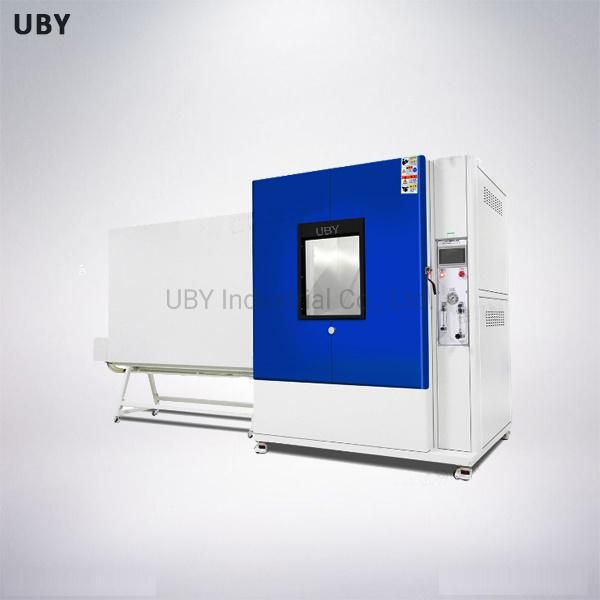

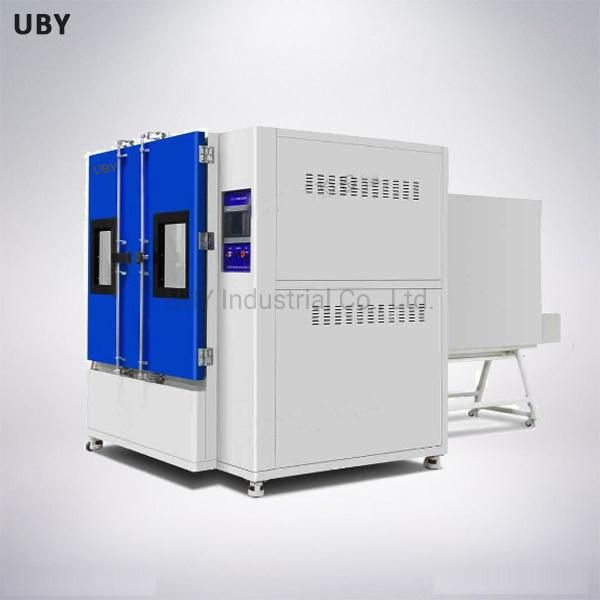

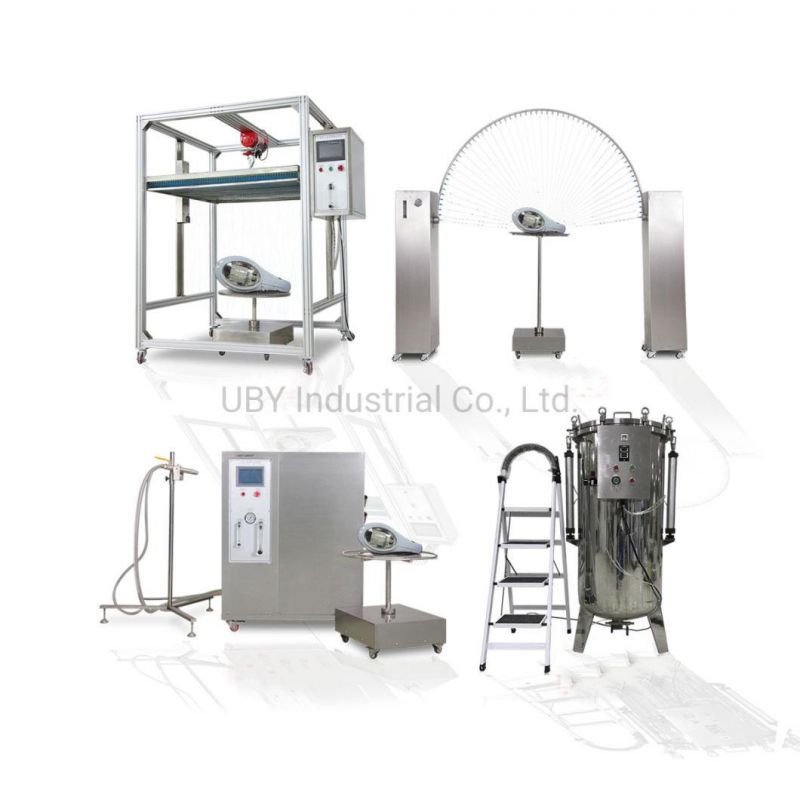

Laboratory Simulate Climatic IPX1 To IPX9 Programmable Electronic IP Waterproof Rain Spray Test Chamber

Application: natural water (rainwater, seawater, river water, etc.) damages products and materials, causing economic losses that are hard to estimate every year. The damage mainly includes corrosion, discoloration, deformation, strength reduction, expansion, mildew, and so on, especially the electrical products are easy to cause fire due to short circuits caused by rainwater. Therefore, it is an essential key procedure to carry out the water test for specific products or materials.
General application fields: outdoor lamps, household appliances, auto parts, and other electronic and electrical products. the main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their parts under the climate conditions of simulated rain, splash, and water spray. After testing, the performance of the product can be judged by verification, so as to facilitate the design, improvement, verification, and delivery inspection of the product.
According to International Protection Marking IP CODE GB 4208-2008/IEC 60529:2001, IPX3 IPX4 Rain Test Equipment are designed by and made by GRANDE, and reference to GB 7000.1-2015/IEC 60598-1:2014 Part 9(Dustproof, Anti-solids and Waterproof) Waterproof test standard.

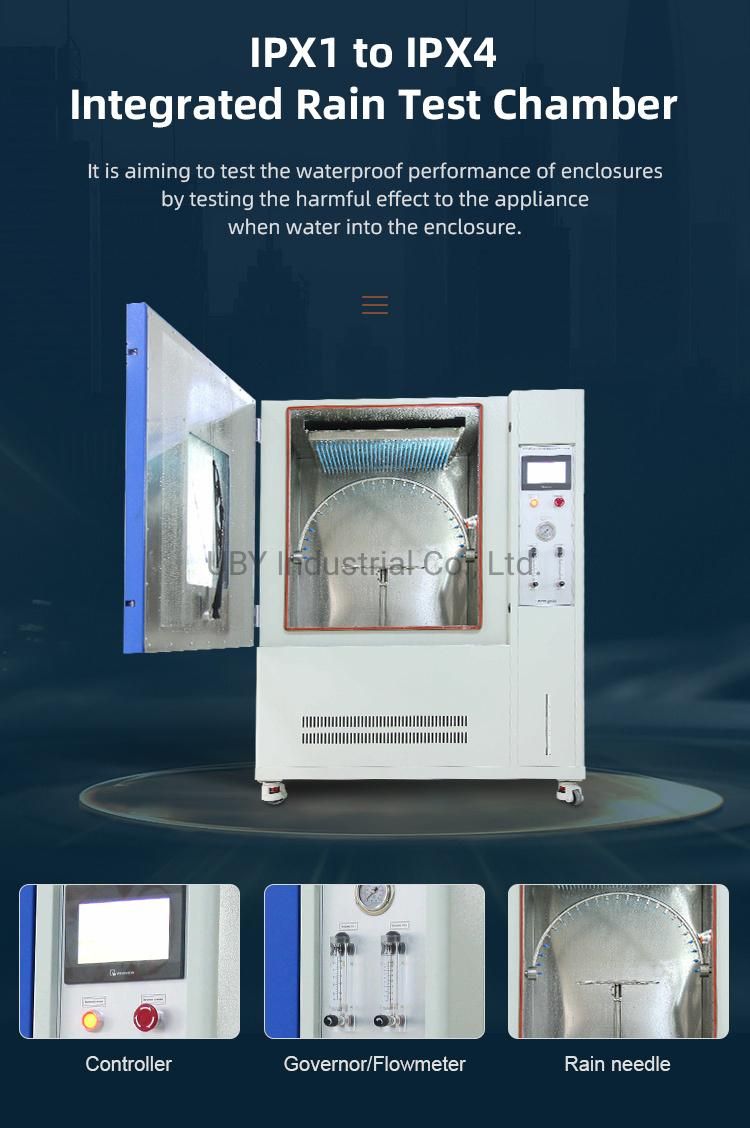

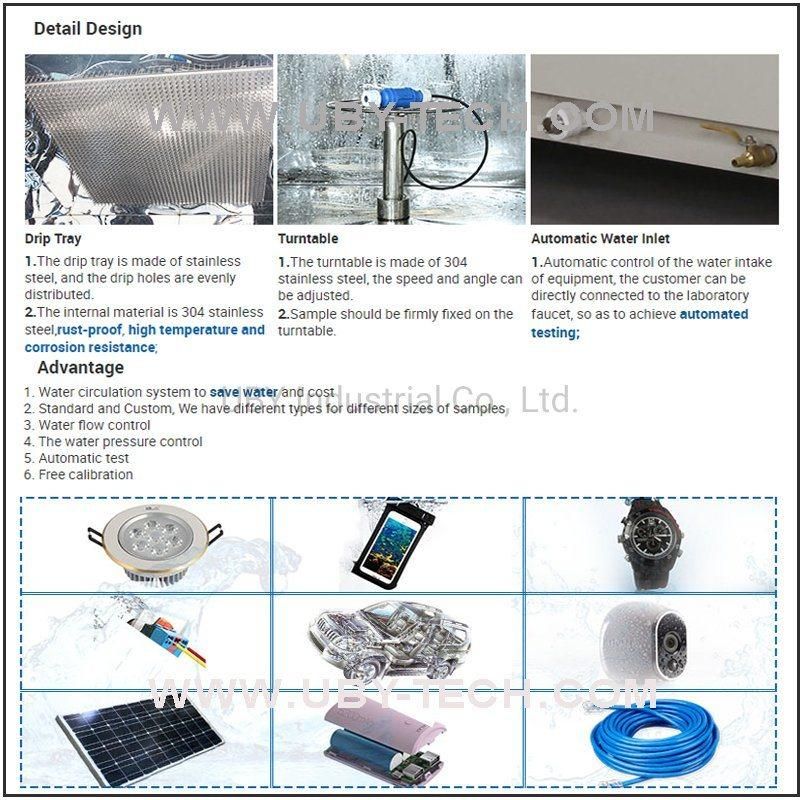

1. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During the test, the sample would spin around the centerline.
2. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate sleeper, avoid scale blockage needle tip.

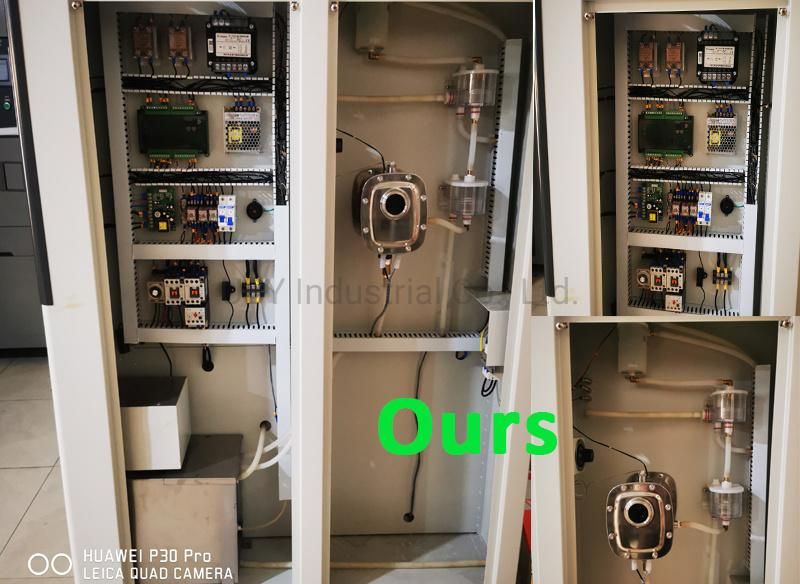

3. PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
4. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hanging a wall.
5. Best after-sales service: One year of free parts maintenance.

Main Specification:

Model	UP-6300
Working size	850*900*800 mm (D*W*H)
Outside size	1350*1400*1900mm mm (D*W*H)
Rain test swing pipe radius	400mm
Swing Pipe	180°~180°~180°/12s°
Internal diameter of pipe	ø 15mm
Nozzle Specification	ø0.8mm
Water flow	0.6 L /min
Nozzle space	50mm
Nozzle Qty	25 pcs
Turntable diameter	ø 500mm
Turnplate speed	3~17turns/min(adjustable)
Power	380V±5%,50Hz,3P+N+G
Weight	about 100Kg

Our service:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products is confirmed shipping time and inform the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

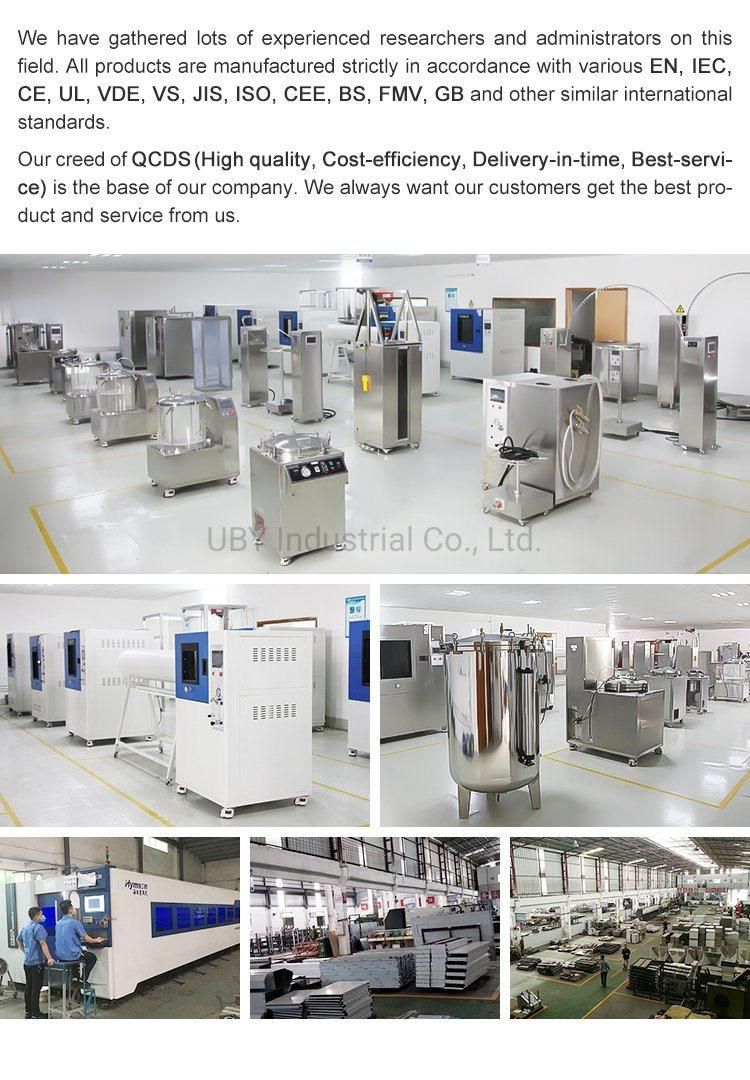

     Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
      Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
 2. What about the delivery term?
 For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
 If there is no stock, normally, the delivery time is 15-20 working days after payment received;
 If you are in urgent need, we will make a special arrangement for you.
 3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on site.
