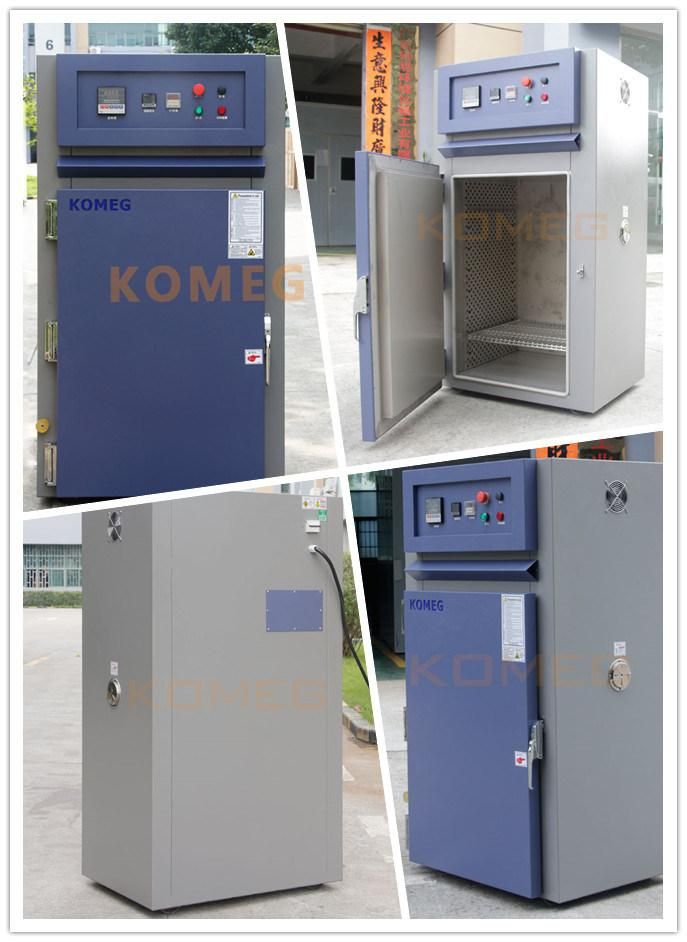

LCD Screen Vertical Hot Air Circulating Vacuum Drying Oven
Guangdong Komeg Industrial Co., Ltd.- After-sales Service：1 Year
- Power Supply：380V ,220V
- Certification：CE, ISO
- Warranty：1 Year
- Working Chamber Volume (L)：60*60*60(Cm)
- Temp. Range：60°c~200°c
Base Info
- Model NO.：KUO-200
- Power：3kw
- Vacuum Limit：130PA
- Temp. Constancy：±1.0 ºC
- Temp. Uniformity：±2.0 ºC
- Interior Material：Stainless Steel Plate
- Insulation Material：Glass Wool
- Transport Package：Strong Plywood Case, Meet International Standard
- Specification：Standard and Customized
- Trademark：KOMEG
- Origin：Dongguan, China
- HS Code：90321000
- Production Capacity：1000 Sets Per Yesr
Description
Specifications Model Power Temp Range Vacuum limit Working chamber size ( W*H*D ) mm KUO-27-200 3KW 60 ºC -200 ºC 130Pa 300*300*300 KUO-72-200 4KW 60 ºC -200 ºC 133Pa 400*450*400 KUO-100-200 5KW 60 ºC -200 ºC 133Pa 450*450*450 KUO-290-200 7KW 60 ºC -200 ºC 130Pa 600*950*500 Note:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available Specifications of drying oven Model KOV-50 KOV-100 KOV-200 KOV-290 KOV-500 Interior size (W*H*D)mm 400*350*350 450*500*450 600*600*600 600*950*500 800*1050*600 Exterior size (W*H*D)mm 1010*650*760 1110*800*1100 1260*900*1100 870*1590*640 1160*1760*880 Capacity(KVA) 3.5 3.5 4.5 4.5 6 Power AC220V±10% 1Φ 50Hz/60Hz AC 380V±10% 3Φ4wire 50Hz/60Hz Temp. range 50 ºC~ 200 ºC( 300 ºC) Temp. constancy ±1.0 ºC Temp. uniformity ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) Heat uptime 50 ºC to 200 ºC within 50 min Interior material Stainless steel plate Exterior material Painted Stainless steel plate Insulation material Glass wool Safety devices No fuse breaker, over temp protection, ceramic fuse Accessories Recorder, insolating layer Note:
1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available
Packaging
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
After-sale service
If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
