• Model NO.：YAW-2000
• Loading Method：Static Load
• Display：Computer
• Control：Computer Control
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Origin：Zhejiang, China
• HS Code：90248000
• Production Capacity：50sets,Month

Basic Info.

Model NO. YAW-2000 Loading Method Static Load Display Computer Control Computer Control Power Source AC380V Oil Cylinder Position Under Transport Package Wooden Case Origin Zhejiang, China HS Code 90248000 Production Capacity 50sets/Month

Product Description

YAW-2000 Computer Control Electro-hydraulic Servo Compression Testing Machine

1. Usage

YAW-2000 computer control electro-hydraulic servo compression testing machine is mainly used for the compressive strength test of cement, concrete, high strength concrete samples and components and other building materials products. With appropriate fixtures and measuring devices, it can meet the splitting tensile test, bending test, static pressure elastic modulus test of concrete. It can automatically get the result parameters of the relevant standards.


1. Structure introduction

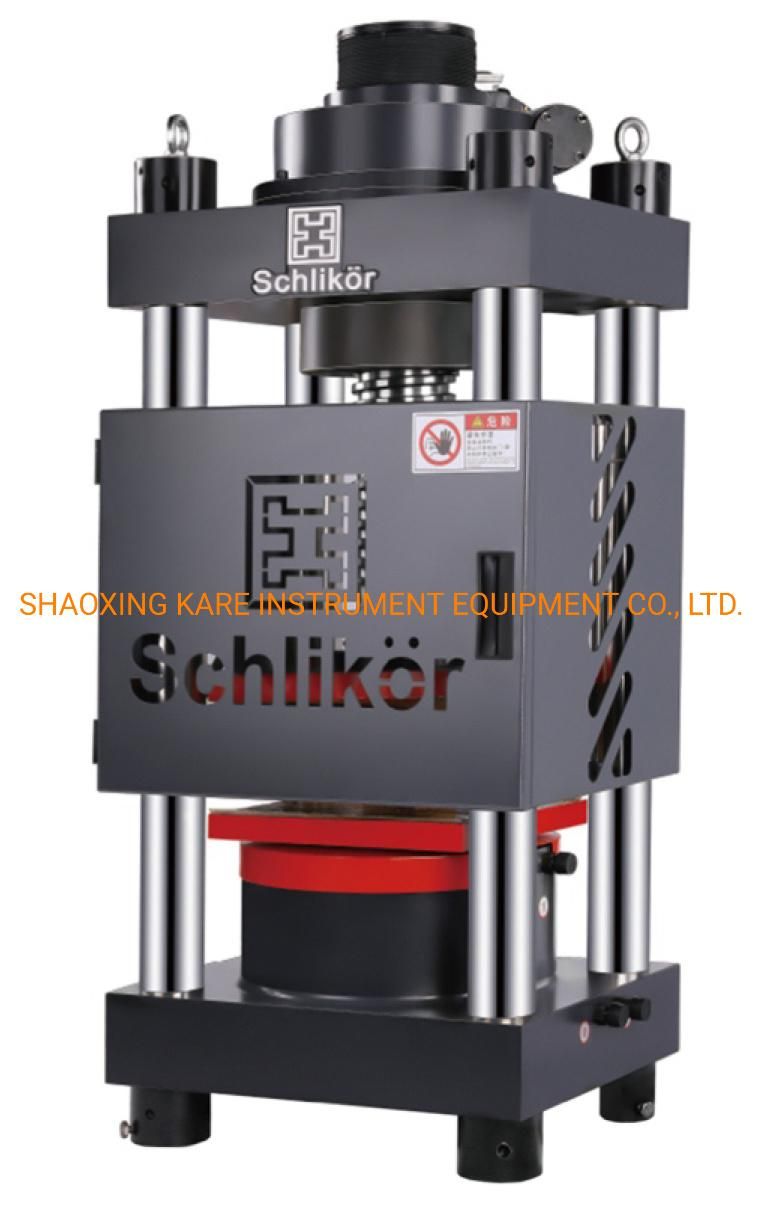

This machine is composed of a load frame and a oil source control cabinet. The test machine adopts four column frame design, which has simple structure and good stability. The test space is adjusted by motor screw.


1. Main characteristics

1. Load cell measuring: adopts high precision sensor, with advantages of good linear repeatability, strong shock resistance, stable and reliable, and long life.
2. Load mode: computer control automatic loading.
3. Multiple protection: dual protection of software and hardware. The piston stroke adopts over stroke electric shutdown protection. Automatic shutdown protection when the load exceeds 2 ~ 5% of the maximum load.
4. Space adjustment: the test space is adjusted by motor screw.
5. Test result: All kinds of test results can be obtained automatically according to user's requirements.
6. Test data: Access database is used to manage the testing machine software, which is convenient to query the test report.
7. Data interface: The database interface is reserved in the software, which is convenient for the laboratory to upload data and test data management.

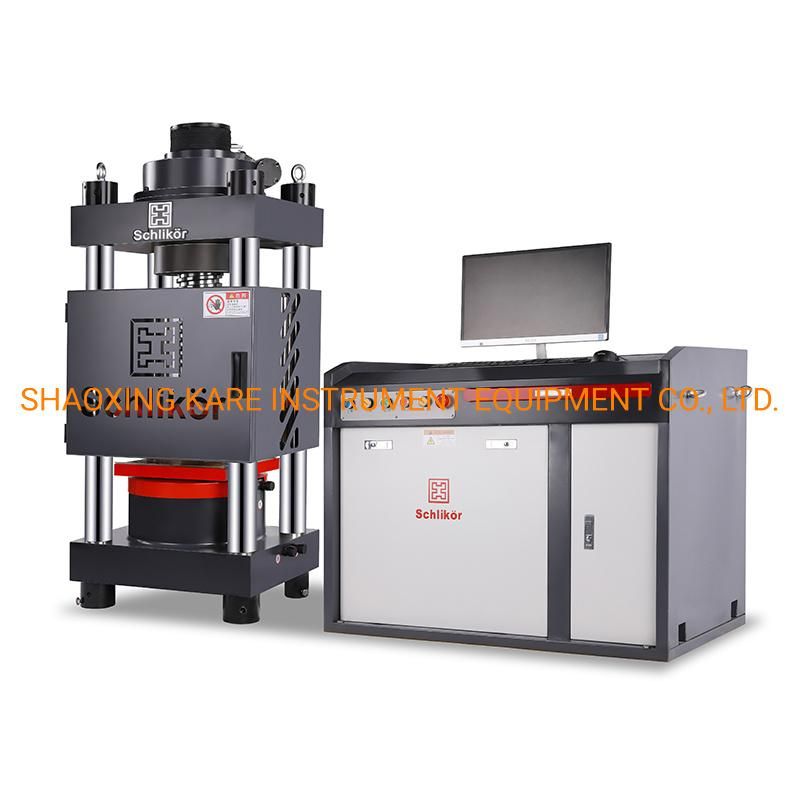

8. Structure composition: composed of a load frame and an oil source control cabinet, reasonable layout and easy to install.
9. Control mode: adopts force closed-loop control. It can realize equal load rate loading or equal stress rate loading.
10. Safety protection: The design of the door type protective net ensures the safety of the test personnel, and no one will be hurt when the specimen bursts.



1. Main technical parameters

Max. test force	2000KN
Accuracy	1
Measuring range	4%-100% FS
Test force indicating relative error	≤±1%
Load speed	0.3kN/s - 20KN/s
Control model	Computer control automatic hydraulic loading
Platen size	φ289mm
Max. distance between platens	360
Column distance between tow columns	330mm
Max piston stroke	90mm
Mortar power	1.5kW
Power	AC380v
Outline dimension	500*630*1640mm
Oil control measuring cabinet size	1000*550*780mm
