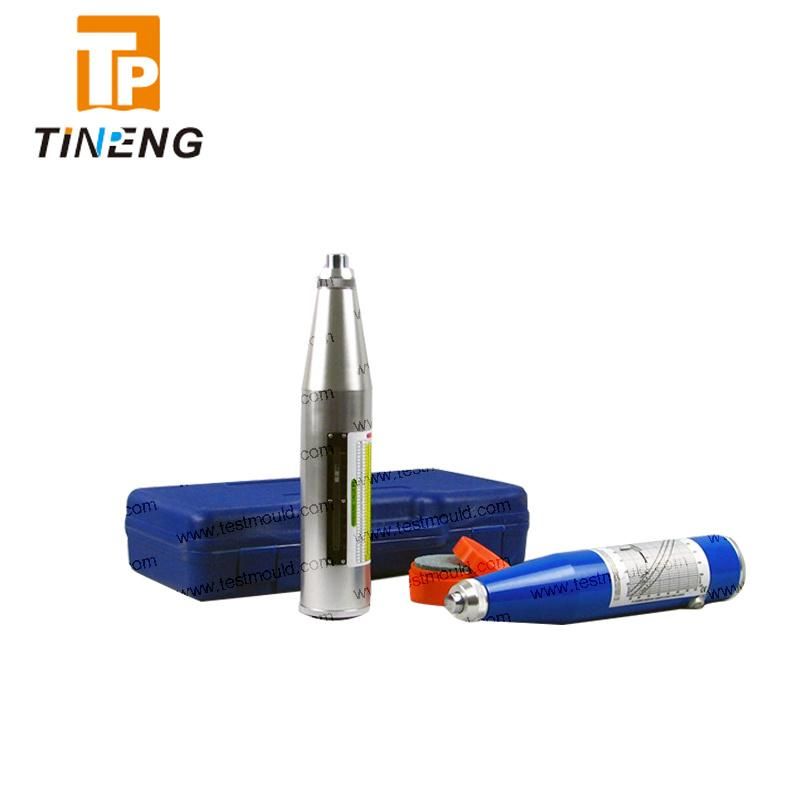

Type N Concrete Schmidt Hammer
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Range of Measurement:100 to 600 Kg,Cm²
- Energy:2207 J
- Dimensions Diameter:60mm
- Indication of Measurement:0 to 100
- Transport Package:Plastic Carrying Case with Carton Boxes
- Specification:ASTM C805, BS1881: 202
Base Info
- Model NO.:HT-225A
- Trademark:C-TECH
- Origin:China Mainland
- HS Code:90248000
- Production Capacity:20000pcs,month
Description
Basic Info.
Model NO. HT-225A Trademark C-TECH Origin China Mainland HS Code 90248000 Production Capacity 20000pcs/monthProduct Description
Schmidt Hammer Type NThis hardness meter in the form of a hammer device for testing concrete is based on the Schmidt principal of measurement. Testing is always done under the same test energy of 2207 J. The kinetic energy of the rebound is given by the device as the measurement of the hardness of concrete, of the pressure upon the surface or as the resistance to pressure (kg/cm² Or its conversion to N/mm² ). The quality of concrete is useful in understanding the material resistance to pressure, as an orientating value for testing the load capacity and durability of concrete constructions. Resitance to pressure is represented as a series of numbers and letters, for example: B 25 indicates that the material is normal concrete with a resistance to a pressure equal to 25 N/mm² . Different readings exist up to the highest class of resistance which is indicated as B 55. With our hardness meter you will be able to easily and accurately classify concrete. The hardness meter comes calibrated from the manufacturer but an ISO calibration certificate can be ordered seperately at extra cost.
Specifications:
Nominal dynamic energy | 2.207J |
Rgidity of impact spring | 7.85N |
Hammer stroke | 75mm |
Impact hardness | HRC59-63 |
Max static friction of pointer system | 0.5N-0.8N |
Average calibration of steel anvil | 80±2 |
Size: | Φ60*280mm |
Weight: | ≈1Kg |
Delivery content:
1 x PCE-HT-225A hardness meter (Schmidt method)
1 x calibration plate
1 x carrying case
1 x user manual
