• Model NO.：PHZY-1.6,5,16
• Accuracy Grade：0.3
• Loading Method：Static Load
• Display：LCD Screen
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. BV. SGS
• Trademark：JP jianping
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHZY-1.6/5/16 Accuracy Grade 0.3 Loading Method Static Load Display LCD Screen Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Packed in Fumigated Wood Box Specification ISO. CE. BV. SGS Trademark JP jianping Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

Quick Details

Place of Origin: Shanghai, China (Mainland)
Brand Name: JP
Model Code: PHZY-1.6/5/16
Power: Electronic

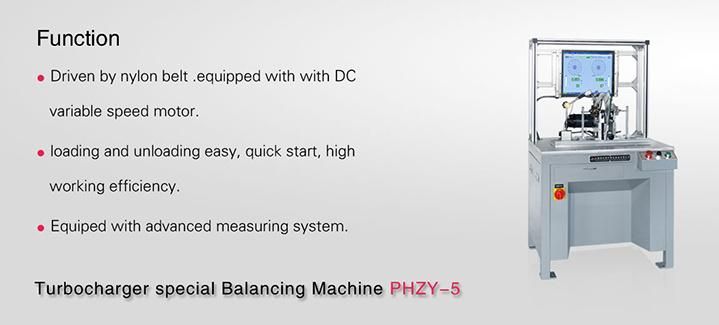

Usage: Balancing Machine
Output Power: 0.23KW DC
Length: 900mm
Width: 900mm
Height: 1530mm
Gross Weight: 350kg
Number of Packing: 1pcs
Delivery time: Within 25 days
Power Supply: Single Phase 220V 50HZ or Custom
Webite: shjpbalancer.en.made-in-china.com

Packaging & Delivery
Packaging Details: Standard Export Wooden Box
Delivery Detail: Within 25 days after confirming the order

Specifications:

Technical data at a glance	PHZY-1.6/5/16
Maximum weight of workpiece(kg)	1.6/5/16
Maximum diameter of workpiece(mm)	300
The distance between two bearing pedestals (mm)	60-400
Journal diameter on roller carriages(mm)	5-40
Belt driving diameter(mm)	15-150
Rotation speed when the diameter of operating transmission is 100mm(r/min)	570 1200+ Stepless Speed Regulation
Motor power (kw)	0.23DC
Minimum achievable residual unbalance (emar)	<=0.3g.mm/kg
