• Model NO.：HM501
• Certificate：ISO
• Standard：IEC
• Flash Fire Sensor：Thermocouple
• Frequency：50Hz±10%
• Input Power：AC220V±20%
• Accuracy：0.5%
• Repeatability：0.5%
• Product Name：Oil Closed Cup Flash Point Test Set
• Model Type：Hm501
• Indoor Temperature Range：up to 400 Degree Centigrade
• Gross Weight：25kgs

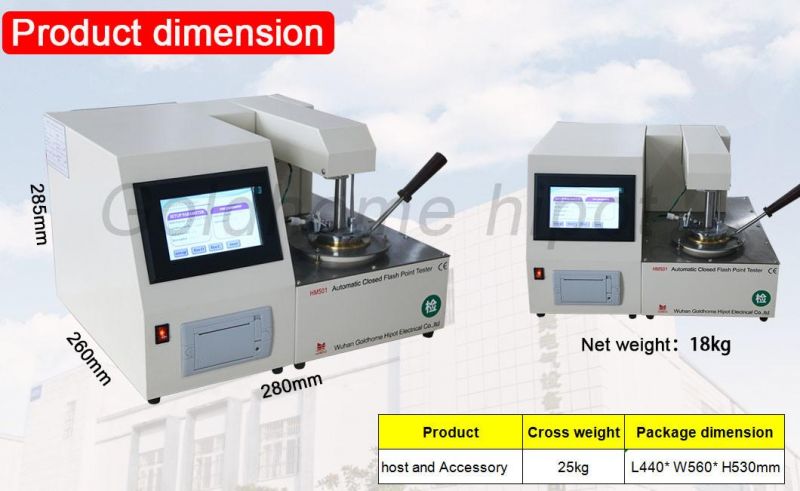

• Measuring Size：440*560*530mm
• Transport Package：Wooden Box with Foam Inside
• Specification：340*295*155
• Trademark：HMDQ
• Origin：Hubei, China(Mainland)
• HS Code：9031809090
• Production Capacity：500sets,Month

Basic Info.

Model NO. HM501 Certificate ISO Standard IEC Flash Fire Sensor Thermocouple Frequency 50Hz±10% Input Power AC220V±20% Accuracy 0.5% Repeatability 0.5% Product Name Oil Closed Cup Flash Point Test Set Model Type Hm501 Indoor Temperature Range up to 400 Degree Centigrade Gross Weight 25kgs Measuring Size 440*560*530mm Transport Package Wooden Box with Foam Inside Specification 340*295*155 Trademark HMDQ Origin Hubei, China(Mainland) HS Code 9031809090 Production Capacity 500sets/Month

Product Description

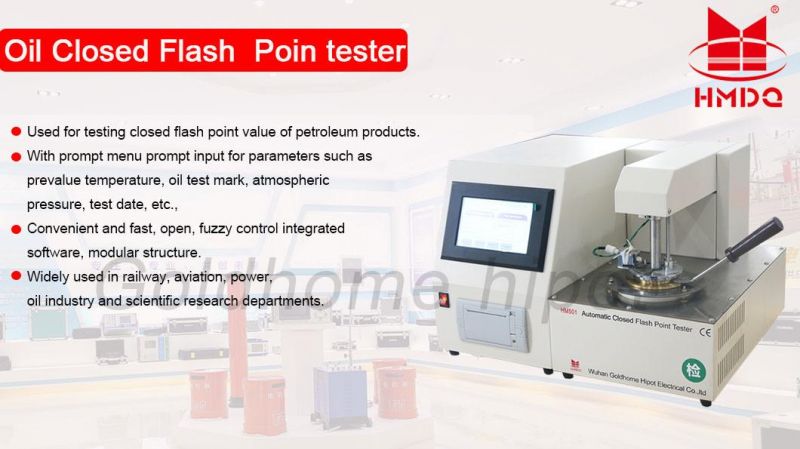

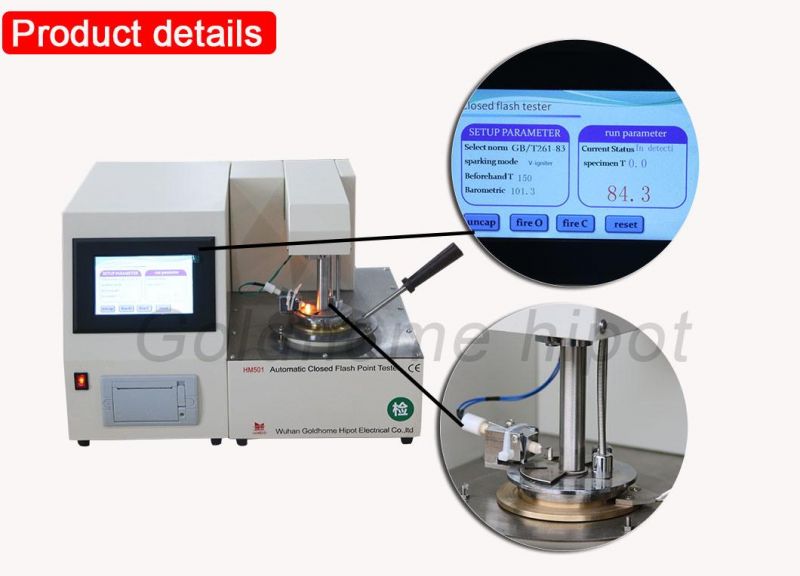

Fully Automatic ASTM D93 Pensky-Martens Portable  Oil Closed Cup Flash Point Test Set Oil Closed Cup Flash & Fire Point Analyzer Tester Equipment

I. Summary


The flash point of a volatile material is the lowest temperature at which it can vaporize to form an ignitable mixture in air. Measuring a flash point requires an ignition source. At the flash point, the vapor may cease to burn when the ignition source is removed.

The flash point is not to be confused with the autoignition temperature (which does not require an ignition source) or with the fire point (the temperature at which the vapor continues to burn after being ignited).

II. Instrument features

1 Reliable operation of high precision: New type of high speed digital signal processor,

2 Save test time: A host can control more than one test furnace at the same time for multiple sample test

3 Automatic: Detection, open, ignition, alarm, cooling, printing, and automatically complete the whole e*periment process

4 No air electric ignition mode, automatic ignition

5 Detect atmospheric pressure and correct test results automatically

6 Use a newly developed high-power high-frequency switching power supply heating technology, high heating efficiency. Using adaptive PID control algorithm automatically adjusts the heating curve.

7 When the temperature is too high, automatically stop working, detection and alarm

8 Thermal micro printer, makes printing more beautiful and more quickly, with functions of offline print

9 Historical record with a time stamp, store up to 255

10 Centuries calendar clock with temperature compensation, accurate time, automatically records the measuring date and time, in power-down state may run for more than 10 years;

11 large 320*240 screen graphic LCD display, rich content

12 touch screen buttons, convenient operation and intuitive

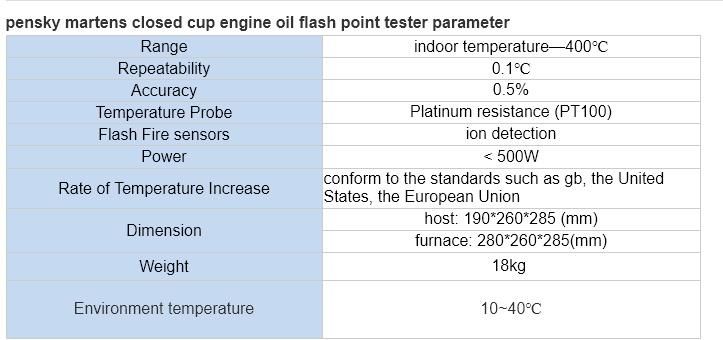

 III. main paramter
