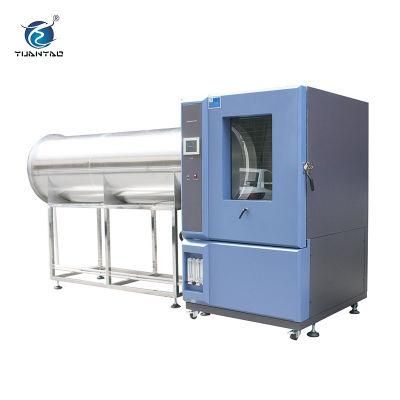

IEC60529 Climate Test Machine Ipx1~ Ipx6 Water Rain Spray Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：30kg
- Type：Water Rain Proof Test Chamber
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YSRT-1000
- Loading Method：Static Load
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：N,a
- Inner Size(W*H*D)：100X100X100 Cm
- Water Drip Tank Size(L*W*H)：60X60X10 Cm
- Rainfall：1~5mm,Min+,-0.5mm,Min
- Swing Pipe Radius：40cm
- Nozzle Diameter：ID 0.4mm
- Nozzle Interval：50mm
- Water Flash Nozzle Size：ID 6.3mm for Ipx5, 12.5mm for Ipx6
- Inner Chamber Material：SUS#304 Stainlsss Steel
- External Chamber Size：Cold Rolled Plate + Powder Coated
- Test Standard：Ipx1,Ipx2,Ipx3,Ipx4,Ipx5,Ipx6
- External Chambertest Area Size W*H*D：145X200X360 Cm
- Rotating Speed：1~5r,Min
- Other Components：Light, Wiper, Castor
- Power Supply：AC 3 Phase 380V 50Hz
- Customization Service：Available
- Transport Package：Well Packed in Strong Wooden Cases.
- Specification：1 set
- Trademark：Yuanyao
- Origin：Guangdong, China
- HS Code：8479899090
- Production Capacity：20 Sets , Month
Description
Non-standard or special requirements are all welcome
In addition to IEC60529 IPX1 ~ IPX6 grade water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock
Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray
Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
