• Model NO.：PN-CT500B
• Specification：ISO
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：300sets,Year

Basic Info.

Model NO. PN-CT500B Specification ISO Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 300sets/Year

Product Description

1. INTRODUCTION:

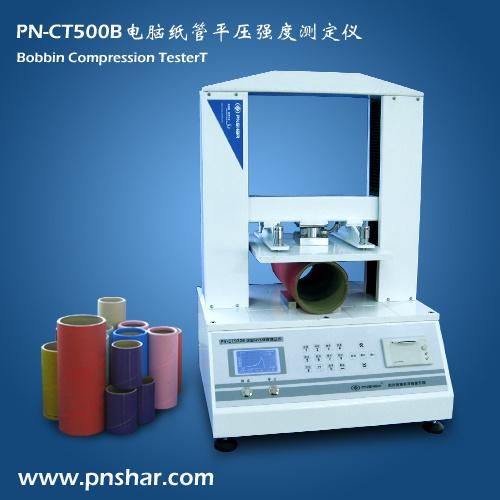

Paper Tube Compression testing machine is to used to test the compressive strength properties of materials testing instruments, mainly applicable to all types of less than 300mm diameter paper tubes, chemical fiber paper tubes, packet cartoning and other types of small containers or honeycomb compressive strength, deformation detection. PN-CT500B Paper Tube Crush Tester conforms to ISO standards and the newest national standards for paper tube and paper core, Structure for the mechanical-electrical integration, the introduction of modern mechanical design concepts and computer technology to carefully handle a reasonable design. Equipment used on the fixed platen, high measurement accuracy. A powerful data-processing functions, the data can be directly obtained results with the pressure curve display.
2. APPLICATIONS:
Paper Tube. paper board. Corrugated cardboard, Corrugated Package.
3. STANDARDS:
ISO 3035. ISO 3073. ISO 7263. GB/T 2679.8,GB/T 6546-1998,GB/T 6548, GB/T 2679
4. FEATURES:
1). High speed return after finishing test
2). Imported step motor with servo control adopted
3). The test result can be measured, statistical and printed automatically and the data can be saved.
4). Blue color LCD display, which can be display the crush time and loading force real time, displaying crush graph real time.
5). New PC software able to manage and analyse the data and can communicate with PC. (Only for
model of PN-CT500B-PC )
6). Thermal printer, high speed and no noise .
7). Use the modern design idea of mechanical and electrical integration, which has compact
configuration, pleasing appearance and convenient maintenance.
