Stainless Steel Thermal Aging Oven Used on Aerospace Products
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：1000mm
- Mass Scope of Workpiece：1000kg
- Type：Thermal Ageing Oven
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：N,a
Base Info
- Model NO.：YPO-270
- Loading Method：N,a
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：N,a
- Inner Size：600*900*500mm
- External Size：1050*1650*740mm
- Volume：270 Liters
- Temp. Fluctuation：+,-0.3 Degree
- Interior Chamber Material：SUS#304 Stainless Steel Plate
- Exterior Chamber Material：Cold Rolled Plate + Powder Coated
- Circulation System：Circle Fan
- Indication Resolution：0.1 Degree , 1 Degree
- Heat up Time：60 Mins
- Temperature Uniformity：±1% Degree
- Transport Package：Strong Wood Carton
- Specification：1 set
- Trademark：Yuanyao
- Origin：China
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description

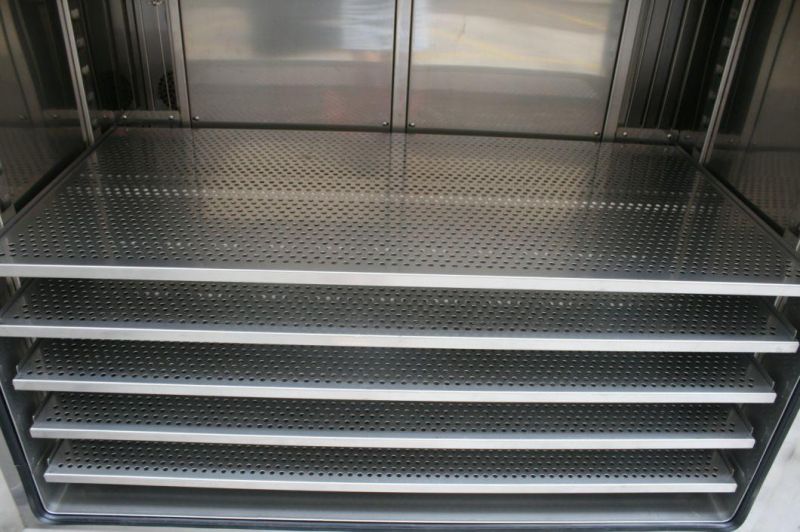

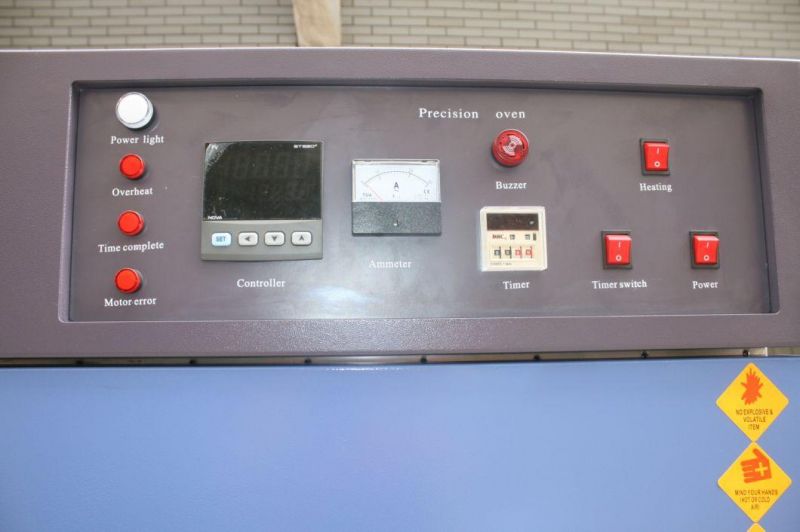

SpecificationMODEL YPO-072 YPO-270 YPO-480 YOP-600 YPO-720 Internal Sim.WHD(mm) 450×400×400 600×900×500 800×1000×600 1000×1000×600 1200×1000×600 External Dim.W×H×D(mm) 750×1200×550 1050×1650×740 1200×1700×840 1400×1750×840 1750×1750×840 Temp.Range Room Temp.+10ºC---+200ºC(300ºC) Ferformance Temp.&Humi,Constancy ±0.3ºC Temp.&Humi,Constancy ±0.1ºC AT 200ºC;±1.5% AT 300ºC Indication Resolution 0.1ºC/1ºC Heat-up Time( min.) Approx.60min. Material Exterior Iron Sheet+Baked Enamel Interior SUS#304 stainless steel piate Insulation Fiberglass Wool SYSTEMS Cirulation Circle Fen Heating Chrome Steel Strip Wire Heater Controller Electric Digital Control+S.S.R. door Single-Wing Double-Wing Other Components Environmental Control Indicator Lights, Experiment Separation Shelves(2 pcs). Sevey Devices Overheating Prevention Circuit breaker, Control System,Breakdown Indicator Light. Power Source[K.W.] AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Any requested size and TEMP. range(max.1200ºC)will be considered.
Product detail
Except Industrial stainless steel thermal ageing oven, Dongguan Yuanyao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
If you want to know more about industrial oven,please feel free to contact us.
We are here waiting for you !
Product detail
Except Industrial stainless steel thermal ageing oven, Dongguan Yuanyao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
If you want to know more about industrial oven,please feel free to contact us.
We are here waiting for you !
