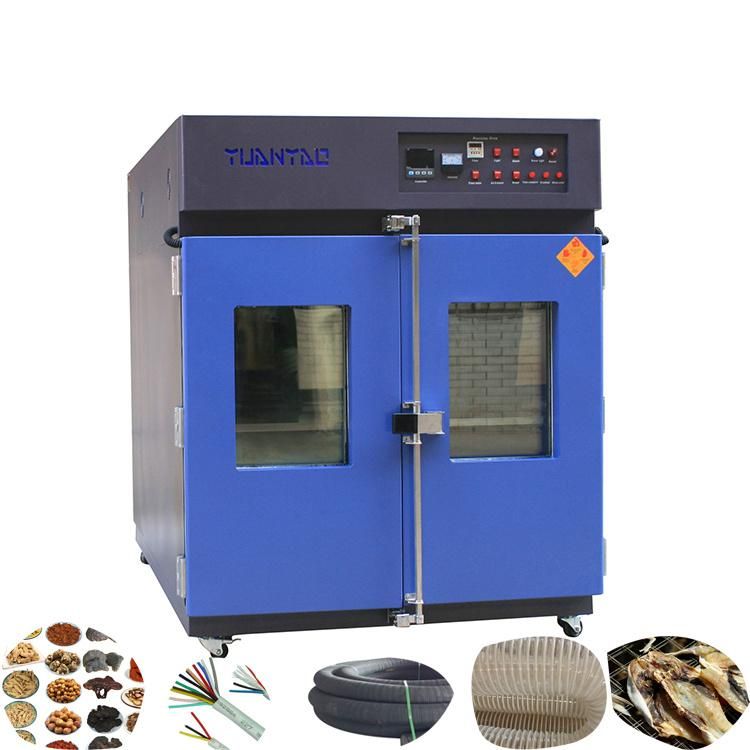

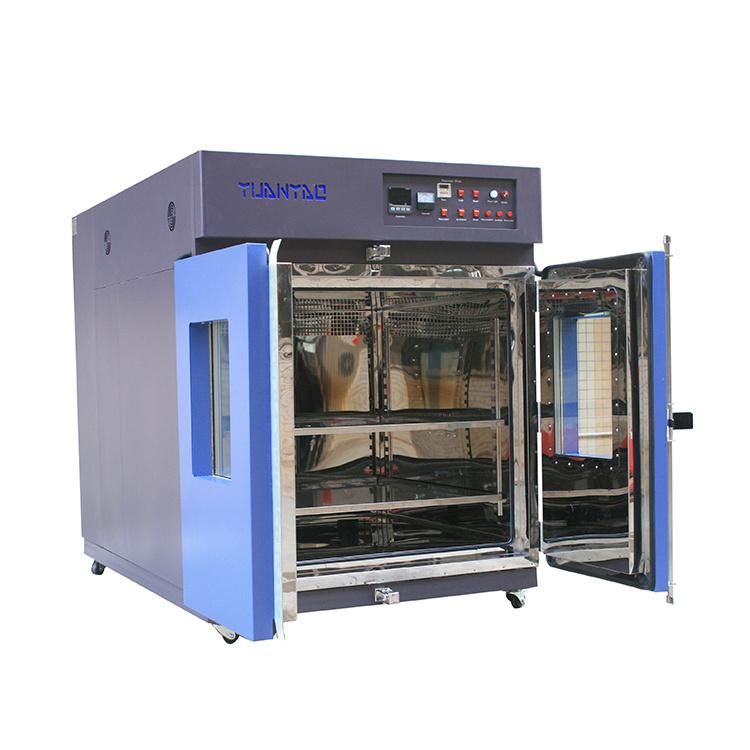

Lab High Temperature Industrial Drying Oven for Motor Blocked Rotor Test
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：900mm
- Mass Scope of Workpiece：900kg
- Type：High Temperature Industrial Drying Oven
- Maxcapacity：N,a
- Accuracy Grade：0.5
- Load Way：Mechanical Load
Base Info
- Model NO.：YPO-480
- Loading Method：Static Load
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：N,a
- Inner Size：800*1000*600mm
- External Size：1200*1700*840mm
- Volume：480 Liters
- Temp. Fluctuation：+,-0.3 Degree

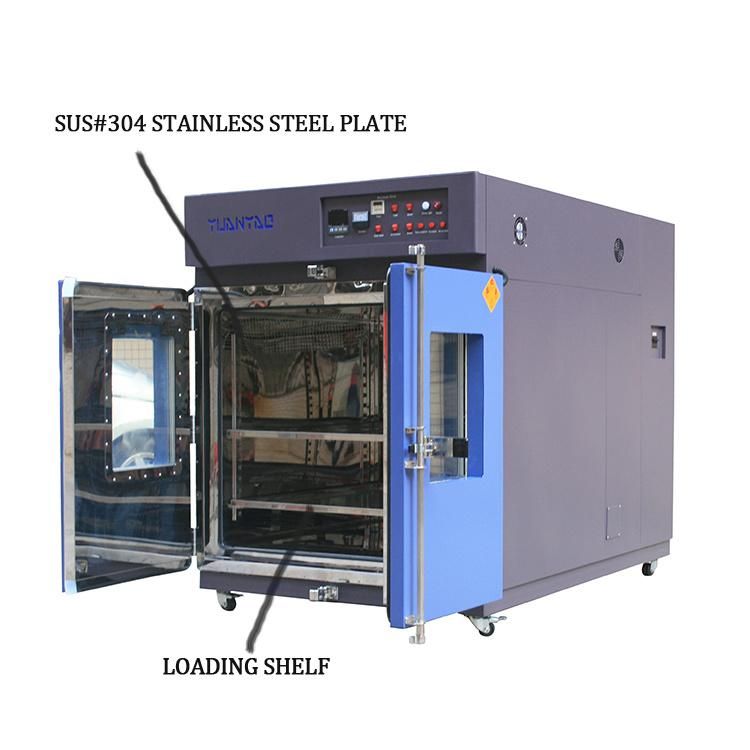

- Interior Chamber Material：SUS#304 Stainless Steel Plate
- Exterior Chamber Material：Cold Rolled Plate + Powder Coated
- Circulation System：Circle Fan
- Indication Resolution：0.1degree , 1 Degree
- Heat up Time：60 Mins
- Power Supply：AC 3 Phase 380V 50Hz
- Transport Package：Well Packed in Strong Plywood Case.
- Specification：1 set
- Trademark：Yuanyao
- Origin：Guangdong, China
- HS Code：9032100000
- Production Capacity：100 Sets , Month
Description
SpecificationMODEL YPO-072 YPO-270 YPO-480 YOP-600 YPO-720 Internal Sim.WHD(mm) 450×400×400 600×900×500 800×1000×600 1000×1000×600 1200×1000×600 External Dim.W×H×D(mm) 750×1200×550 1050×1650×740 1200×1700×840 1400×1750×840 1750×1750×840 Temp.Range Room Temp.+10ºC---+200ºC(300ºC) Ferformance Temp.&Humi,Constancy ±0.3ºC Temp.&Humi,Constancy ±0.1ºC AT 200ºC;±1.5% AT 300ºC Indication Resolution 0.1ºC/1ºC Heat-up Time( min.) Approx.60min. Material Exterior Iron Sheet+Baked Enamel Interior SUS#304 stainless steel piate Insulation Fiberglass Wool SYSTEMS Cirulation Circle Fen Heating Chrome Steel Strip Wire Heater Controller Electric Digital Control+S.S.R. door Single-Wing Double-Wing Other Components Environmental Control Indicator Lights, Experiment Separation Shelves(2 pcs). Sevey Devices Overheating Prevention Circuit breaker, Control System,Breakdown Indicator Light. Power Source[K.W.] AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Any requested size and TEMP. range(max.1200ºC)will be considered.
Except High Temperature Industrial Drying Oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles with different configuratitions are also available upon request, welcome to enquire and contact us anytime!
