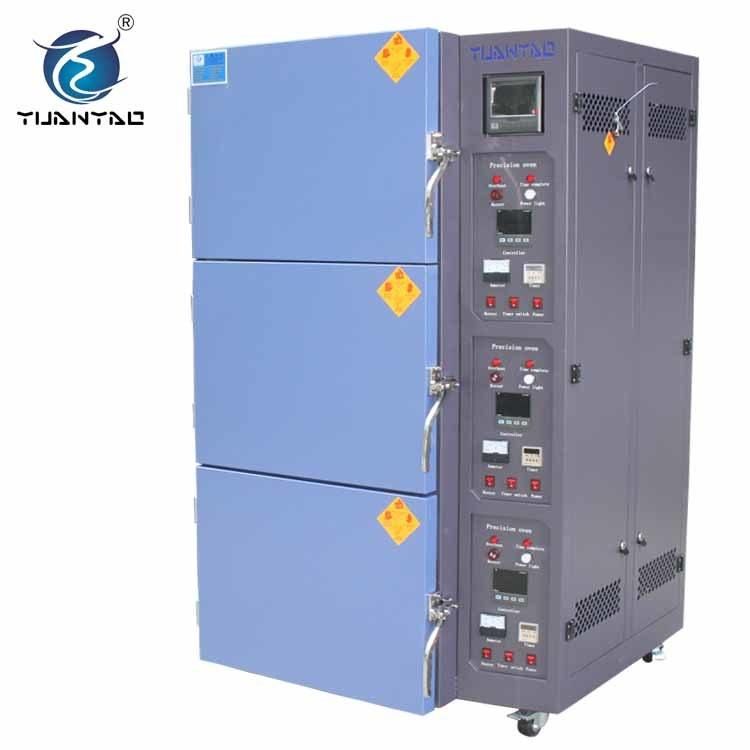

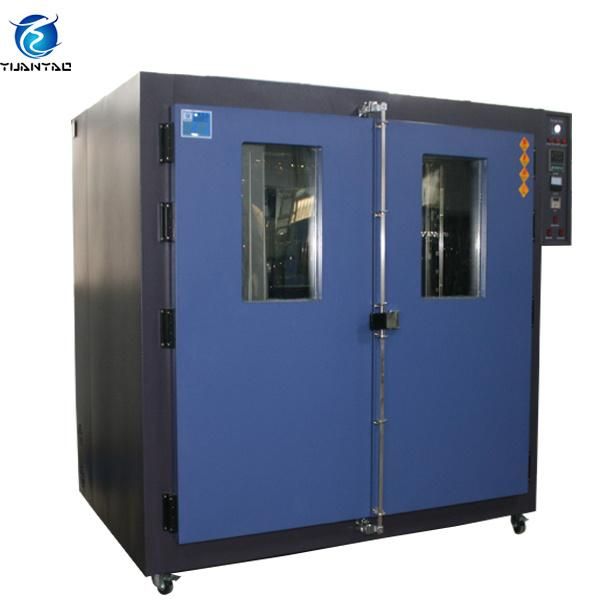

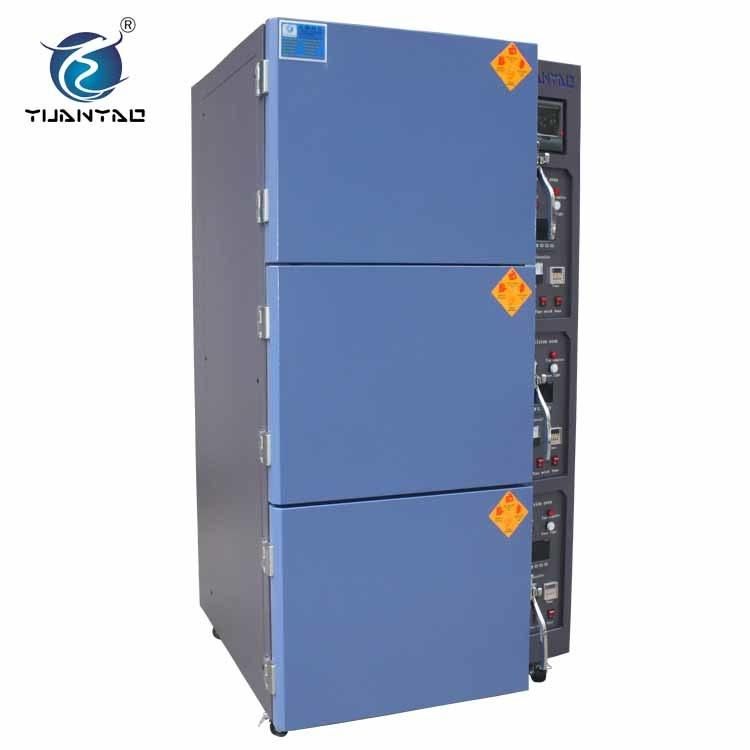

Precision High Temperature 200 Degree Drying Aging Oven for PCB Product
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece:700mm
- Mass Scope of Workpiece:1000kg
- Type:Material Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:YPO-270
- Display:Digital
- Control:Controller
- Weight:0-100Kg
- Power Source:AC380V
- Oil Cylinder Position:Under
- Temp.Constancy:+,- 0.3 Degree Celsius
- Internal Size(Mm):600*900*500
- Indication Resolution:0.1 Degree Celsius C,1 Degree Celsius
- External Material:Iron Sheet + Black Enamel
- Internal Material:Stainless Steel
- Insulation:Fiberglass Wool
- Circulation:Circle Fan
- Controller:S.S.R
- Warranty:12 Month
- Door:Single-Wing
- Transport Package:Standard Export Strong Wooden Case
- Specification:CE, ISO, TUV, SGS Certificate
- Trademark:Yuanyao
- Origin:Guangdong, China(Mainland)
- HS Code:9032100000
- Production Capacity:100 Sets,Month
Description
ModelYPO-072 YPO-270 YPO-480 Internal Dim.W×H×D(mm) 450×400×400 600×900×500 800×1000×600 External Dim.W×H×D(mm) 870×1200×550 1050×1650×740 1200×1700×840 Temp. Range Room Temp.+10°C~+200°C(300°C) Performance Temp.Constancy ±0.3°C Temp.Uniformity ±0.1°C AT 200°C;±1.5ºCAT300°C Indication Resolution 0.1°C/1°C Heat-up Time Approx.60min Material Exterior Cold rolled plate+Baked Enamel Interior SUS#304 stainless steel plate Insulation Fiberglass Wool Systems Circulation Circle Fan Heating Chrome Steel Strip Wire Heater Controller Electric Digital Control+S.S.R. Door Single-Wing Other Components Environmental Control Indicator Lights,
Experiment Separation Shelves(2 pcs). Safety Devices Overheating Prevention Circuit breaker,
Control System,Breakdown Indicator Light. Power Source(K.W.) AC 1Ψ 220V ; 3Ψ 380V 60/50Hz
Product detail
Except Industiral oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
