• Model NO.：BTT-D2-SERIES
• Primary Keyword：High Temperature Aging Test Chamber for Battery CE
• Characteristic：Assembling Explosion-Proof Device
• Temperature Range：Room Temperature +10ºC~+150ºC
• Temperature Fluctuation：±0.3ºC
• Temperature Rise Time：Rt+10~+100ºC 10 Minutes
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Customizable
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8514109000
• Production Capacity：100set ,Month

ModleBTT-D2-216ABTT-D2-360ASingle-layer internal dimensions(MM)W600xD600xH600W1000xD600xH600External dimensions(MM)W1340xD1080xH1765W1740xD1800xH2000Structure styleIntegral upper and lower two studio structureTemperature rangeRoom temperature +10ºC~+150ºCTemperature fluctuation±0.3ºCTemperature rise timeRT+10~+100ºC About 10 minutes Temperature uniformity≤±2ºC(no-load, constant temperature state)Observation windowW300xH300MM, explosion-proof glass with explosion-proof filmCooling modeAir-cooledControl modeTouch screen programmable control PLC, with USB interface, with RS485 interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisitionInner box materialSUS304# mirror stainless steel, thickness 1.0MM, spray Teflon insulation.Outer box materialGalvanized plate, powder coating, high temperature plasticization, thickness 1.2MMPower supply voltageAC380V 50HZ 9KWSafety protectionAutomatic explosion-proof pressure relief device, explosion-proof chain, light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.Lead holeΦ100MM, one on each side, with soft silicone plug and stainless steel coverExpanded functionsOpen communication protocol and charging and discharging machine supporting use

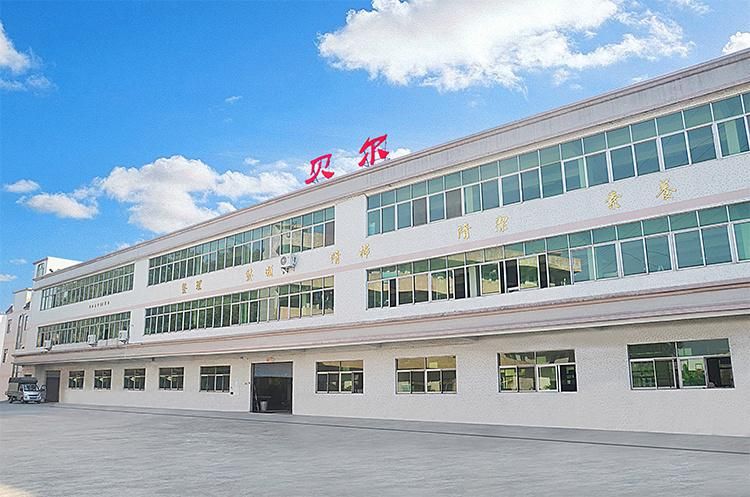

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.
