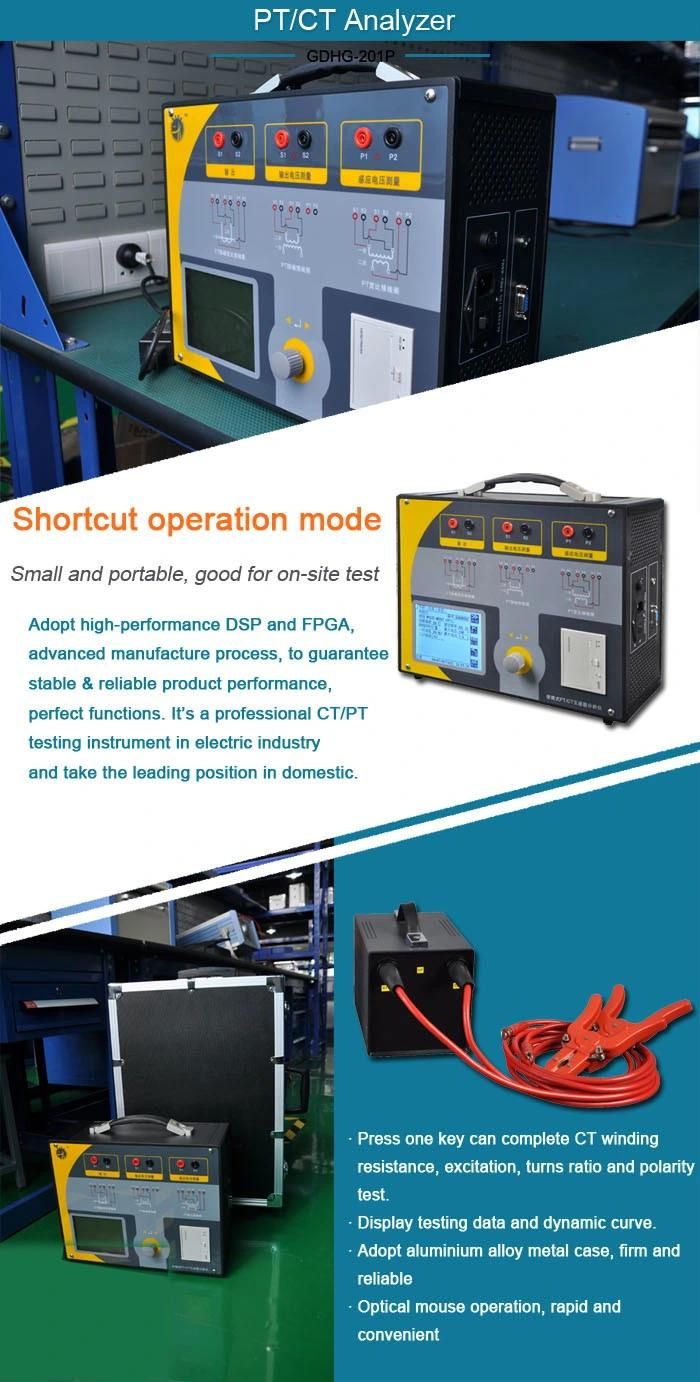

GDHG-201P Portable Various Frequency CT/PT Exciting Curve Analyzer
HV Hipot Electric Co., Ltd.- After-sales Service：yes
- Warranty：1 year
- Max Diameter of Workpiece：2400mm
- Type：Universal Testing Machine
- Accuracy Grade：0.1
- Load Way：Electronic Load
Base Info
- Model NO.：GDHG-201P
- Loading Method：Dynamic Load
- Display：Digital
- Weight：<10kg
- Power Source：AC220V
- Power input：AC220V±10%,50Hz
- Operation temperature：-10ºC-+50ºC
- Humidity：≤90%
- CT Turns Ratio Test：Range 1~40000, precision ±0.05%
- PT Turns Ratio Test：Range 1~40000, precision ±0.1%
- Voltage Measuring Precision：±0.1%
- Phase Test Precision：0.5 min
- Secondary winding resistance Test Range：0~300Ω
- Dimension & Weight：365*290*153mm, 10kg
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan, China
- HS Code：9030849000
- Production Capacity：1000PCS,Year
Description
Dimension & Weight365*290*153mm, 10kg
Accessories
Accessories
| No. | Name | Qty. | Unit |
| 1 | Host | 1 | piece |
| 2 | Power cord | 1 | piece |
| 3 | Red test cable | 1 | piece |
| 4 | Yellow test cable | 1 | piece |
| 5 | Green test cable | 1 | piece |
| 6 | Ground cable | 1 | piece |
| 7 | Alligator clip (Jaw 12mm) | 4 | pieces |
| 8 | Alligator clip (Jaw 20mm) | 2 | pieces |
| 9 | Inserting piece | 4 | pieces |
| 10 | Print paper | 4 | rolls |
| 11 | U disk | 1 | piece |
| 12 | Fuse 10A | 5 | pieces |
| 13 | Special screwdriver for fuse | 1 | piece |
| 14 | User's guide | 1 | piece |
| 15 | Warranty period | 1 | piece |
| 16 | Packing list | 1 | piece |
| 17 | Factory test report | 1 | piece |
