Lab Use Tablet Disintegration Tester (BJ-2)
Liaoyang Bright Shine Pharmaceutical Machinery Imp & Exp Co., Ltd.- Mass Scope of Workpiece:<900kg
- Type:Disintegration Tester
Base Info
- Model NO.:BJ-2
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Digital
- Weight:0-100Kg
- Power Source:AC110V
- Nacelle up and Down Frequency:30-32,Min
- Automatic Time Range:1-900,Min
- Accuracy of Controlling Temperature:+-0.5 Degree
- Basket Assembly:2PC
- Glass Tube of Basket:12PCS
- Flat Bottom Beaker Volume:1000ml
- Basket Back and Forth Frequency:(30~32) ,Min
- Basket Back and Forth Range:(55+-1)mm
- Min. Distance Between Sieves:(25+-2)mm
- Dimension:400X300X420mm3
- Transport Package:Export Standard Wooden Case
- Specification:Meet GMP Standard
- Trademark:BSIT-GM
- Origin:Made in China
- HS Code:9027809000
- Production Capacity:7 Sets,Week
- Package size per unit product:40.00cm * 30.00cm * 40.00cm
- Gross weight per unit product:50.000kg
Description
Basic Info.
Model NO. BJ-2 Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Digital Weight 0-100Kg Power Source AC110V Nacelle up and Down Frequency 30-32/Min Automatic Time Range 1-900/Min Accuracy of Controlling Temperature +-0.5 Degree Basket Assembly 2PC Glass Tube of Basket 12PCS Flat Bottom Beaker Volume 1000ml Basket Back and Forth Frequency (30~32) /Min Basket Back and Forth Range (55+-1)mm Min. Distance Between Sieves (25+-2)mm Dimension 400X300X420mm3 Transport Package Export Standard Wooden Case Specification Meet GMP Standard Trademark BSIT-GM Origin Made in China HS Code 9027809000 Production Capacity 7 Sets/WeekPackaging & Delivery
Package size per unit product 40.00cm * 30.00cm * 40.00cm Gross weight per unit product 50.000kgProduct Description

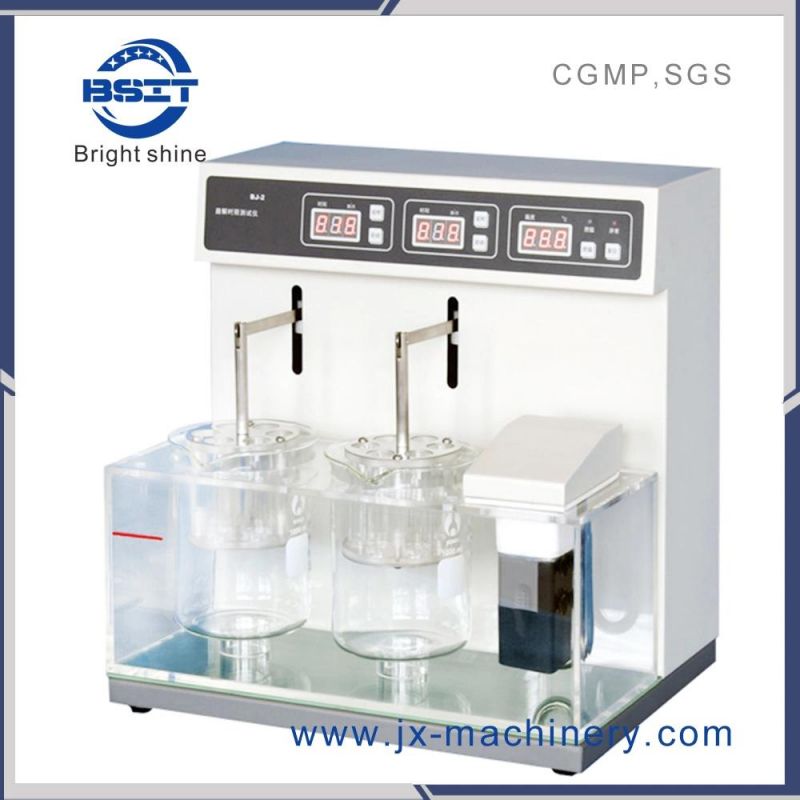

BJ-1/BJ-2 DISINTEGRATION TESTERProduct Description
BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(disintegration tester )Q/12XQ0188-2010
Features:
There are twelve tubes in two basket assembly.
Each test station is driven independently. Auto stop at timing point.
The bath liquid can achieve an even temperature.
A MPU is used to automatically control the temperature, time and frequency of nacelle back and forth.
Timing at will. The preset and real time data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter :
Basket assembly | 2pc |
Glass tube of basket | 12pcs |
Flat bottom beaker volume | 1000ml |
Basket back and forth frequency | (30~32) /min |
Basket back and forth range | (55±1)mm |
Min. distance between sieves | (25±2)mm |
Timing range | 1-900 minute |
Timing accuracy | ±0.5min |
Temperature preset range | 20-45ºC |
Accuracy of temperature control | ±0.5ºC |
Heating power | 500W |
Working time continuously | More than 24hours |
Power | 220V/50Hz 600W |
Dimension | 400×300×420mm3 |

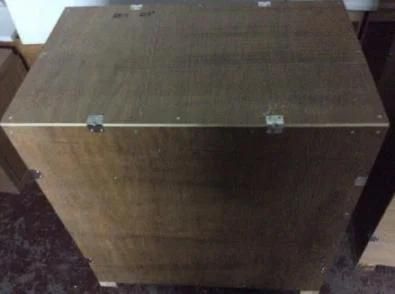

Carton Package
Wooden case for more than 3sets of tester
