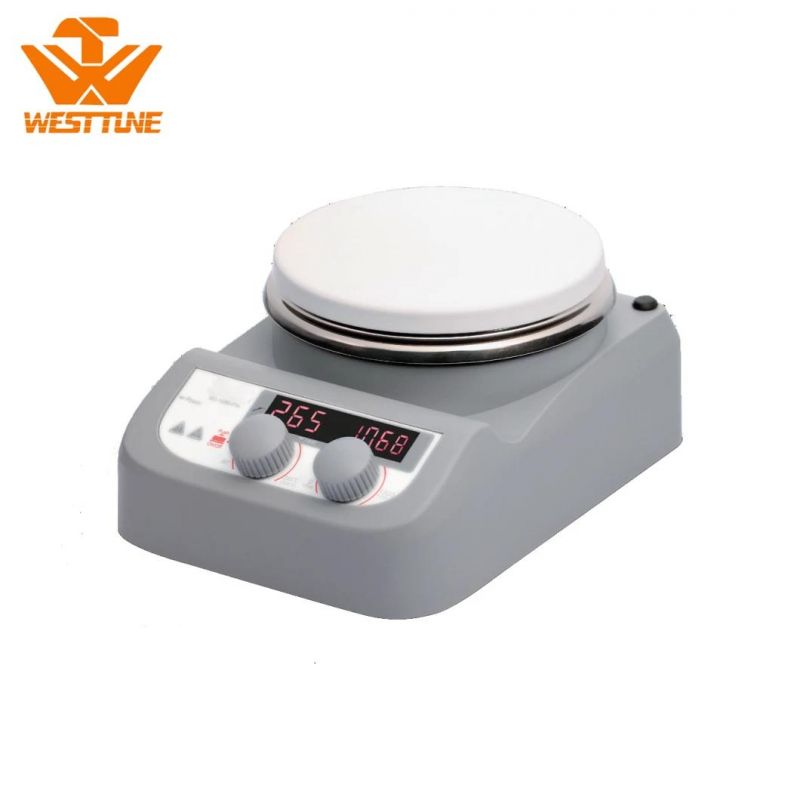

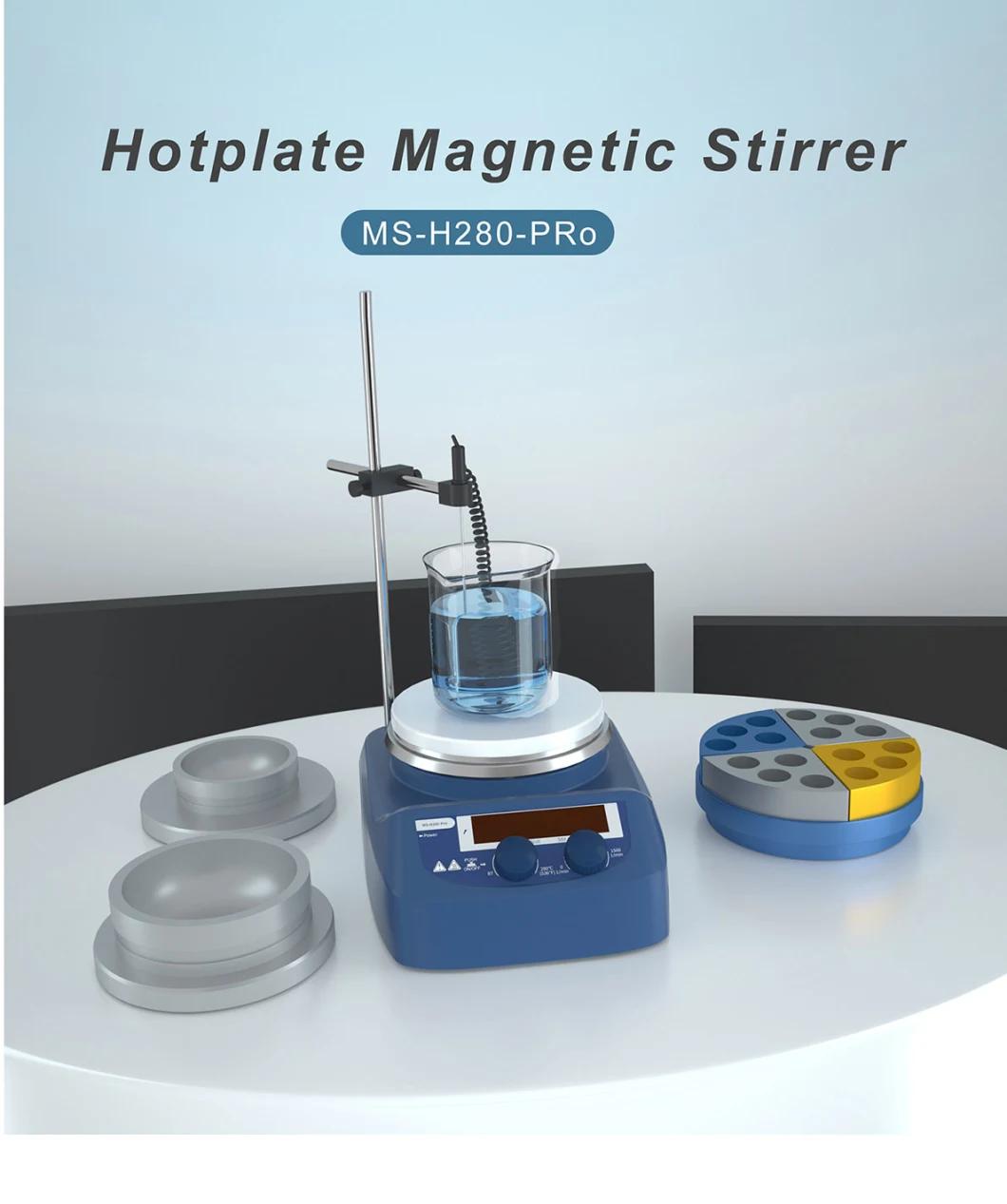

West Tune Ms-H280-PRO 3L Hotplate Magnetic Stirrer
Hangzhou West Tune Trading Co., Limited- Warranty:1 Year
- Display:Digital
- Control:Manual Control
- Power Source:100-120,200-240V 50,60Hz
- Speed:100-1500bpm
- Max. Magnetic Bar [Length]:50mm
Base Info
- Model NO.:MS-H280-Pro
- Max. Stirring Quantity [H2O]:3L
- HS Code:8419899090
- Production Capacity:50units,Month
Description
Basic Info.
Model NO. MS-H280-Pro Max. Stirring Quantity [H2O] 3L HS Code 8419899090 Production Capacity 50units/MonthProduct Description

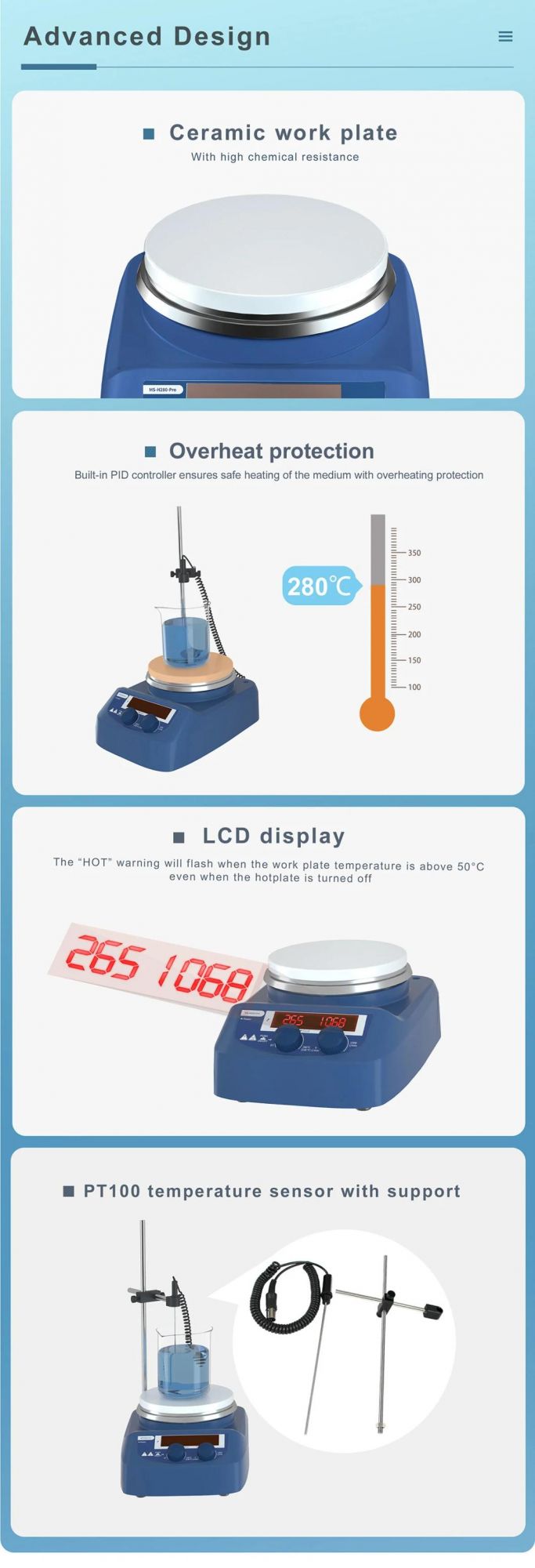

West tune MS-H280-Pro 3L Hotplate Magnetic Stirrer•Digital temperature control with max. temperature up to 280°C
•Digital speed control with max. speed up to 1500rpm
•Stainless steel work plate with ceramic coating provides good chemical resistant performance
•External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
•LED display shows temperature and speed
•The "HOT" warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
Work plate Dimension | φ135mm(5 inch) |
Work plate material | stainless steel cover with ceramic |
Motor type | Brushless DC motor |
Motor rating input | 5W |
Motor rating output | 3W |
Power | 515W |
Heating output | 500W |
Voltage | 100-120/200-240V 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity [H2O] | 3L |
Max. magnetic bar [length] | 50mm |
Speed range | 100-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Speed display resolution | ±1rpm |
Heating temperature range | Room temp.-280, increment 1°C |
Control accuracy of work plate | ±1°C(<100°C) ±1%(>100°C) |
Over heat Protection | 320°C |
Temperature display accuracy | ±1°C |
External temperature sensor | PT1000 (accuracy ±0.5°C) |
"Hot" warning | 50°C |
Protection class | IP21 |
Dimension [W x D x H] | 150×260×80mm |
Weight | 1.8kg |
Permissible ambient temperature and humidity | 5-40ºC 80%RH |
