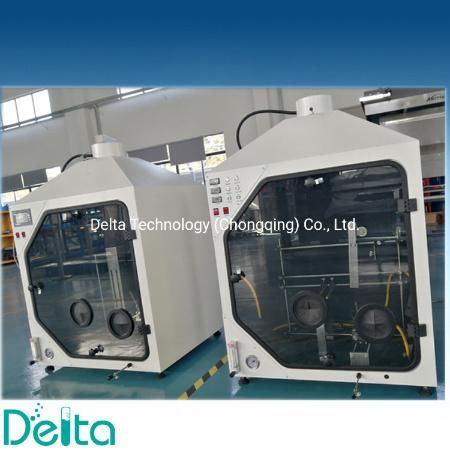

UL94-X IEC60695-11 Cable Horizontal and Vertical Flame Testing Equipment
Delta Technology (Chongqing) Co., Ltd.- After-sales Service:Response on Customers′ Questions Within 12 Hours.
- Warranty:12 Months
- Description:Horizontal and Vertical Flame Testing Equipment
- Reference Standards:ISO 9772, ISO 9773, IEC 60695-11-10: 2013, UL94
- Application:Test Burning Rate of Cable2 Horizontal or Vertical
- Application Field:Electrical Products, Electrical Manufacturing
Base Info
- Model NO.:UL94-X
- Features:Cable Horizontal and Vertical Flame Test Equipment
- Test Parameters:Flammability, Combustion Speed, Flame Spread, etc.
- Burner:Compliance with ASTM D 5025
- Burner Calibration Kit:Conform to ASTM D 5207
- Dimension:950mm(W)*850 mm(D)*1350 mm(D)
- Weight:58kg
- Gas Supply:Propane Gas or Methane Gas
- Power Supply:110V AC 60Hz , 230V AC 50Hz
- Transport Package:Horizontal Test Equipment Packed in Veneer Case.
- Specification:95cm * 85cm * 135cm
- Trademark:Delta
- Origin:China Mainland
- HS Code:9031809090
- Production Capacity:100 Sets , Month
Description
Features:
- A bench mounted draft free combustion chamber having a large inside volume of 0.75m3
- Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
- Fully adjustable horizontal and vertical specimen supports.
- A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator, pressure gauge, U type water column tube.
- Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
- Auto Specimen Moving System and one testing timer convenient for the consumer to use.
- Burner calibration kit, conforming to ASTM D 5207.
