High Performance Anti Interference Intelligent Zinc Oxide Arrester (MOA) Energized Test Equipment

Wuhan GDZX Power Equipment Co., Ltd.

After-sales Service：Provide lifelong after-sales service
Warranty：1 Year
LCD size：47*28.5mm
Sampling speed：2,s
Accuracy：2%
structure：Drip-proof type II

Base Info

Model NO.：ZXBLQ-IV
Transport Package：Carton,Wooden Case
Specification：With the change of technical scheme
Trademark：GDZX
Origin：Hubei
Production Capacity：500 Pieces,Month

Description

High Performance Anti Interference Intelligent Zinc Oxide Arrester (MOA) Energized Test Equipment

This instrument use high accuracy (1uA) leakage test and updated CT shielding technology. It is composed of special HV detector, and HV insulation rod. It can wireless transmit testing data within distance of 30m.

Features

1. The full realization of the zinc oxide arrester online uninterruptible power test.

2. The latest CT and shielding technology.

3. No lightning counter can test the zinc oxide arrester leakage current.

4. Completely solve the 6-10kV zinc oxide arrester test problems.

5 without climbing pole, without wiring, fast and accurate test.

6 can accurately detect the leakage current of 10uA.

7. Zinc oxide surge arresters or aging judgment online.

8. High-speed sampling frequency, advanced digital signal processing technology, anti-jamming performance, high accuracy measurement results.

9. Optional configuration with battery, especially suitable for power occasions.

10. Small size, light weight, easy to carry.

Technical Indicators

Instrument sizeHV detector: 68×245×40mmReceiver: 75×170×30mmClip size φ33mmSampling speed 2/sMeasurement range AC 0.000mA~30.00mA(50/60Hz automatically)Resolution 1uAShift AC 0.000mA~30.00mA shift automatically Accuracy ±2%±5dgt (23ºC±5ºC below 80%RH) Storage 99 groups, "MEM" means direction, "FULL" means storage is full Data hold Press HOLD button to hold the data, and press it again to cancel it Data checking"MR" button can read the stored data up and down Overflow "OL" means overflow of the range No signal"no- -"show that the receiver has not received the signal Auto offThis instrument will turn off automatically after 5min to save the batter energy Battery voltage When battery voltage is below 4.8V, will remind it is time to change the battery Weight Detector: 335g(with battery, total 2.5Kg (with battery and insulation rods) InterferenceNo 433MHz frequency signal interference Rod size φ32mm, 1m/pcs(5pcs) Insulation strength Single insulation rod: AC110kV/rms, the shell of the HV detector and the iron core: AC1000V/rmsstructure Drip-proof type II

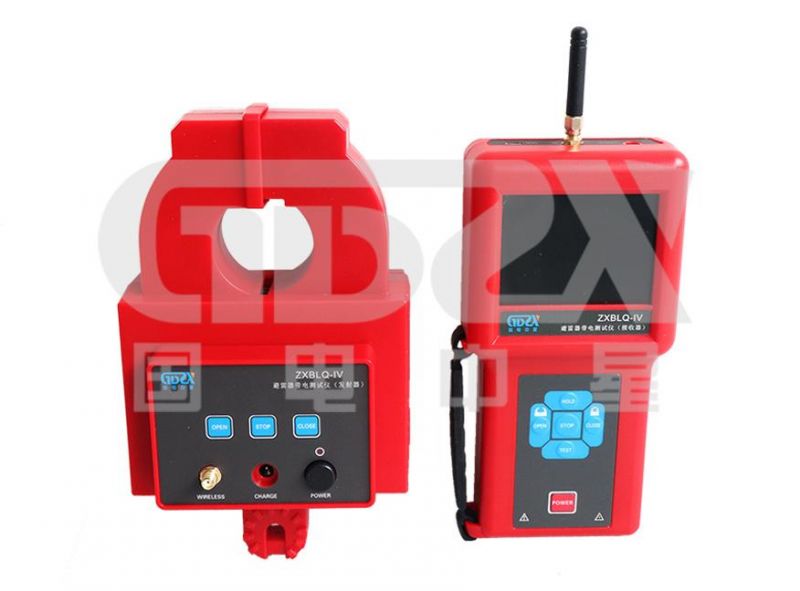

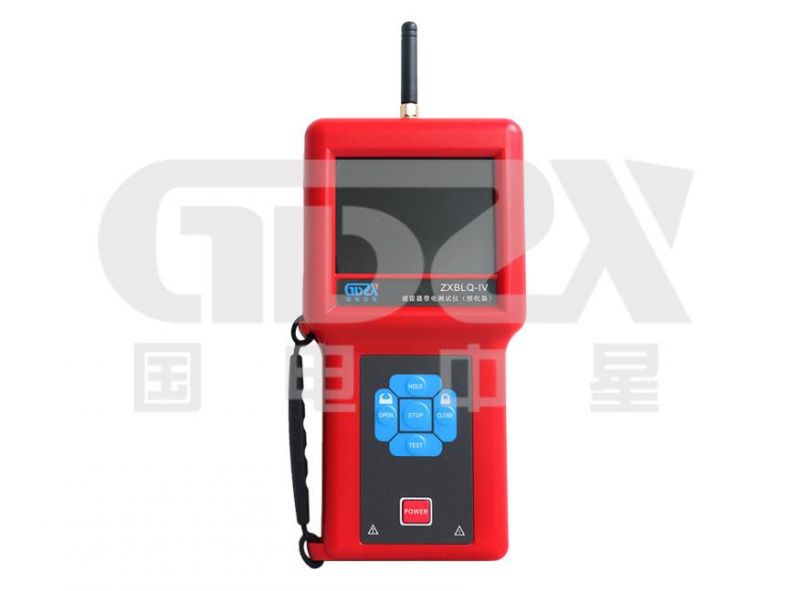

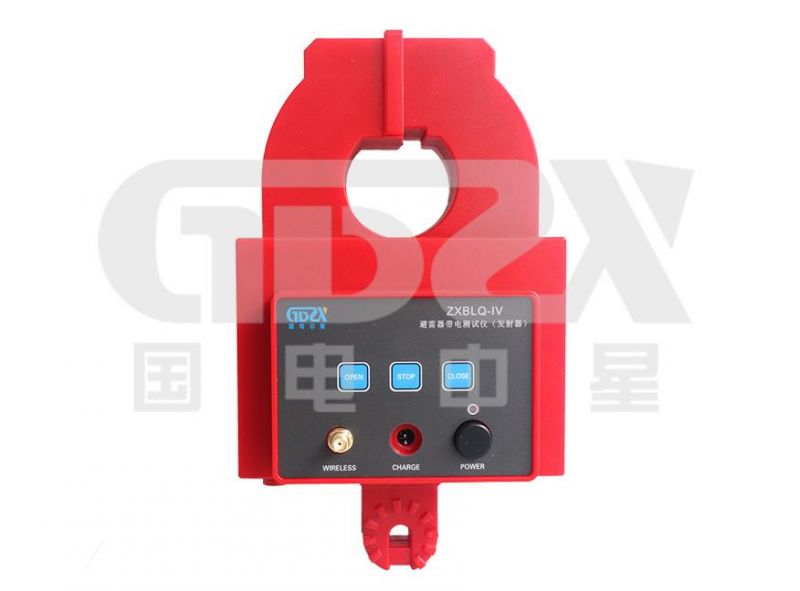

Product pictures
High Performance Anti Interference Intelligent Zinc Oxide Arrester (MOA) Energized Test Equipment

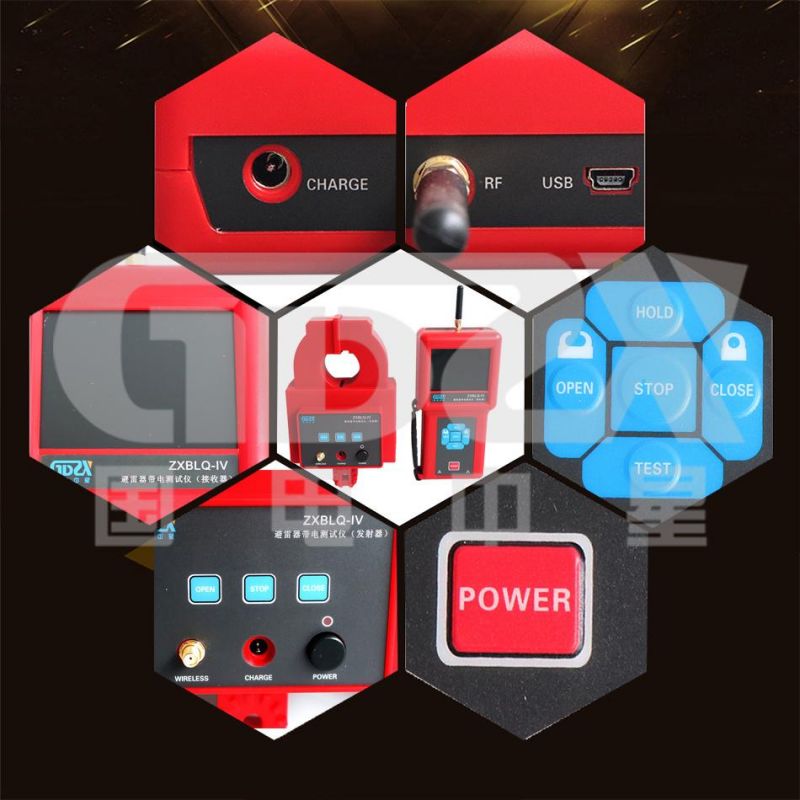

Device display
High Performance Anti Interference Intelligent Zinc Oxide Arrester (MOA) Energized Test Equipment

About GDZX
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
High Performance Anti Interference Intelligent Zinc Oxide Arrester (MOA) Energized Test Equipment
