• Model NO.：SMG6000
• Apparent power：0.001~5k
• Frequency：45~65
• Phase：0~360
• Power factor：-1~+1
• Transport Package：Carton,Wooden Case
• Specification：With the change of technical scheme
• Trademark：GDZX
• Origin：Hubei
• Production Capacity：500 Pieces,Month

Three phase electricity inspection device is used for measuring electrical parameters, protection circuit CT, three phase electrical wire connection correctness of voltage, and current imbalance degree. By this device you can complete the three-phase voltage, current, phase angle, frequency, power, power factor and other electrical parameters high-precision measurements. more important, it can analyze CT wiring correctness and check the power line wiring electricity balance. Also it has a power calculation function. The installed High-speed ARM processors is designed as a lower machine of this device for electrical parameters measurement. It is with fully graphical interface, true color display, touch screen operation, friendly interface, very powerful

1. Three channel AC voltage measurements

2. Four channel AC current (including zero-phase current) measurements

3. U-U, I-I, U-I angle measurement

4. Grid frequency measurement

5. Active, reactive, apparent power measurements

6. PF power factor measurements

7. CT wiring correctness analysis and meter wiring error identification.

8. Two elements 3P3W power meter 192 kinds of wrong wiring detection, showing vector diagram, wiring

diagram, power expression and text description

9. Three-phase voltage and current imbalance detection.

10. Phase voltage range: 5-500V, phase current range:5mA-10A.

11. Hexagon vector diagram display

12. working as a leakage current meter

13. Low-power design, the longest up to 12 hours continuous use.

14. Auto range, touch screen button, user-friendly design.

15. Data export by U-disk, convenient for data processing.


Technical Indicators

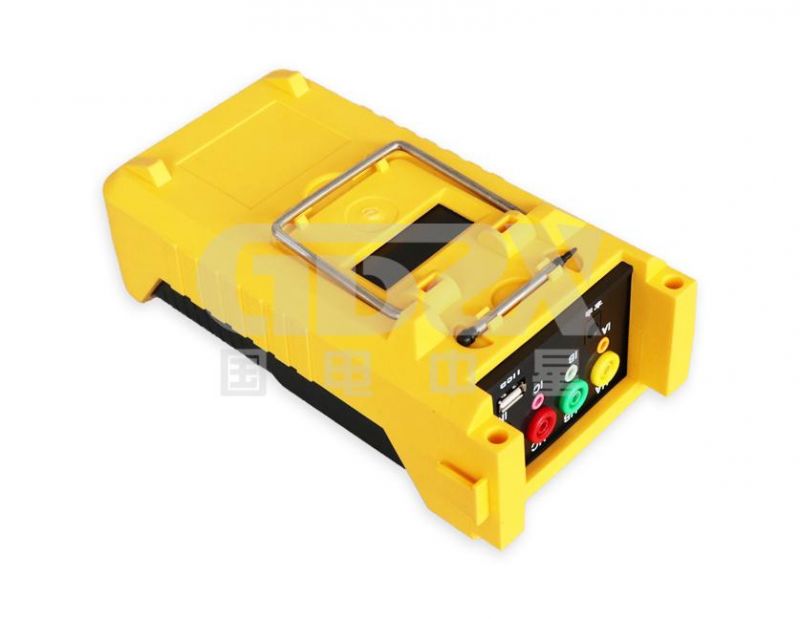

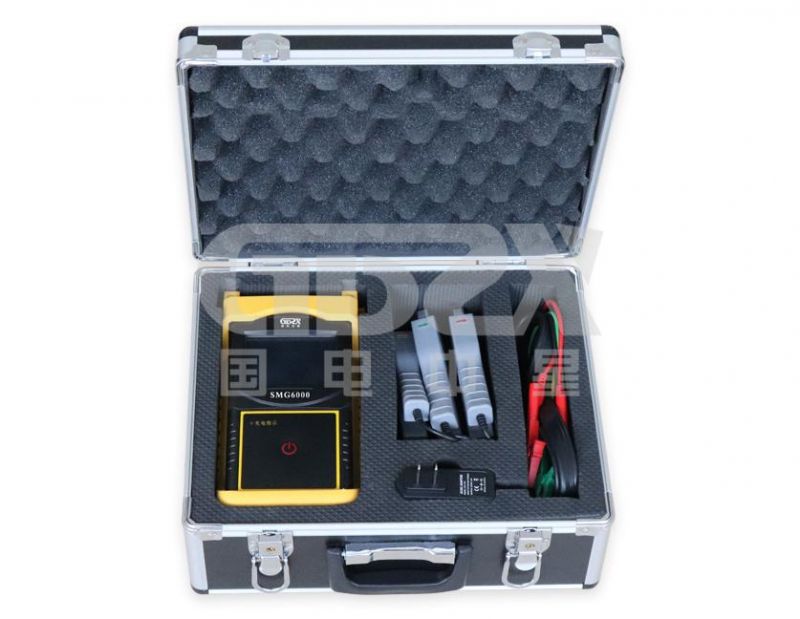

Product pictures

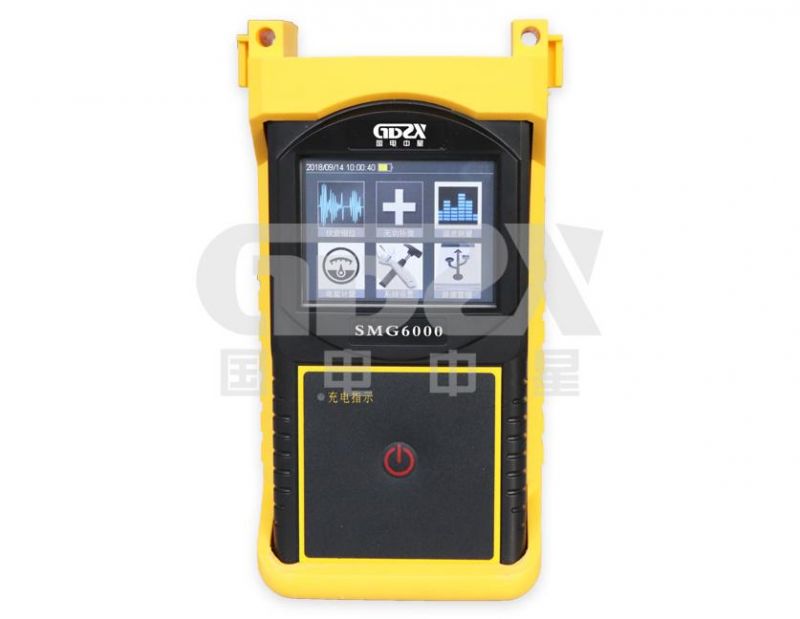

Device display

     Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

Shipping and packaging
